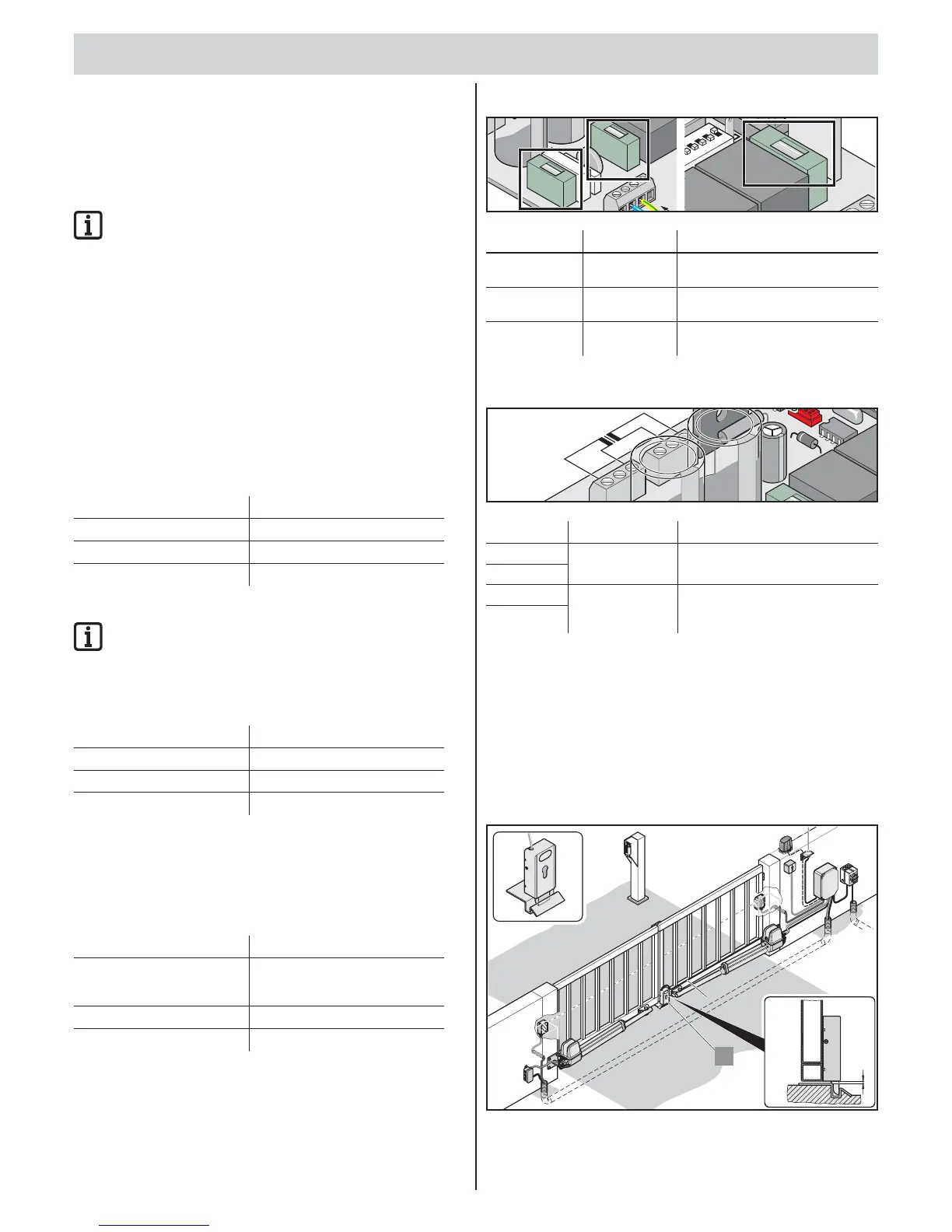

SOMMER twist 200 E - Automatic Closing Function; Fuses; Transformer Terminal; DC 24 V Electric Lock

Functions and connections
25
Automatic closing function
There are two basic variants for automatic closing.
When both variants are activated at the same time, the fully automatic
closing function has priority.
Fully automatic closing function
IMPORTANT INFORMATION!
When using the automatic close function, ensure compliance
with standard EN 12453 (e.g. install photo eye).
• The gate does not close until the set opening time has expired
completely.
• Command via button or radio control system during closing:
 The gate completely opens.
• Command via button or radio control system while the SOT expires:
 SOT starts again.
• Response to triggering the safety input (terminals 17 + 18) while
the gate opens:
 DIP 1 setting
• Response to triggering the safety input while the gate closes:
 DIP 2 setting
DIP 6
ON
TorMinal
Sets the opening time
DIP 7
OFF
DIP 8
ON
Sub-variant 1
IMPORTANT INFORMATION!
Install a switch in the photo eye supply wire for manual
interruption of automatic closing.
• Driving through photo eye:
 Gate closes after 5 seconds.
DIP 6
ON
TorMinal
Sets the opening time
DIP 7
ON
DIP 8
ON
Semi-automatic closing function
• The gate does not close until the set opening time has expired
completely.
• Command via button or radio control system while the SOT expires:
 Gate immediately closes.
DIP 6
OFF
TorMinal
Sets the opening time
(5 …255 seconds, factory setting
60 seconds)
DIP 7
ON
DIP 8
ON
Fuses
N
K
T1
A
Warnlicht
DIP
3
4
5
6
8
7
F
U
S
E
5
x2
0
T
1
,6
A
T
1
A
N
e
t
z
2
4V
E
3
4
FUSE
5x20
FUSE
5x20
Label Thickness Description
Power 1.6 A,
slow-acting
Mains supply line AC 230 V
24 V 1 A, slow-acting Power supply output DC 24 V
Terminals 9 + 10
Warning light 1 A, slow-acting Warning light output DC 24 V
Terminal 11 + 12
Transformer terminal
230
V
24
V
21
19
23
24
FU
SE
Terminal Description Description
19 230 V Mains supply line (primary winding),
brown
21
23 24 V 24 V input (secondary winding),
supply line to control unit, violet
24
DC 24 V electric lock
 Reset control unit before assembly.
 After installation, reset the “Gate CLOSE” end position.
 Uphold the distance between lock and strike: min. 4 mm and
max. 6 mm.
 Note the polarity of the electric lock.
 Install lock in a perpendicular position, otherwise it may become
jammed during closing or opening.
