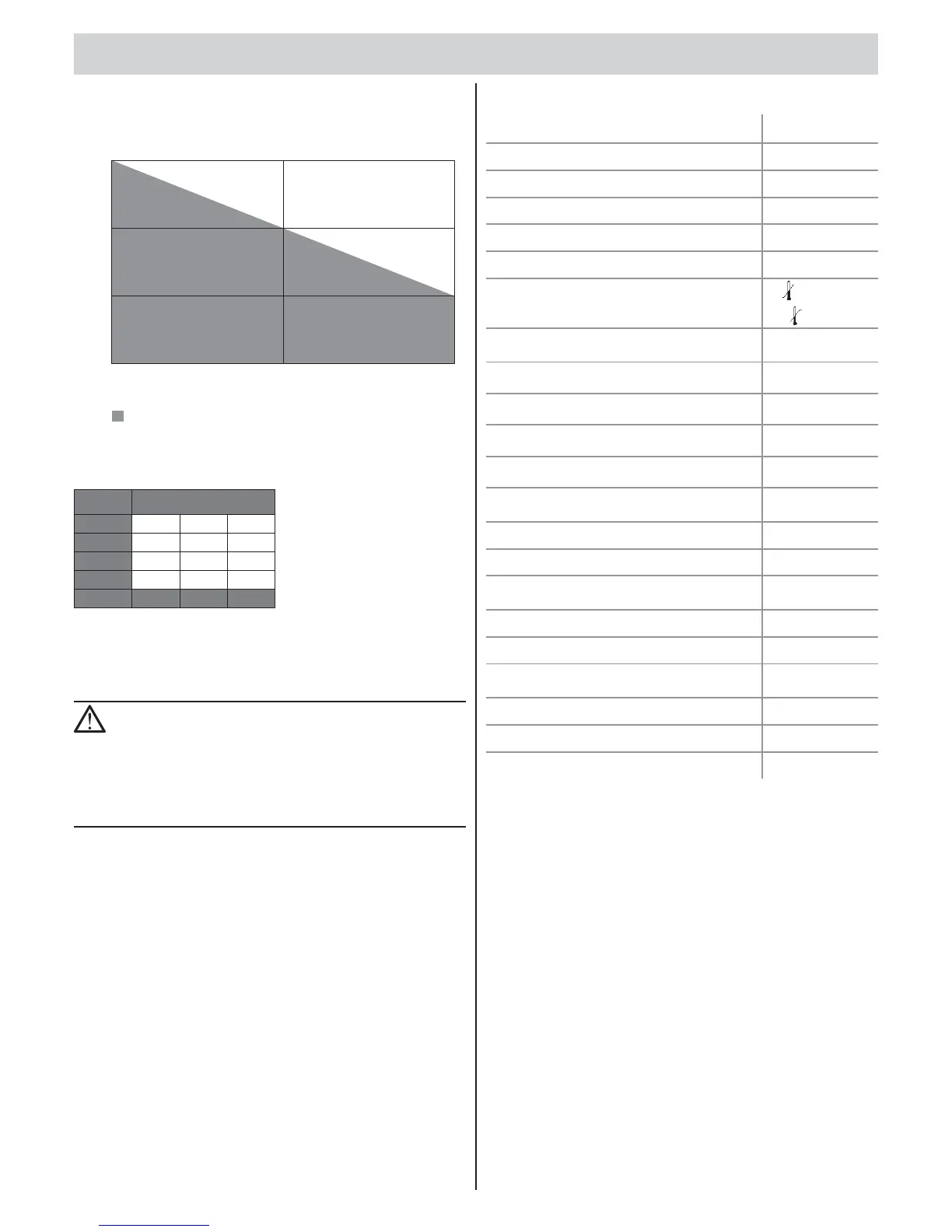

General Information
5
Permitted gate leaf dimensions
• Gate inclination: 0 %
300
200
250
100
1,5 2
2,5
1-leaf and 2-leaf
Weight (kg)
Length (m)
Fill table
Height (m) Fill (%)
2 70 60 50
1.5 90 80 70
1 100 100 100
0.5 100 100 100
Length (m) 1.5 2 2.5
Specifi cations valid for B dimensions 260 mm and A dimensions 80 mm;
recorded values for gate panel thickness 50 mm and centre rotation point,
related to the maximum given gate weight.
With lift gates
CAUTION!
Risk of injury from uncontrolled shutting in unlocked state
with lifting gates which are not weight-balanced.
• Only use weight-balanced lifting gates.
• Only use lifting gates with special gate fi ttings:
Gate bracket 3129V001 (left gate leaf),
Gate bracket 3129V003 (right gate leaf).
• Weight: max. 120 kg
• Length: max. 2.5 m
• Gate inclination: max. 10 %
Technical data
twist 200 E
Mains voltage 220–240 V AC
Rated frequency 50/60 Hz
Storage locations in radio receiver 112
Operating time S3 = 40 %
travel length | movement range 390 mm
Operating temperature
–30 °C to
+70 °C
Emission value according to operating
environment
47 dBA
IP protection class control unit IP65
IP protection class operator IP44
IP-code I
Max. feed speed 16.5 mm/s
Max. traction and pressure force
per leaf
2000 N
Rated torque per leaf 660 N
Maximum power consumption per leaf 140 W
Maximum current consumption
per leaf
0.8 A
Rated power consumption per leaf 75 W
Rated current consumption per leaf 0.45 A
Power consumption on power-saving
mode
2.9 W
Maximum gate weight per leaf * 300 kg
Maximum leaf length ** 2.5 m
Gate inclination *** 10 %
* With max. 1.5 m gate leaf width,1-leaf system.
** At max. 200 kg
*** See left-hand column
