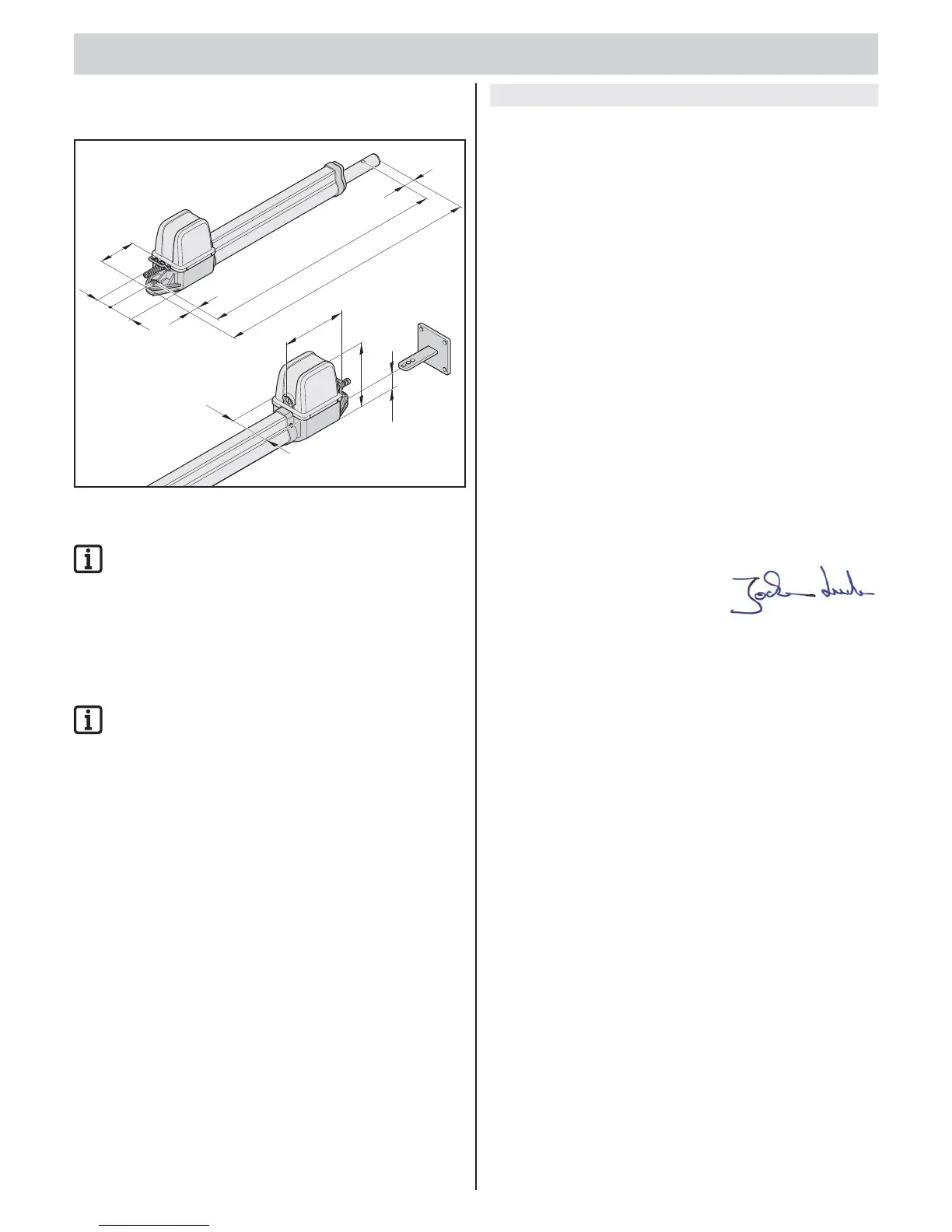

Cmin. 670–Cmax. 1060
52
min. 710–max. 1100
53
53
23
17
40
Functional description
IMPORTANT INFORMATION!
The “Gate OPEN” + “Gate CLOSE” end positions are
set by internal limit switches in the operator and detected
during operation.
The gate leaf is opened and closed by retracting and extending the gate
operator. When the defi ned end positions are reached, the operator
is automatically switched off by the limit switch.
Closing the gate
IMPORTANT INFORMATION!
A mechanical stop at the “Gate OPEN” and “Gate CLOSE”
end position is absolutely essential.
An electric lock can be used as an additional lock.
The gate leaf does not require a lock, because the operator is self-locking.
The gate cannot be pushed open manually without damaging the operator
or the fi ttings.
Wireless actuation
The operator can be operated with the supplied transmitter.
The transmitter must be programmed for the radio receiver.
Safety facilities
The control unit has an automatic force monitor.
The necessary force is programmed during a learning run.
When the operator requires a higher force than the one programmed,
the operator stops and reverses.
Various safety devices can be connected to the control unit, see chapter
“Functions and connections”.
Examples:
• Photo eye
• Safety contact strip with separate evaluation unit
EN Remote control / Radio receiver
EU Conformity Declaration
Messrs
SOMMER Antriebs- und Funktechnik GmbH
Hans-Böckler-Straße 21-27
D-73230 Kirchheim/Teck
declares herewith that the product designated below complies with
the relevant fundamental requirements as per Article 3 of the R&TTE
Directive 1999/5/EG, insofar as the product is used correctly, and that the
following standards apply:
Product: RF Remote Control for Doors & Gates
Type: RM01-868, RM02-868-2, RM02-868-2-TIGA,
RM03-868-4, RM04-868-2, RM08-868-2,
RM01-434, RM02-434-2, RM03-434-4, RM04-434-2,
RX04-RM02-868-2-wi6, RX04-RM02-868-2-TT,
RX04-RM02-434-2, RX04-RM02-434-2-TT,
RX01-RM02-868-2/4, RX01-RM02-434-4,
TX02-868-2, TX02-868-2-UP, TX03-868-4, TX03-868-4-
XP, TX35,-868-1/5, TX04-868- 10/30, TX08-868-4,
TX02-434-2, TX03-434-4-XP, TX04-434-10 TX01-868,
TX01-434, TX45-868-10, TX-45-434-10, RM10-868-1
The relevant guidelines and standards are:
• EN 60950-1
• EN 300 220-1
• EN 300 220 -2
• EN 301 489-1
• EN 301 489-3
Kirchheim/Teck, 07.01.2014
Jochen Lude
Responsible for documents
