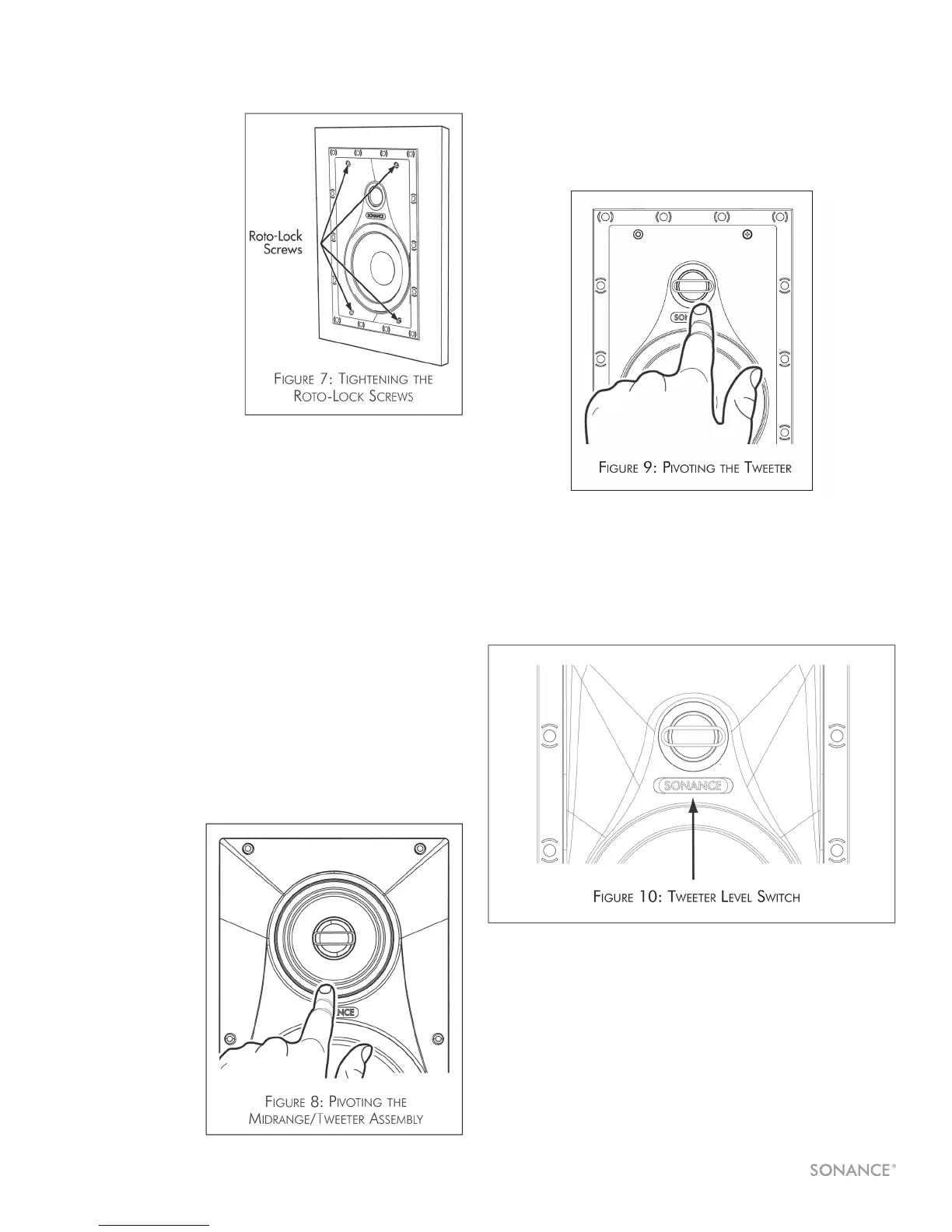

5. Tighten the screws
on the front of the
speaker baffle. The Roto-
Lock toggle feet will
position and begin
clamping the speaker
(see Figure 7).
resistance on the screws
the speaker has been
on the large rectangle
speakers and four on
the small and medium.
IMPORTANT: ALWAYS USE
LOW-TORQUE SETTINGS;
NEVER OVERTIGHTEN.
FOR A PROPER FIT.
magnets on the speaker frame. Place the grille against the
Speaker Adjustments
Pivoting Midrange/Tweeter Assembly
to the ring around
the outside edge of
the midrange cone,
as shown in Figure 8.
Take care not to touch
the midrange cone
itself.
VP48, VP68 and VP88 Tweeter Level Switch
VP48, VP68 and VP88 (see
Figure 10). To increase the output from the tweeter slide the switch
the tweeter slide the switch towards the - mark under the switch.
outside edge of the tweeter, as shown in Figure 9. Make sure not to
