7

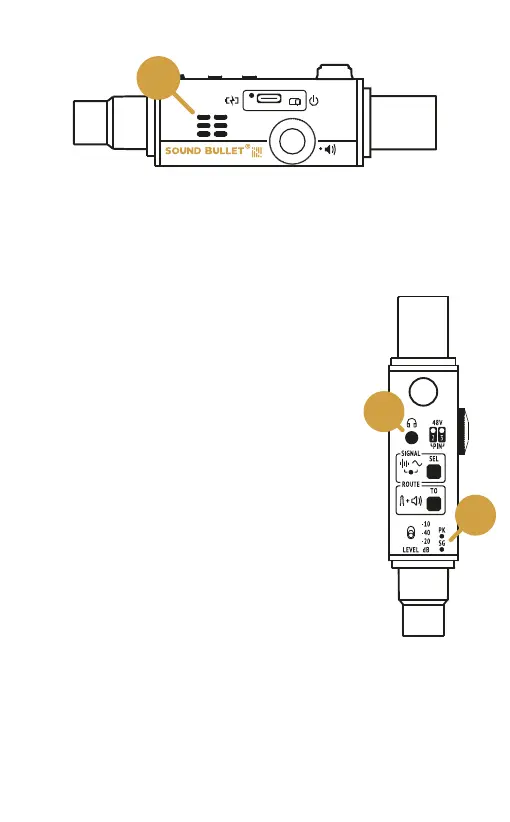

The internal speaker (5) reproduces signals present
on the input XLR or the 1/4” jack. The speaker and
headphones output (6) share the same
internal amplier whose output level is
adjusted by the side thumbwheel. If a
3.5mm jack (headphones) is plugged
into the headphone port, the speaker
mutes and its output is routed to the
headphones.
Routing the internal generator to the 1/4”
jack (by pressing TO) will also route it to
the speaker and headphones.
Two LEDs (7) will illuminate according to
the RMS amplitude of the signal present
on the input XLR. The SG LED is lit when the signal
exceeds -20 dBu RMS, and the PK LED lights up
when the signal exceeds +10 dBu.
5
6
7
Speaker/headphones output
XLR Input Metering
