An XLR cable can be plugged into either end of the
Sound Bullet to conduct a continuity test of the 3 XLR
cores (8).
To enter (and exit) this function, hold the SEL button for
2 seconds. The Sound Bullet will automatically cycle
through the pins. To select the pins manually, simply
press SEL, and press TO if you wish to engage the
automatic cycle again.

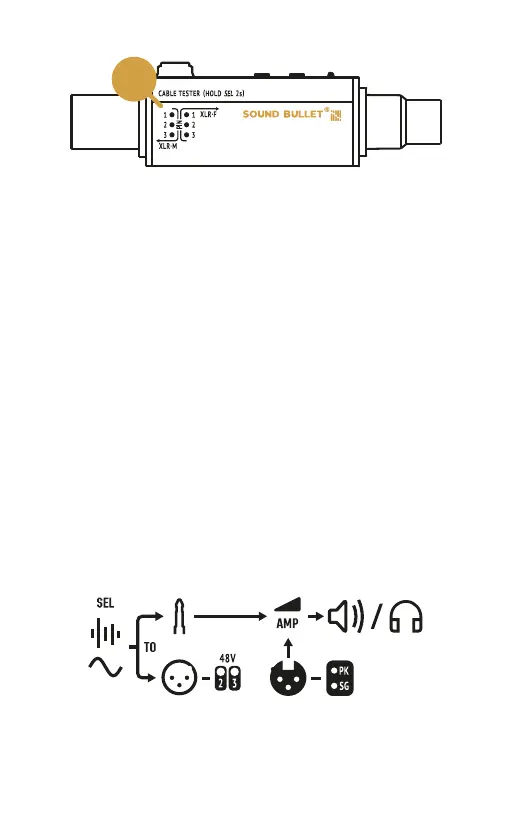

The following diagram sums up the Sound Bullet’s
internal signal ow:
XLR Cable Tester
Conceptual Diagram
