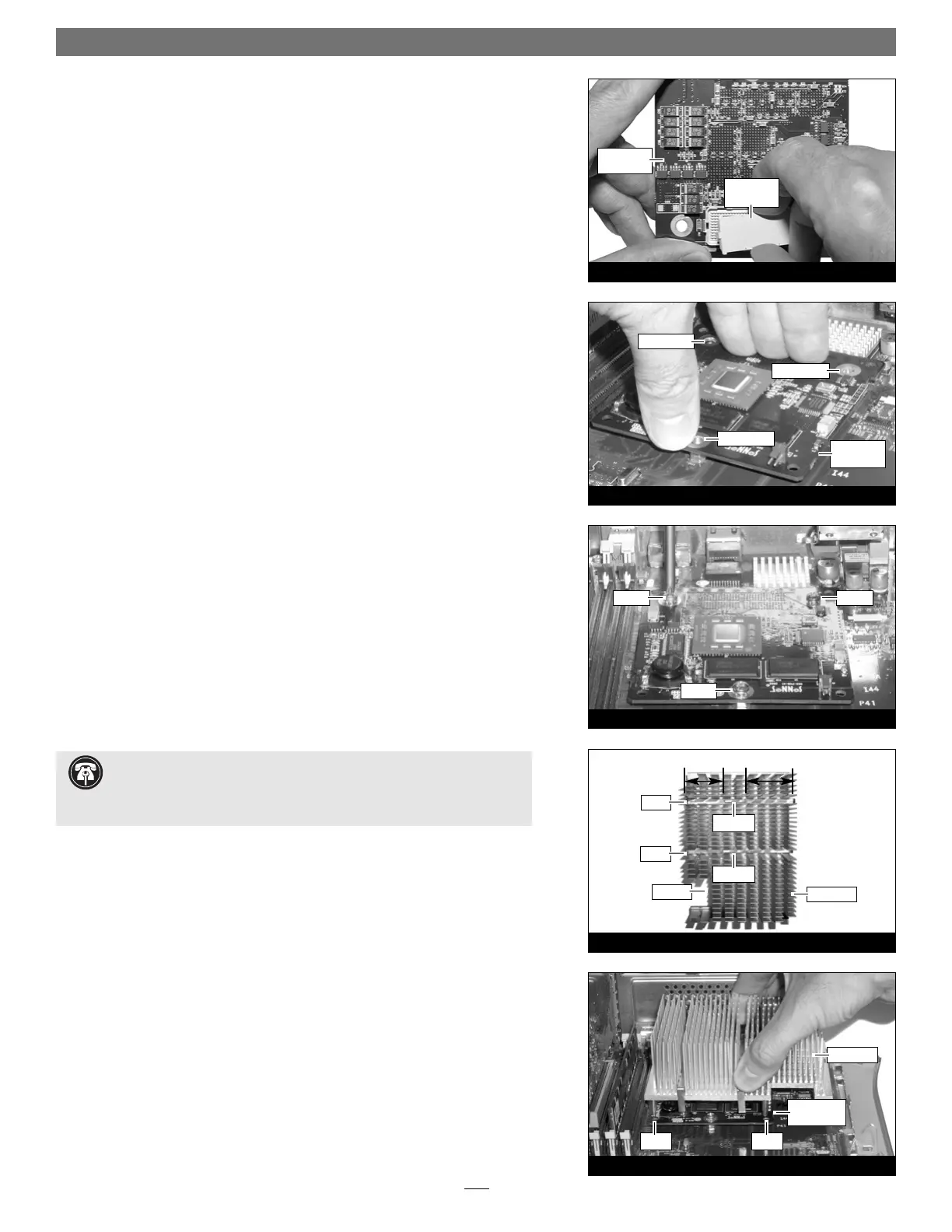

3. Hold the Encore/ST card with its connector facing up (Figure 29). Carefully
remove the cap covering the connector and place it on the original processor
card’s connector, then place the original processor card into the anti-static
package and store it in a safe place.
4. Align the Encore/ST card’s three screw holes with the three threaded posts
on the logic board, then set the card gently on top of the posts (Figure 30).
Make sure the connectors are lined up, then, grasping the card by its edges,
gently press it straight down until the connectors snap together. Verify the
connectors are completely coupled by gently pulling up on the edges of the
Encore/ST board; the board should remain firmly in place.
5. Snugly secure the Encore/ST card to the logic board with the three screws
you removed previously; do not overtighten the screws (Figure 31).
Reattach Heat Sink
1. Position the heat sink clips properly on the heat sink (Figure 32). Examine
the clips and note the short and long sections, and the dimple. Place each
clip so its short section is closest to you (on the notched side of the heat
sink). Please note, this may be opposite of how the clips were originally
installed.
2. Grasping the heat sink with the notch facing you, guide the heat sink’s posts
into the holes on the Encore/ST card; make sure the clips do not get caught
between the card and the heat sink (Figure 33). Verify that the heat sink is
resting flat and level across the top of the Encore/ST card.
Installation—Digital Audio Models
8
Figure 31
Figure 30
screw
screw screw
Encore/ST
card
screw hole
screw hole
screw hole
Support Note: The following steps address the installation of your
system’s heat sink. Please note, only the single processor heat sink is pic-
tured, but the procedure is identical for the dual processor heat sink. Please also
note, that your heat sink may differ from what is pictured.
Figure 33
Encore/ST
card
hole
hole
heat sink
Figure 32
dimple
dimple
clip
notch
clip
short
section
long
section
heat sink
Figure 29
protective
cap
Encore/ST
card
