INTELLIGENT Control Panel Manual v202205
1. PURPOSE
The INTELLIGENT panel is designed to control the operation of water heaters and air curtains. The controller pilots the functioning
of actuators/valves and fan speed of the heater in manual and automatic modes depending on the set room temperature. The
fan gear automatically changes to a lower one when reaching the set temperature in the room. The INTELLIGENT panel has the
possibility of using a programmed weekly temperature schedule and communicating with BMS systems in the ModBUS RTU
protocol.
The INTELLIGENT panel is compatible with the Tuya Smart mobile app, which allows the user to control and create settings via
an iOS or Android smartphone. The app's control function requires a WiFi network at the controller's location.
The possible connection of an external NTC temperature sensor, allows to extend the cable up to 20 mb.
The device does not include: the main switch of the device, fuses and power cable
One INTELLIGENT control panel can operate 2 HEATER CONDENS device.
For HEATER CONDENS CR ONE models, up to 4 units can be operated.
for HEATER CONDENS CR MAX models possibility to operate 1 unit.
for GUARD models possibility of operating up to 2 units.
1.1. SPECIFICATIONS
Power supply 230VAC/50Hz
Panel panel with buttons/ LCD display
Temperature control range +5 ÷ +40°C
RPM adjustment range 3 steps
Operating temperature range 0 ÷ +50°C
Storage temperature -10 ÷ +60°C
Temperature sensor built-in/external NTC (option)
IP 20
Mounting surface mounted
Housing ABS & Acrylic
Weekly programmer ON: 5 days+2 days, OFF.

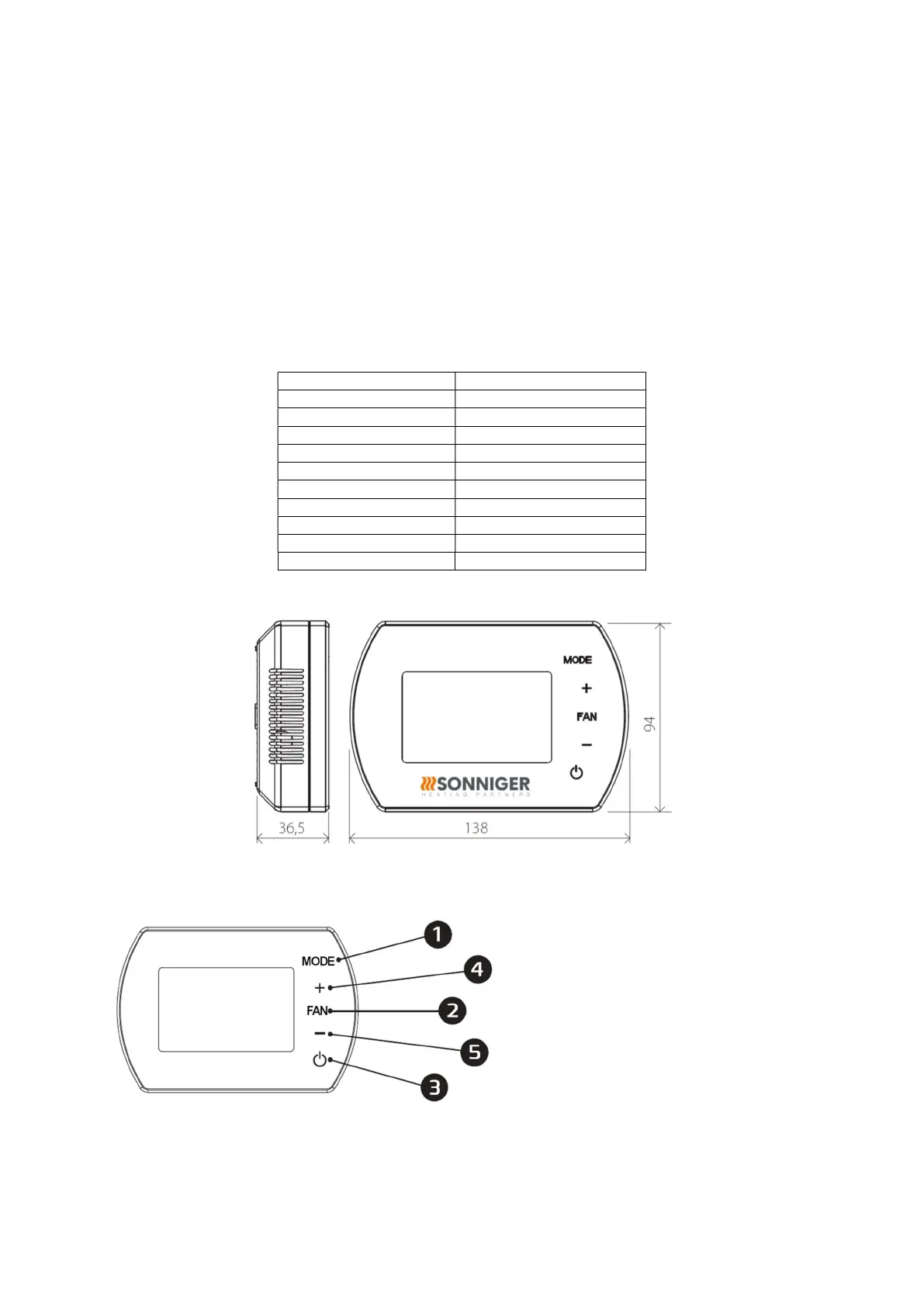

1.2. DIMENSIONS
2. CONTROL PANEL INTELLIGENT
2.1. DESCRIPTION OF BUTTONS
1. MODE - operation mode
2. FAN - fan operation speed
3. ON/OFF - switch
4. + - increase the set temperature
5. - - decrease the set temperature
