Grill Assembly
8

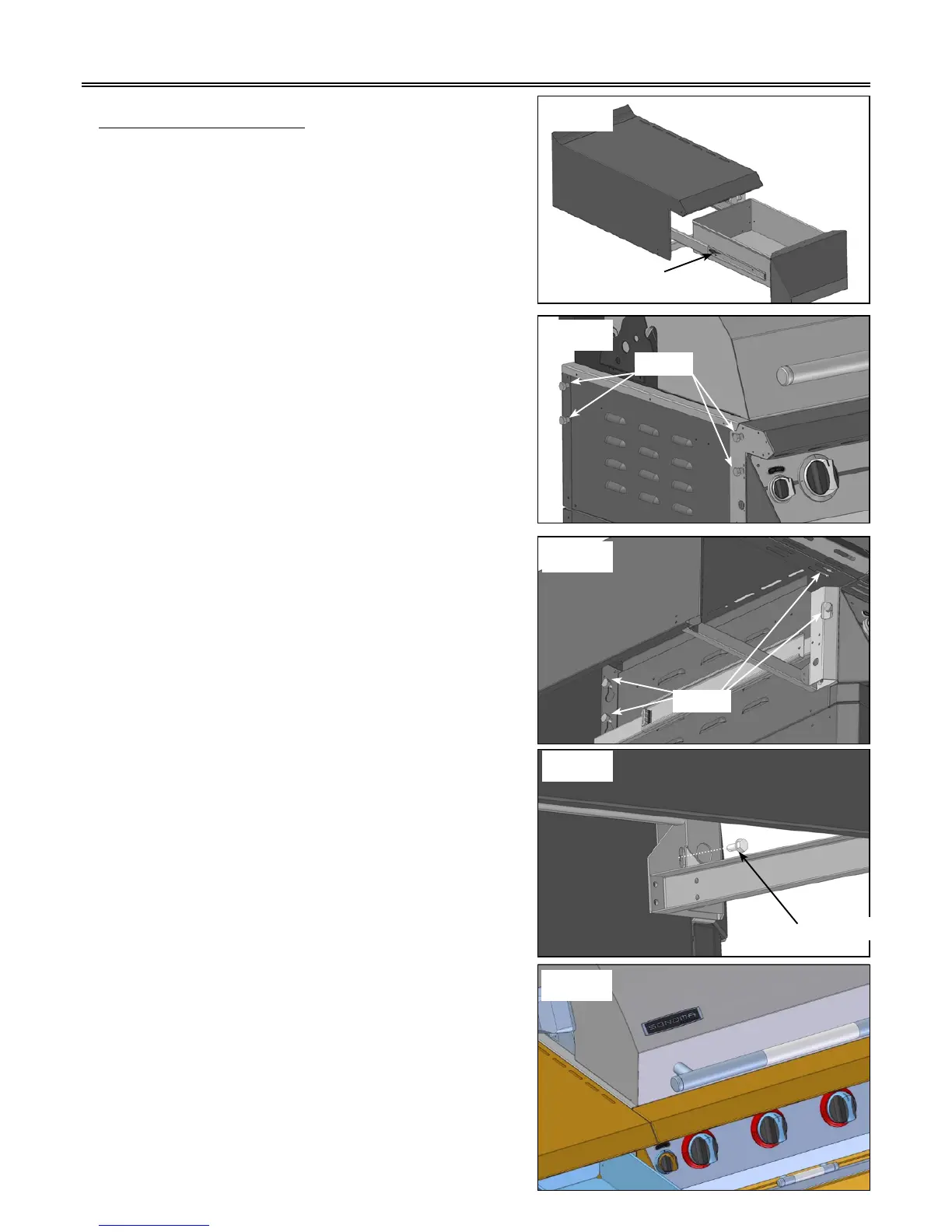

LEFT SHELF ASSEMBLY
1. Pull the drawer all the way out, and press the black
plastic drawer slide release levers to remove the
drawer. (See Fig. 1)
2. Loosen the four hex-head bolts on the side of the
grill approximately 1/4 in. (See Fig. 2)
3. Attach the left shelf by inserting the four bolt heads
into the holes on the left shelf. Tighten the bolts
securely with a 1/2 in. wrench. (See Fig. 3)
4. Install a self-tapping screw through the slotted hole
on the front bottom of the side shelf to the left side
of the grill. (See Fig. 4)
5. Re-install the drawer into the shelf. Be sure to line
up the drawer slides as you re-insert the drawer
back into the shelf. ( (See Fig. 5)
Fig. 1
Fig. 2
Fig. 3
Bolts
Fig. 4
Self tapping screw
Fig. 5
Bolts
release lever
