Note: The Playbar’s digital audio IN port and the optical cable are ‘D-shaped’—make sure the connector
aligns correctly into the port.
Connect the power cord
Attach the power cord and plug in the Playbar. Push the power cord in firmly until it is flush with the surface.
If you don’t have the app, download it from the app store. You’ll use it to set up and control your Sonos
system. See Getting started
.
Wall mount
You can mount Playbar to a wall above or below a wall-mounted TV. Use the Playbar wall mount kit. You can
buy it on www.sonos.com
. Follow the instructions in the kit.
Caution: Don’t use any other hardware to mount the Playbar.
Guidelines
• When mounting below a TV, keep 1" (25mm) space (minimum) between Playbar and TV.
• When mounting above a TV, keep 2" (50mm) space (minimum) between Playbar and TV.
• Preserve audio quality: make sure the connector panel faces away from the TV.
• Keep both ends of the Playbar at least 1 ft. (30cm) from a wall or other obstruction.
Note: Connect the power and audio cables to the Playbar before mounting to the wall.
IMPORTANT: Remove the protective caps from
each end of the optical audio cable before
inserting.

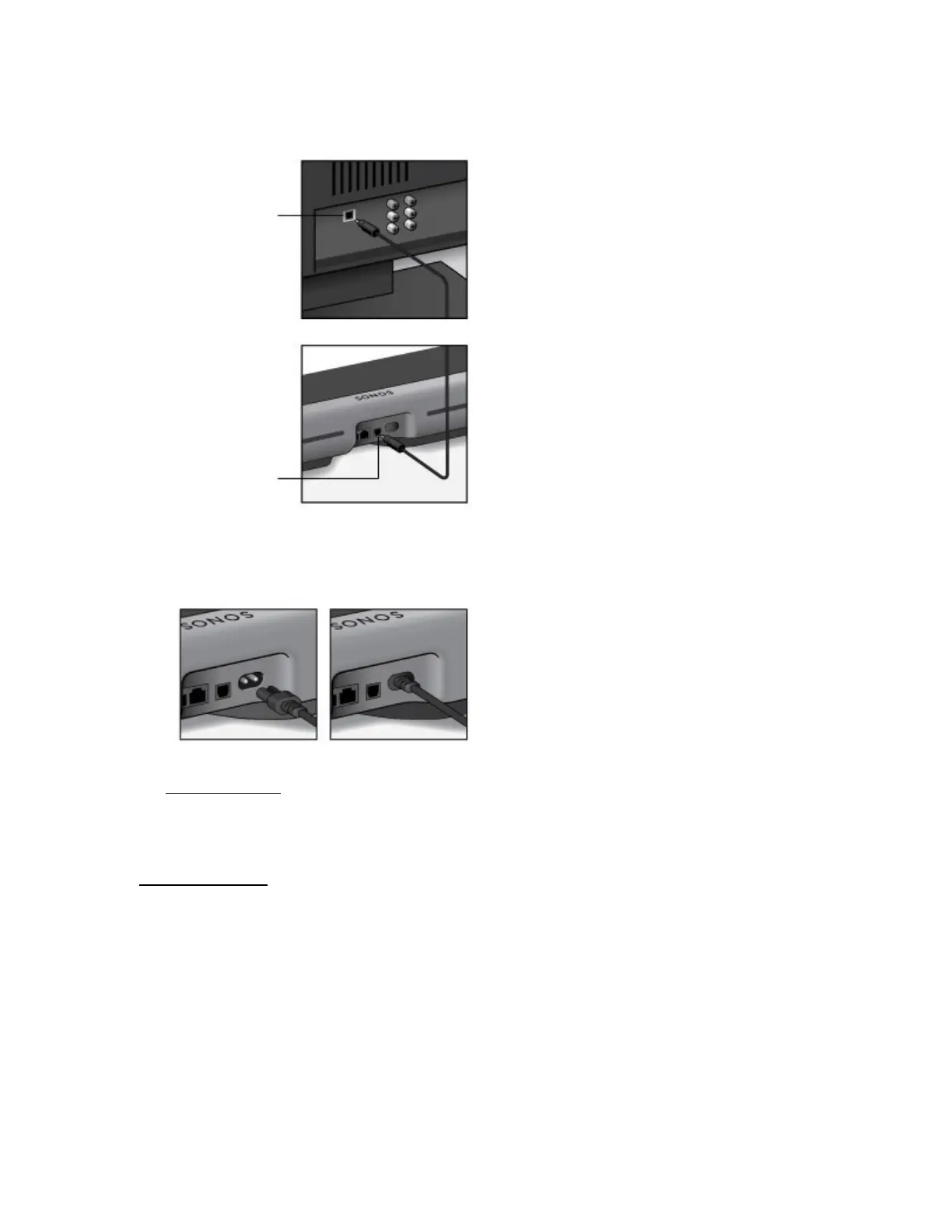

TV’s Digital Audio
OUT (optical)
Playbar’s Digital
Audio IN (optical)

Sonos SUB Specifications

General

Subwoofer type	Active subwoofer
Wireless subwoofer	Yes
Subwoofer frequency range	- Hz
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Product color	Black
Wireless standard	802.11b/g

Weight and Dimensions

Subwoofer depth	158 mm
Subwoofer width	402 mm
Subwoofer height	380 mm
Subwoofer weight	16000 g
