Commissioning from the storage mode
When in storage mode, the heat meter is not counting and the display shows "Disabled".
The storage mode is active as long as the meter is not sealed "Seal".
In the storage mode, the transition to "Config" menu is made with a short press on the orange navigation button. Another short press gives access to the whole se-
quence of the "Normal" mode.

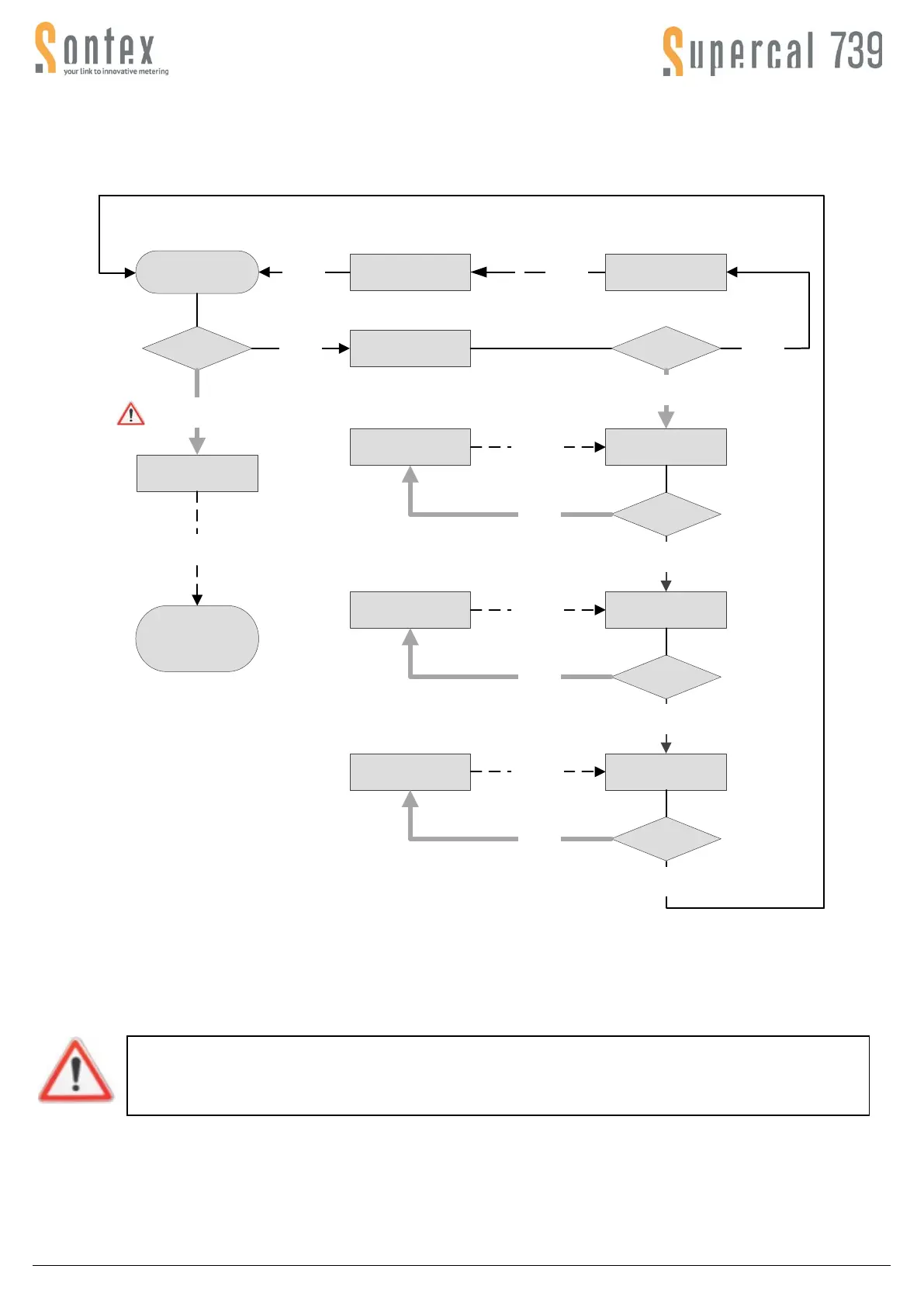

DISABLED
PUSH
SEAL
Long
pression
Normal
Mode
Automatic
change
ConFiG
Short
pression
PUSH
Cold.pipe
Pression
longue
PUSH
CHANGE
Long
pression
Automatic
change
000000.01 MWh
Short
pression
PUSH
CHANGE
Long
pression
Automatic
change
000000.01 m
3
Short
pression
PUSH
CHANGE
Long
pression
Automatic
change
Short
pression
Cold.pipe
Short
pression
001234.56 MWh
EnergyServiceCounting OFF
Short
pression
//
Short
Pression
In the "Config" menu (optionally available), a long press will change the settings below:
• Flow meter mounting position in the installation. Hot (HOT PIPE) or cold side (COLD PIPE).
• Energy unit (0.1kWh, 1 kWh, 0.001MWh, 0.01MWh, 0.001GJ and 0.01GJ).
• Volume unit (0.01 m3 and 0.001m3).
In the "Config" menu any inaction (i.e. with no pressure on the navigation button) lasting 3 minutes causes the automatic exit and returns to "Disabled". If changes
were made in the "Config" menu, the data remain stored.
When "Disabled" is displayed, a long press on the navigation button validates the parameters of the flow meter. The indication
"Seal" flashes four times on the display and it changes to "Normal" counting mode.
From that moment, the storage mode ("Disabled" and "Config") is not accessible anymore.
