Sony Ericsson Z1 - Page 15

Component Replacement (elect)
1246-2438 Rev 1
 Sony Ericsson Mobile Communications AB – Company Internal
15(17)
Repair Actions: Additional Repair Info
17

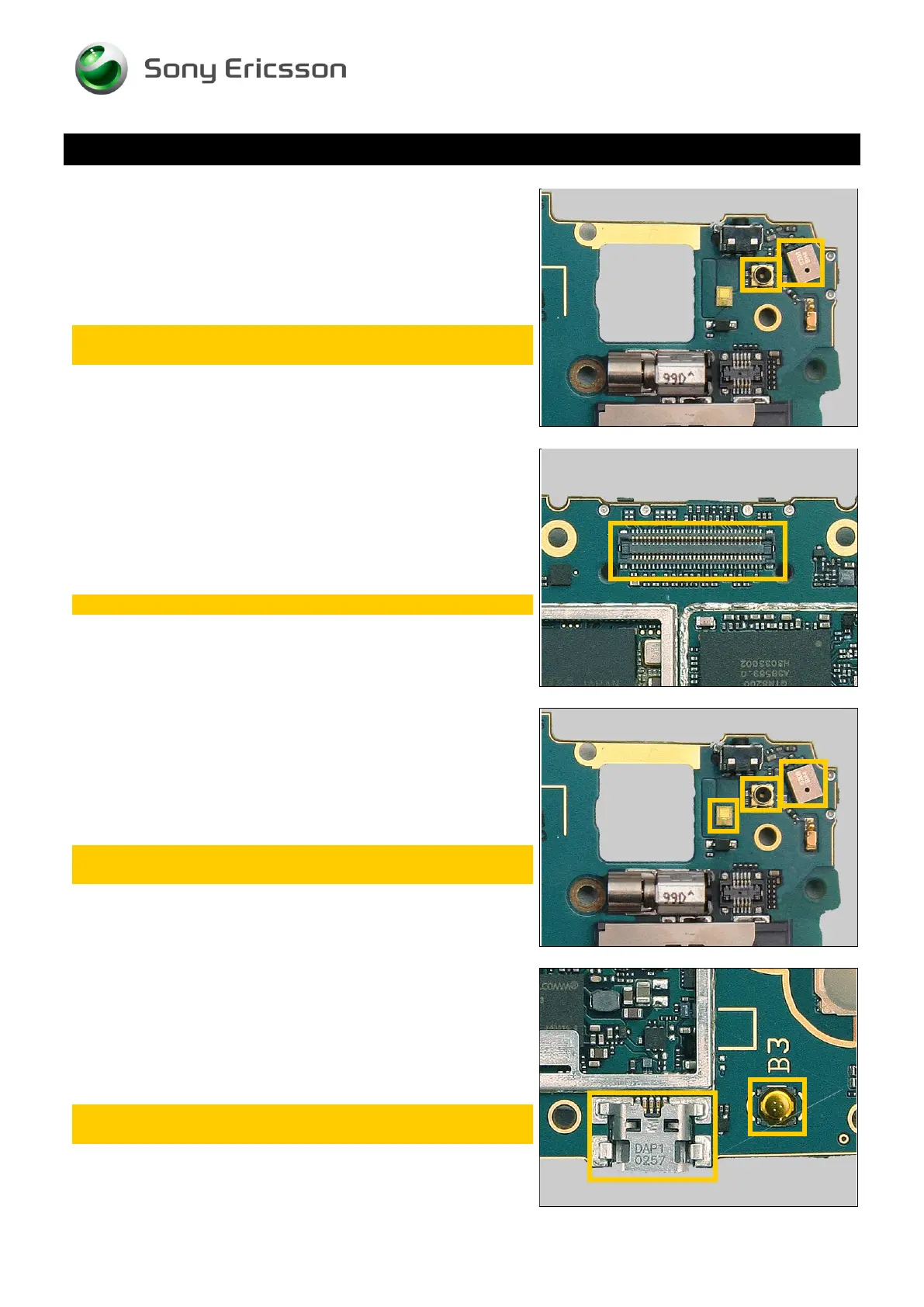

X2501
Protect the Microphone and the Coax connector with
capton tape!
18
Z4300, Z4301, Z4302
Protect the BtB connector with capton tape!
19
B5500, V4400, X2500
Protect the LED white, Microphone and the Coax
connector with capton tape!
20
S4805, X5200
Protect the USB connector and the input switch with
capton tape!
