Sony 300PF - Specifications

120 Appendix
Appendix

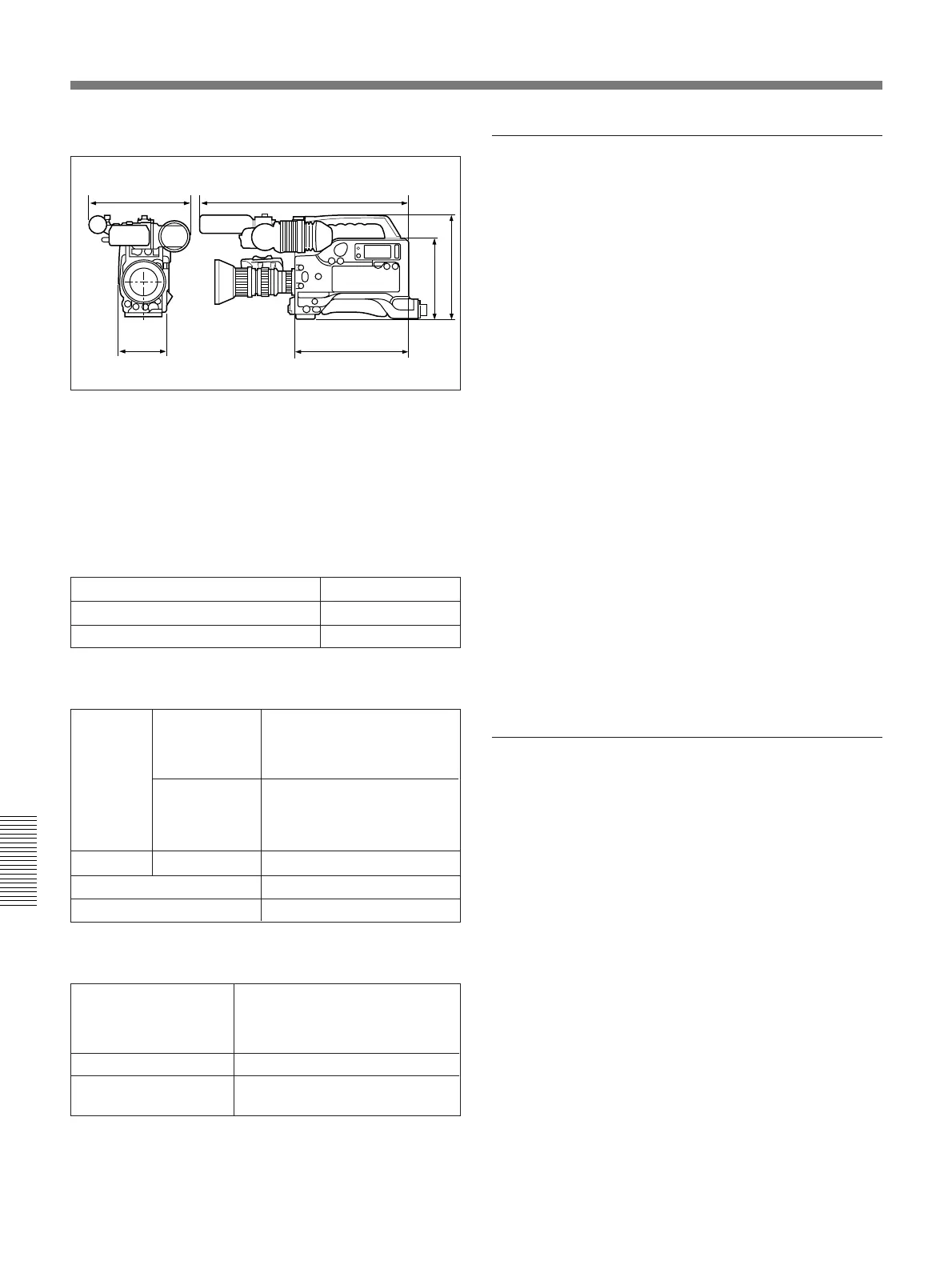

External dimensions in millimeters (inches)
Tape transport system
Tape speed Approx. 28.2 mm/s
Recording/playback time (using PDV-184ME)
Max. 184 minutes
Fast forward/rewind time (using PDV-184ME)
Max. 12 minutes
Usable cassettes
Video system (at playback with the DSR-85/
85P)
Audio system (at playback with the DSR-85/
85P)
Specifications
VCL-714BXA Zoom Lens
Focal length 7.5 to 105 mm
Zoom Manual or power, selectable; zoom
ratio: ×14
Maximum aperture
1:1.4
Iris Manual or automatic, selectable; f/
1.4 to f/16 and C (closed)
Subject area (at 1.1 m (4 feet))
Wide angle: 880 × 660 mm
(34
3
/4 × 26 inches)
Telephoto: 63 × 47 mm
(2
1
/2 × 1
7
/8 inches)
Focusing range Infinity to 1.1 m
Filter attachment threads
72 mm dia., 0.75 mm pitch (on
lens)
86 mm dia., 1 mm pitch (on lens
hood)
Mounting Sony
1
/2-inch bayonet mount
Mass 1.1 kg approx. (2 lb 6 oz)
(including lens hood)
External dimensions
110 × 186 mm (diameter × length)
(4
3
/8 × 7
3
/8 inches) (with lens
hood, focused at infinity)
DXF-701WS/701WSCE Viewfinder
Picture tube 1.5-inch monochrome
Indicators REC/TALLY (×2), BATT,
SHUTTER, GAIN UP
Resolution 600 TV lines
Power supply 12 V DC
Power consumption
2.1 W
Mass 660 g approx. (1 lb 7 oz)
Maximum external dimensions
236 (W) × 85 (H) × 219 (D) mm
(9
3
/8 × 3
3
/8 × 8
5
/8 inches)
242 (9
5
/
8
) 534 (21
1
/
8
)
270 (10
3
/
4
)
121
(4
7
/
8
)
247 (9
3
/
4
)
192 (7
5
/
8
)
Model name
Size
PDV-64ME/94ME/124ME/184ME
Standard size
PDV-12ME/22ME/32ME/40ME
Mini size
K-factor (K2T, KPB)
Bandwidth DSR-300: 30 Hz to 5.0 MHz
±1.0 dB
DSR-300P: 25 Hz to 5.5 MHz
+1.0/–2.0 dB
Luminance (Y)
Chrominance
(R–Y/B–Y)
DSR-300: 30 Hz to 1.5 MHz
+1.0/–5.0 dB
DSR-300P: 25 Hz to 2.0 MHz
+1.0/–2.0 dB
S/N ratio Luminance Min. 55 dB
Max. 2%
Y/C time delay Max. 30 nsec.
Frequency response
2-channel mode: 20 Hz to 20 kHz
+0.5/–1.0 dB
4-channel mode: 20 Hz to 14.5
kHz +0.5/–1.0 dB
Dynamic range
Min. 80 dB
Distortion (THD) (1 kHz,
reference level, 48 kHz)
Max. 0.08%
