Chapter 2 Fitting and Connections
42 Chapter 2 Fitting and Connections

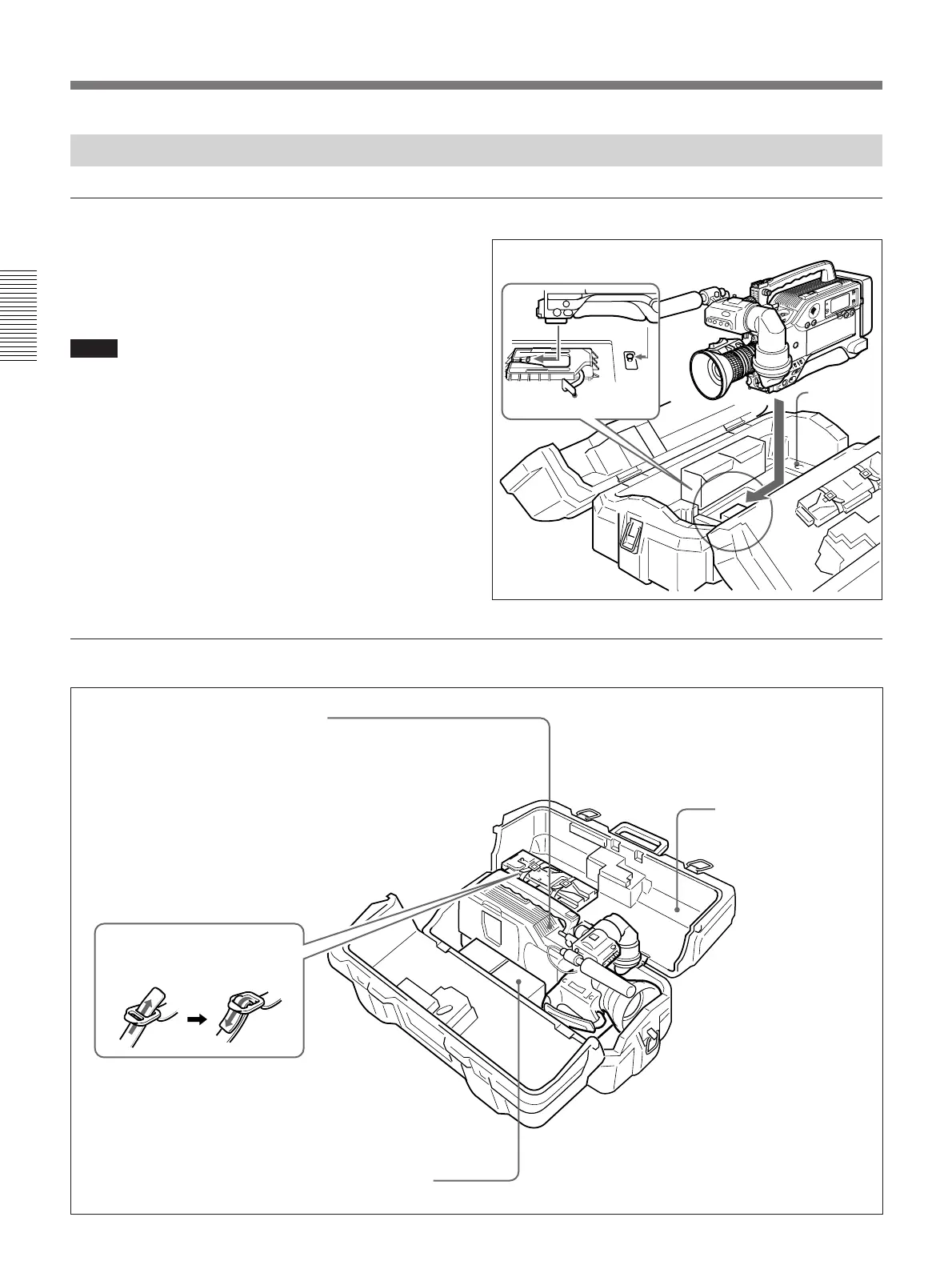

Align the camcorder with the base of the
carrying case.
Base
VCT-U14 Tripod Adaptor
Fasten straps.
LC-421 Carrying
Case
Cassettes, camera cables, etc.
Using Accessories
Using the LC-421 Carrying Case
Stowing the camcorder
Align the camcorder with the base of the case, and
slide the camcorder in forward.
Checking that the pin at the rear engages correctly,
push forward until it locks into place.
Notes
•Turn the viewfinder downward, slide it fully rearward
and to the left, then fix before stowing.
•When an optional microphone (ECM-670/672, C-74,
etc.) is attached, loosen the microphone fixing
screws, move the microphone to the lowest position,
and fix before stowing.
Lever
Example of fully-stowed carrying case
DSR-300/300P Camcorder
This can be stored with the following system
component fitted.
• DXF-701WS/701WSCE Viewfinder
• ECM-670/672/C-74 Microphone
• Zoom lens (VCL-714BXA etc.)
(Largest lens which can be stowed is
Canon YH18 × 6.7KRS.)
• CAC-12 Microphone Holder
To Next Page
