Chapter 1 Overview
Chapter 1 Overview 15

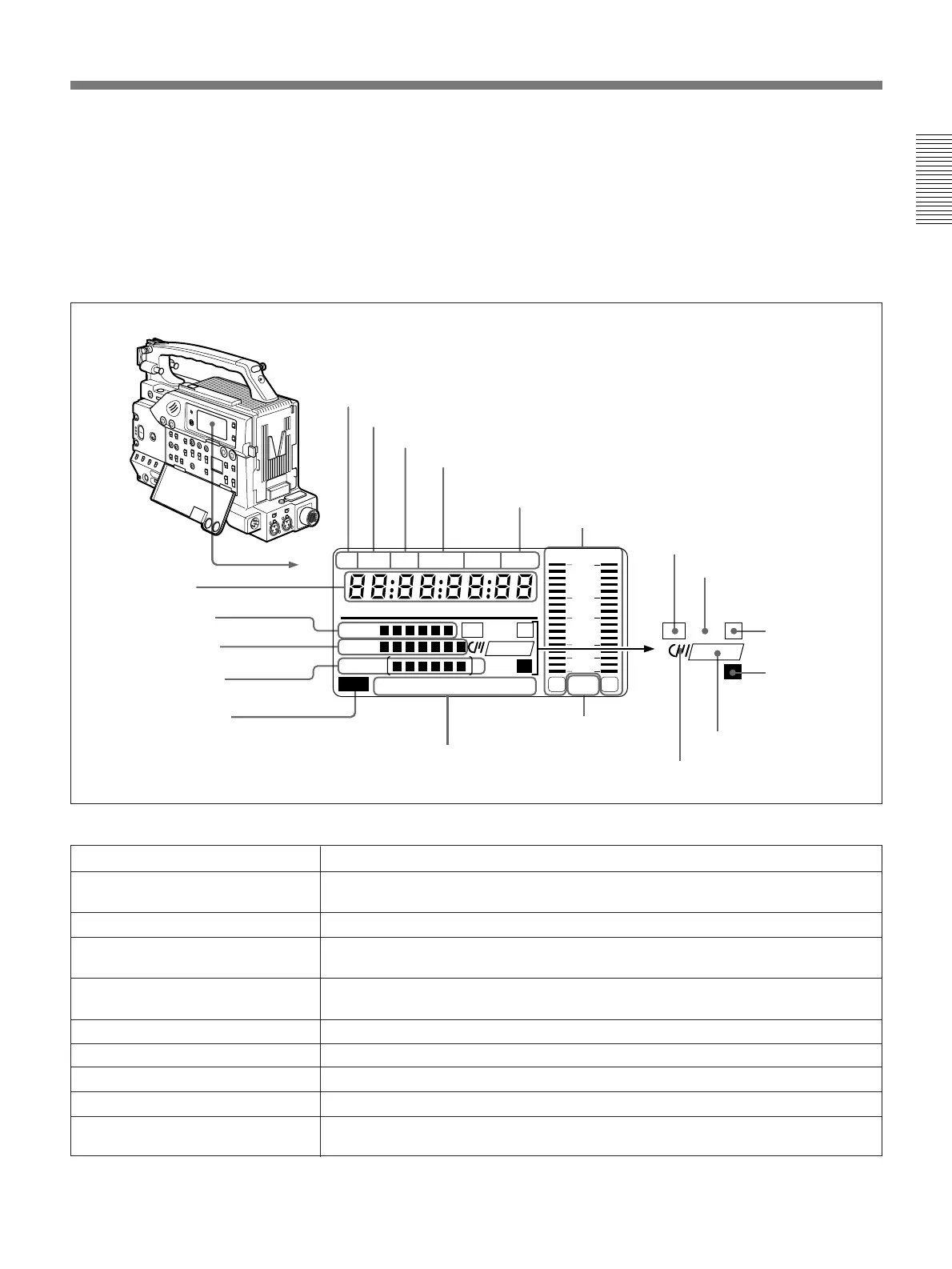

Indications in the display window
7 AUDIO LEVEL (CH-1/CH-2) (audio recording
level adjustments for channels 1 and 2) knobs
When the AUDIO SELECT (CH-1/CH-2) switches
(4 on page 19) are set to MANUAL, these knobs
adjust the audio levels being recorded on channels 1
and 2.
The audio levels are indicated in the display window 8 .
For details, see “ 8 Display window”.
8 Display window
Shows the following items. Use the LIGHT switch (5
on page 14) to light up the display window.
∞
H MIN SEC FRM
1
dB
2
PB DATE NDF EXT-LK HOLD
CLIP
TAPE
BATT
DIAG
EF
RF SERVO HUMID SLACK
Li
-
-40
-30
-12
0
IP
CL
CONT
OVER OVER
-20
DVCAM
F 8 32k
F 8 48k
Li
IP
CL
CONT
DVCAM
a Playback indication
Indication
Description
a Playback indication Appears during playback, fast forward or rewind with the time data display showing a
time code or user bit value.
b DATE indication Appears when the date or time is displayed in the time value indication s area.
c Non drop-frame indication (DSR-
300 only)
Appears when non-drop frame mode is selected.
d External synchronization
indication
Appears when the internal time code generator is locked to an external signal input to
the TC IN connector (3 on page 23).
e Hold indication Appears when the internal time code generator is stopped.
f Audio level indicators These show the audio recording or playback levels of channel 1 and channel 2.
g ClipLink log data indication
h ClipLink continue indication
Appears when using a cassette with cassette memory containing ClipLink log data.
Appears when back space editing using ClipLink function is possible.
i IP(Index Picture) indication Appears when the ClipLink function is set to on in the VCR menu and Index Picture
recording is allowed. (The optional DSBK-301 is required.)
(Continued)
b DATE indication
c Non-drop frame indication (DSR-300 only)
d External synchronization lock indication
e Hold indication
f Audio level indicators
g ClipLink log data indication
h ClipLink continue
indication
i IP indication
1)
j Lithium backup
battery warning
k DVCAM indication
l Cassette memory indication
m Audio mode indications
n Warning indications
1) When the optional DSBK-301 is fitted
o Service indication
p Battery capacity
indication
q Tape remaining
indication
r Clip remaining
indication
s Time value
indication
