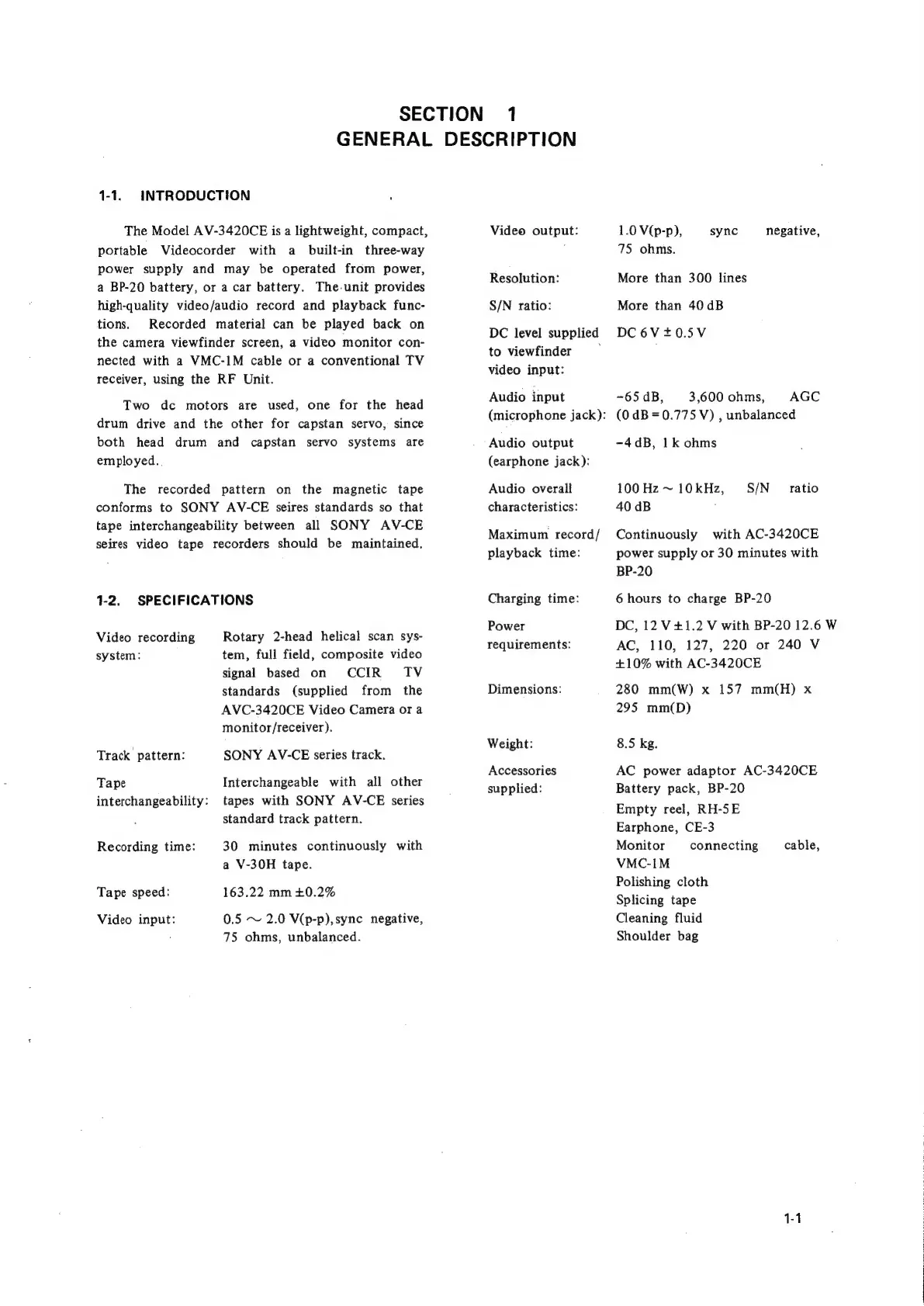

SECTION 1
GENERAL DESCRIPTION
1-1. INTRODUCTION ‘
The Model AV-3420CE is a lightweight, compact,
portable Videocorder with a built-in three-way
power supply and may be operated from power,
a BP-20 battery, or a car battery. The-unit provides
high-quality video/audio record and playback func-
tions. Recorded material can be played back on
the camera viewfinder screen, a video monitor con-
nected with a VMC-1M cable or a conventional TV
receiver, using the RF Unit.
Two dc motors are used, one for the head
drum drive and the other for capstan servo, since
both head drum and capstan servo systems are
employed.
The recorded pattern on the magnetic tape
conforms to SONY AV-CE seires standards so that
tape interchangeability between all SONY AV-CE
seires video tape recorders should be maintained.
1-2. SPECIFICATIONS
Video recording Rotary 2-head helical scan sys-
system: tem, full field, composite video
signal based on CCIR TV
standards (supplied from the
AVC-3420CE Video Camera or a
monitor/receiver).
Track pattern: SONY AV-CE series track.
Tape Interchangeable with all other
interchangeability: tapes with SONY AV-CE series
standard track pattern.
30 minutes continuously with
a V-30H tape.
Recording time:
Tape speed: 163.22 mm +0.2%
0.5 ~ 2.0 V(p-p),synce negative,
Video input:
: 75 ohms, unbalanced.
Video output:
Resolution:
S/N ratio:
DC level supplied
to viewfinder
video input:
Audio input
(microphone jack):
Audio output
(earphone jack):
Audio overall
characteristics:
Maximum record/
playback time:
Charging time:
Power
requirements:
Dimensions:
Weight:
Accessories
supplied:
1.0 V(p-p), sync negative,
75 ohms.
More than 300 lines
More than 40dB
DC6V1t0.5V
-65 dB, 3,600 ohms, AGC
(0 dB=0.775 V) , unbalanced
-4dB, 1k ohms
100Hz~10kHz, S/N ratio
40 dB
Continuously with AC-3420CE
power supply or 30 minutes with
BP-20
6 hours to charge BP-20
DC, 12 V+1.2 V with BP-20 12.6 W
AC, 110, 127, 220 or 240 V
+10% with AC-3420CE
280 mm(W) x 157 mm(H) x
295 mm(D)
8.5 kg.
AC power adaptor AC-3420CE
Battery pack, BP-20
Empty reel, RH-5E
Earphone, CE-3
Monitor connecting cable,
VMC-IM
Polishing cloth
Splicing tape
Cleaning fluid
Shoulder bag
1-1
