Index to Parts and Controls
For more information, refer to the pages indicated in parentheses.

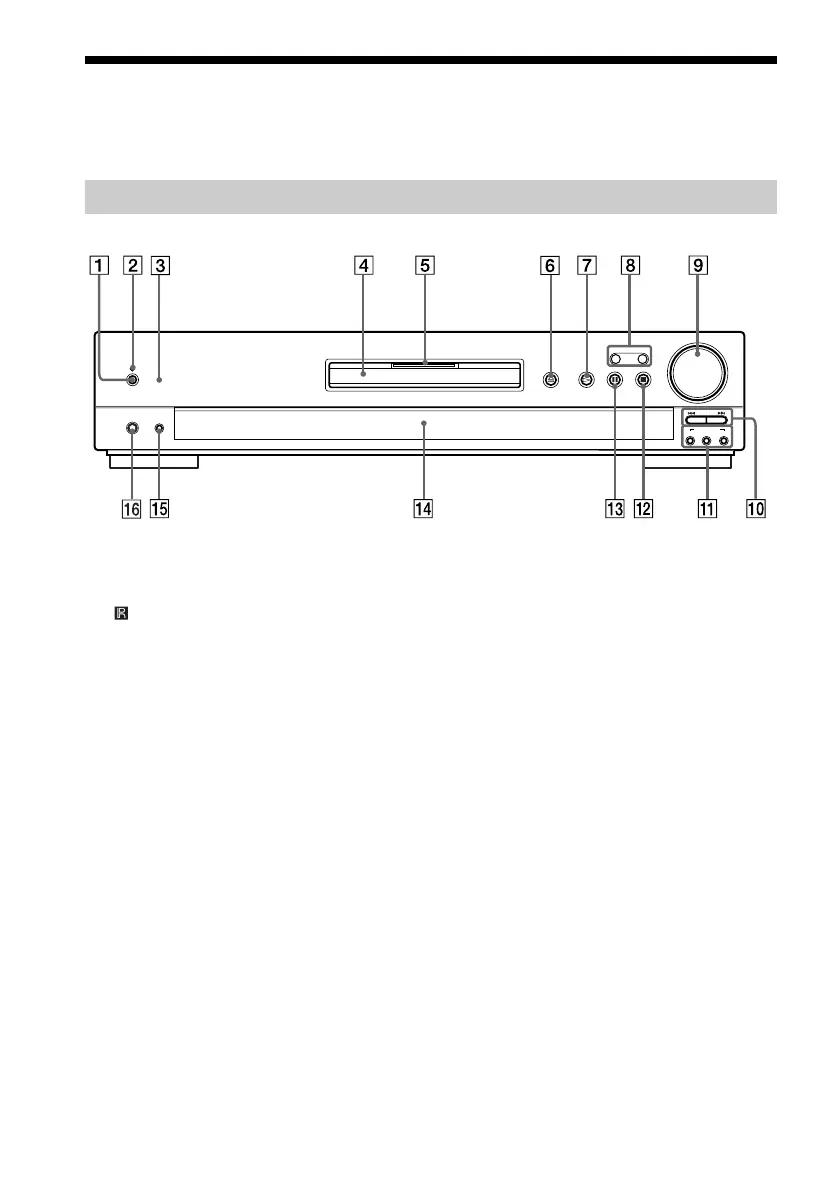

Front Panel
1 POWER switch (31)
2 STANDBY indicator (31)
3 (remote sensor) (17)
4 Disc tray (31)
5 MULTI CHANNEL DECODING
indicator
6 A (open/close) (31)
7 H (play) (31)
8 FUNCTION +/– (61)
9 VOLUME control (31, 72)
0 ./>, PRESET +/– (32)
qa SOUND FIELD AUTO DEC/2CH ST/
MODE (48, 49, 51)
qs x (stop) (30, 31)
qd X (pause) (32)
qf Front panel display (11)
qg DISPLAY (62)
qh PHONES jack (31)
DISPLAY
PHONES
FUNCTION
VOLUME
–
–
+
+
PRESET
SOUND FIELD
2CH ST AUTO DEC MODE
