20
GB
COAXIAL
OUT IN
OUT
ANALOG
FRONTCENTER
AM
L
R
FM
75Ω
ANTENNA
SPEAKERS
IMPEDANCE USE 6–16Ω
SUB
WOOFER
OUT
OPTICAL
1
OPT IN
2
OPT IN
3
COAX IN
ANALOG DIGITAL
LR
SURROUND
LR
+
–
EURO AV OUTPUT(TO TV) EURO AV INPUT(FROM VIDEO)

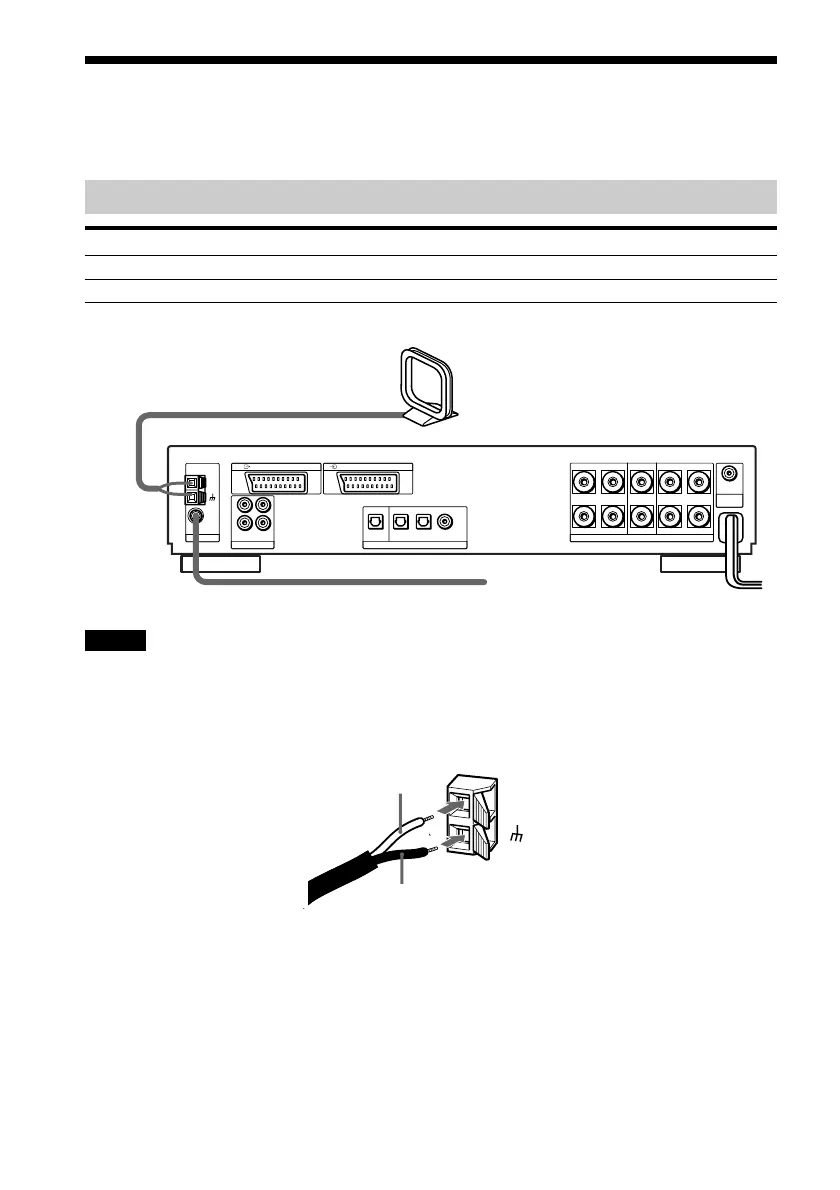

Step 2: Antenna Hookups
Connect the supplied AM/FM antennas for listening to the radio.
Terminals for connecting the antennas
Connect the To the
AM loop antenna AM terminals
FM wire antenna FM 75Ω COAXIAL terminal
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
• When you connect the supplied AM loop antenna, connect the black cord (B) to the U terminal, and the white
cord (A) to the other terminal.
AM loop antenna
FM wire antenna
A
B
AM
To Next Page
