Sony AVD-S50 - Rear Panel Connections

12
GB

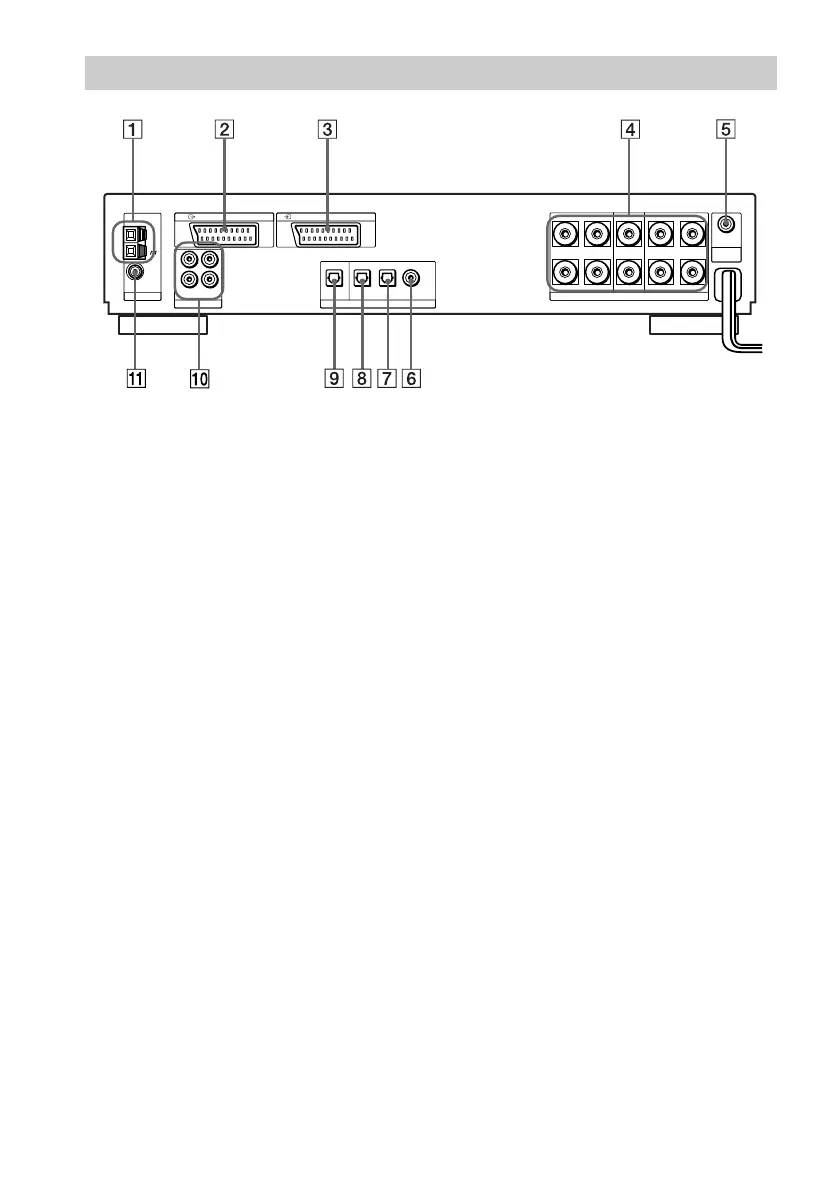

Rear Panel
1 AM antenna (20)
2 T EURO AV OUTPUT (TO TV) jack
(22)
3 t EURO AV INPUT (FROM VIDEO)
jack (23)
4 SPEAKERS jacks (18)
5 SUB WOOFER (ANALOG OUT) jack
(18)
6 DIGITAL (COAX IN 3) jack
7 DIGITAL (OPT IN 2) jack
8 DIGITAL (OPT IN 1) jack
9 DIGITAL (OPTICAL OUT) jack
0 ANALOG IN/OUT L/R jacks
qa FM 75Ω COAXIAL antenna jack (20)
COAXIAL
OUT IN
OUT
ANALOG
FRONTCENTER
AM
L
R
FM
75Ω
ANTENNA
SPEAKERS
IMPEDANCE USE 6–16Ω
SUB
WOOFER
OUT
OPTICAL
1
OPT IN
2
OPT IN
3
COAX IN
ANALOG DIGITAL
LR
SURROUND
LR
+
–
EURO AV OUTPUT(TO TV) EURO AV INPUT(FROM VIDEO)
