Sony AVD-S50 - Page 18

18
GB
COAXIAL
OUT IN
OUT
ANALOG
FRONTCENTER
AM
L
R
FM
75Ω
ANTENNA
SPEAKERS
IMPEDANCE USE 6–16Ω
SUB
WOOFER
OUT
OPTICAL
1
OPT IN
2
OPT IN
3
COAX IN
ANALOG DIGITAL
LR
SURROUND
LR
+
–
EURO AV OUTPUT(TO TV) EURO AV INPUT(FROM VIDEO)
+–
+–
+–
+–
+–

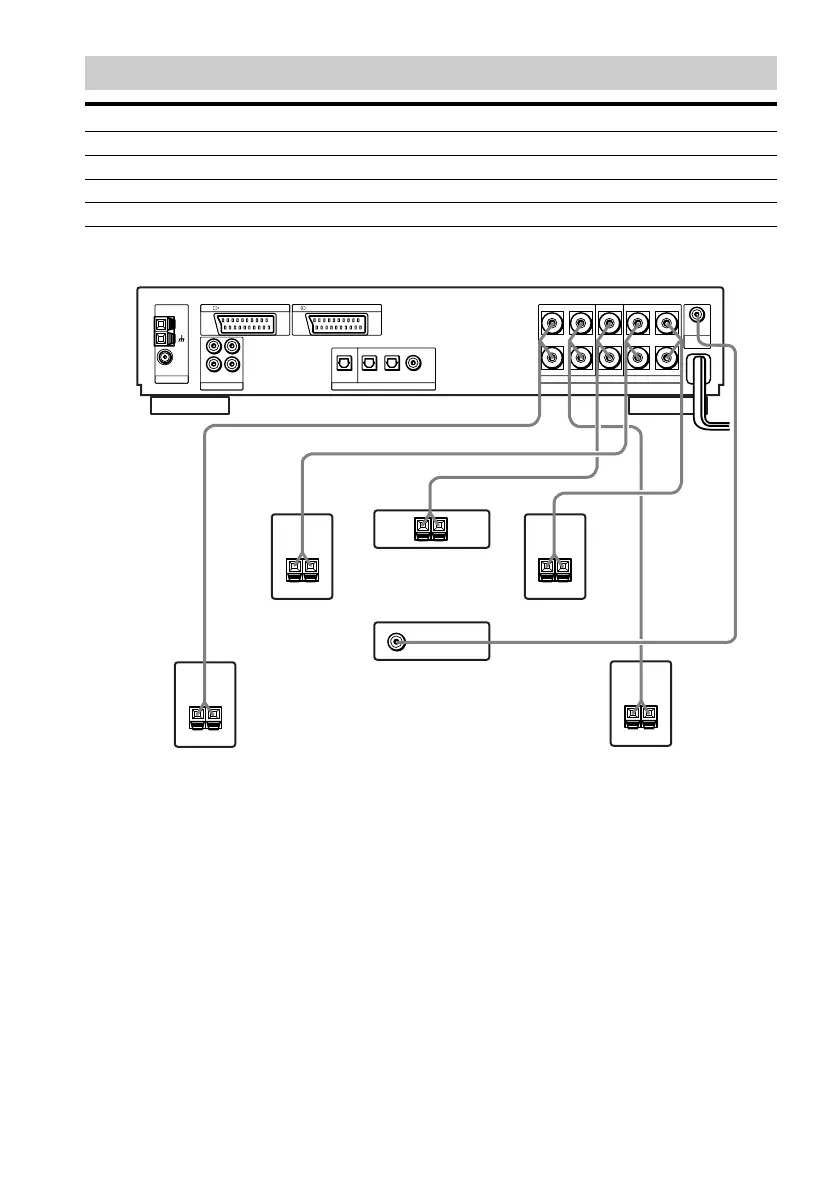

Terminals for connecting the speakers
Connect the To the
Front speakers SPEAKERS FRONT L and R terminals
Rear speakers SPEAKERS SURROUND L and R terminals
Center speaker SPEAKERS CENTER terminal
Subwoofer SUBWOOFER ANALOG OUT terminal
Front speaker (R)
Rear speaker (L)
Rear speaker (R)
Subwoofer
(active type)
Center speaker
Front speaker (L)
