18
GB
Getting Started

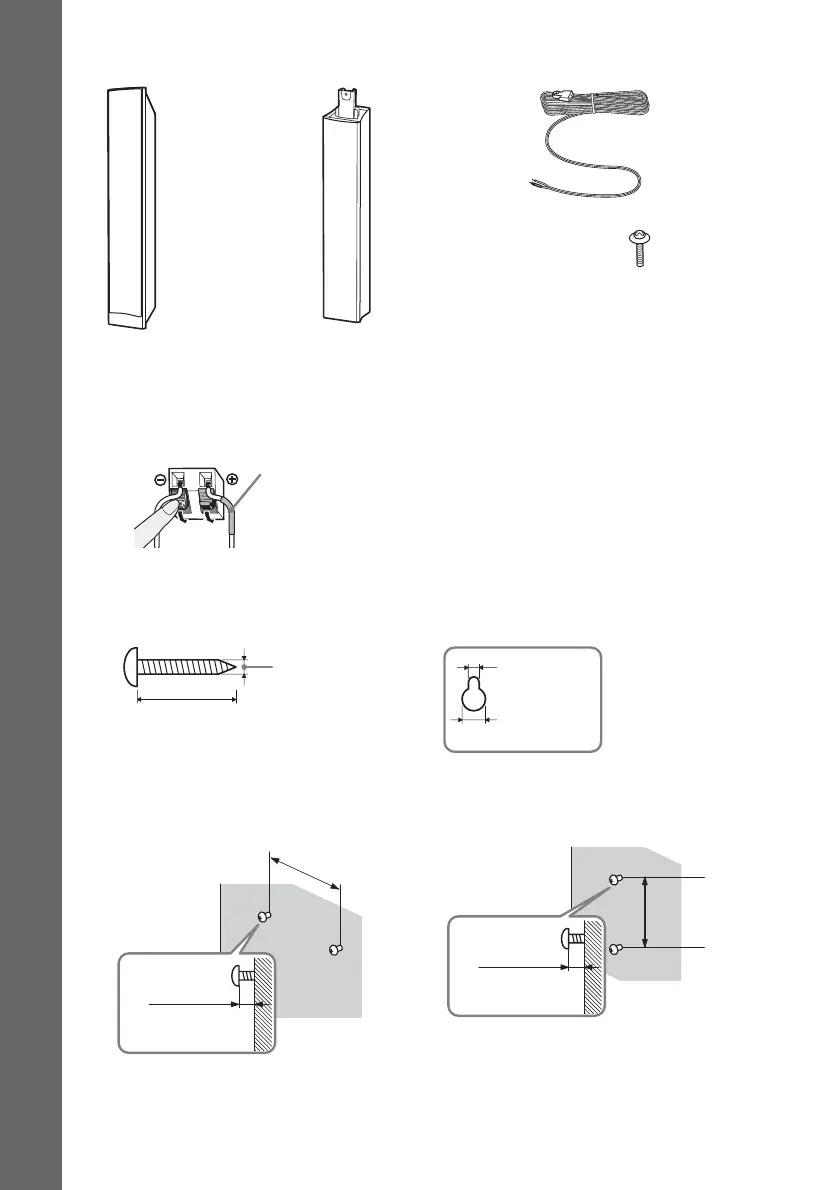

Fully-disassembled illustration
To install the speakers on a wall
Before installing the speakers on a wall, connect the speaker cord to the speaker.
Be sure to match the speaker cords to the appropriate terminals on the speakers: the speaker cord with
the color tube to 3, and the speaker cord without the color tube to #.
1 Prepare screws (not supplied) that are suitable for the hole on the back of each speaker.
See the illustrations below.
2 Fasten the screws to the wall.
Upper part of
the speaker
Lower part of
the speaker
Speaker cord
Screw
Color tube
Front left speaker (L): White
Front right speaker (R): Red
Center speaker: Green
Surround left speaker (L): Blue
Surround right speaker (R): Gray
30 mm
4 mm
Hole on the back of
the speaker
5 mm
10 mm
8 to 10 mm
219 mm
For the center speaker
210 mm
For the other speakers
8 to 10 mm
