A SPEAKERS jacks (page 18)
B COMPONENT VIDEO OUT jacks (page
19) (for non-European/non-Saudi
Arabian models)
C (USB) port (page 33)
D SAT/CABLE (DIGITAL IN COAXIAL)
jack (page 21)
E Wireless transceiver (EZW-RT50) slot
(page 26)
F ANTENNA (FM COAXIAL 75Ω) jack
(page 23)
G A.CAL MIC jack (pages 27, 46)
H AUDIO (AUDIO IN L/R) jacks (page 21)
I TV (DIGITAL IN OPTICAL) jack (page
19)
J LAN (100) terminal (page 24)
K HDMI (IN 2) jack (page 21)
L HDMI (IN 1) jack (page 21)
M HDMI (OUT) jack (page 19)
N VIDEO OUT jack (page 19)

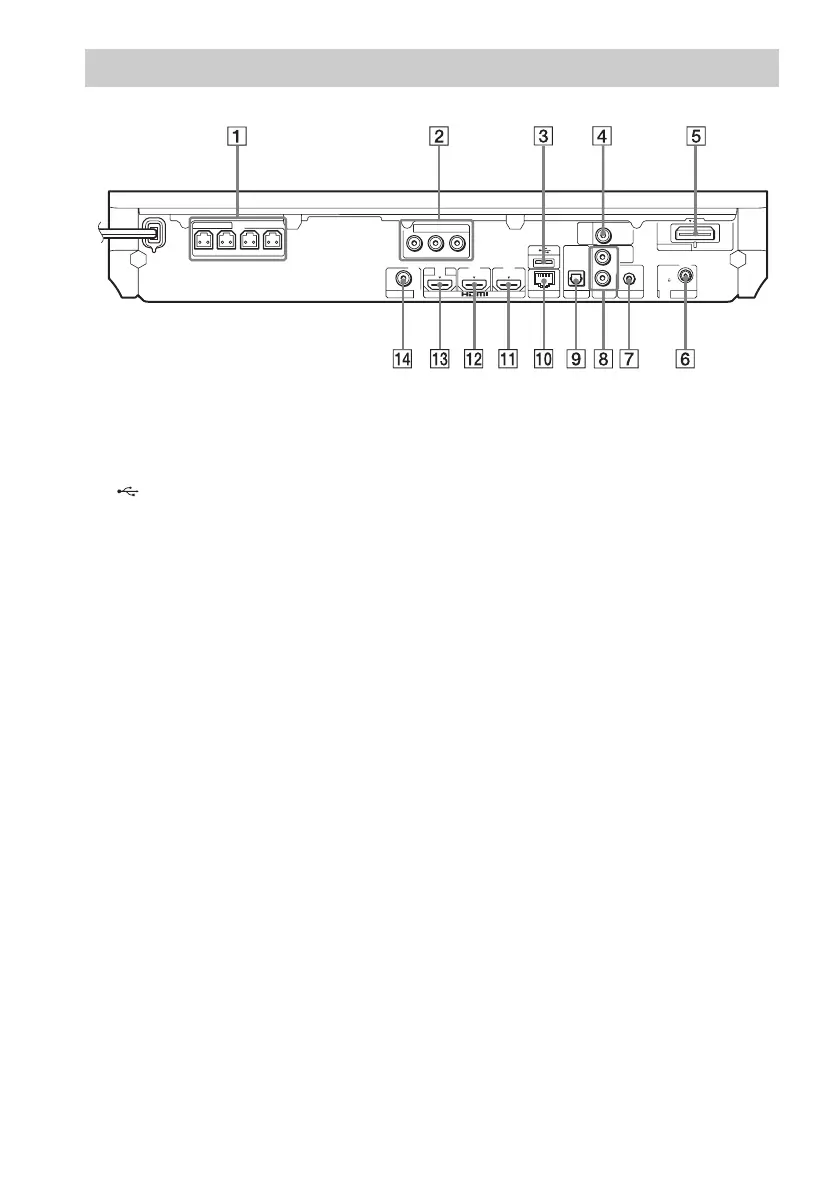

Rear panel
COMPONENT VIDEO OUT
Y P B P R
FRONT R FRONT L CENTER SUBWOOFER
SPEAKERS
VIDEO OUT
LAN (100)
ARC
OUT
IN 1 IN 2
OPTICAL
DIGITAL IN
TV
AUDIO IN
L
R
AUDIO
ANTENNA
COAXIAL
FM
75
SAT/
CABLE
COAXIAL
DIGITAL IN
ECM-AC2
A.CAL MIC
EZW-RT50
