Getting Started
Select one of the following connection methods according to the input jacks on your TV.
Video connections
1)
Use a High Speed HDMI cable.
2)
If the HDMI IN jack of your TV is compatible with the ARC (Audio Return Channel) function, an HDMI cable
connection can also send a digital audio signal from the TV. For setting the Audio Return Channel function, see
[Audio Return Channel] (page 45).
3)
The supplied video cord is for connection of the Dock for iPod/iPhone.
Audio connections
If you do not connect the system to the TV’s HDMI jack that is compatible with the ARC function,
make an appropriate audio connection for listening to TV sound via the system’s speakers.

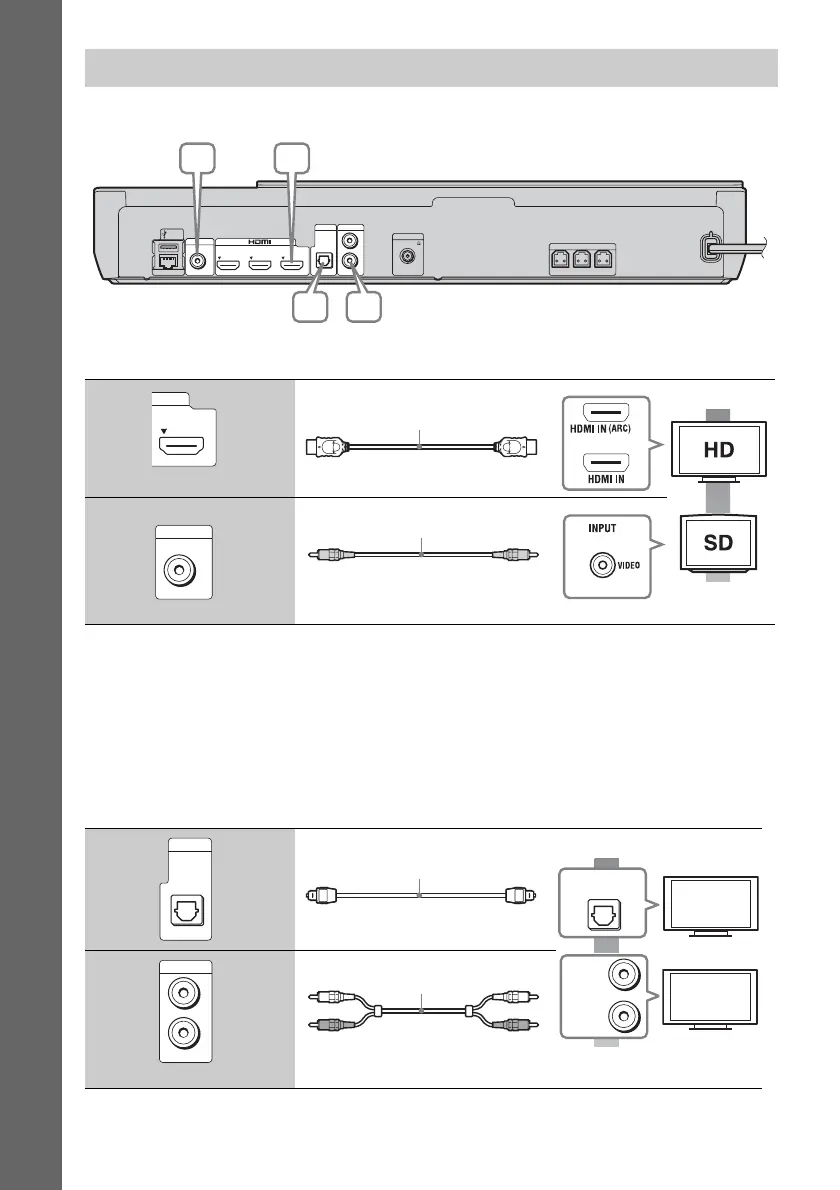

Connecting the TV
A High quality
Standard
quality
B
C High quality
Standard
quality
D
FM
AUDIO INDIGITAL IN
OUT
IN 2IN 1
OPTICAL
L
R
ANTENNA
AUDIOTV
VIDEO OUT
USB 1
LAN (100)
FRONT R FRONT L SUBWOOFER
SPEAKERS
ARC
COAXIAL
75
AB
C D
OUT
ARC
HDMI cable
1)
(not supplied)
or
2)
VIDEO OUT
Video cord (not supplied
3)
)
DIGITAL IN
OPTICAL
TV
Digital optical cord
(not supplied)
OPTICAL
DIGITAL OUT
L
R
AUDIO
OUTPUT
AUDIO IN
L
R
AUDIO
Audio cable (not supplied)
