Sony BVP-E30 series - Camera Controls and Connections; Side Panel Components

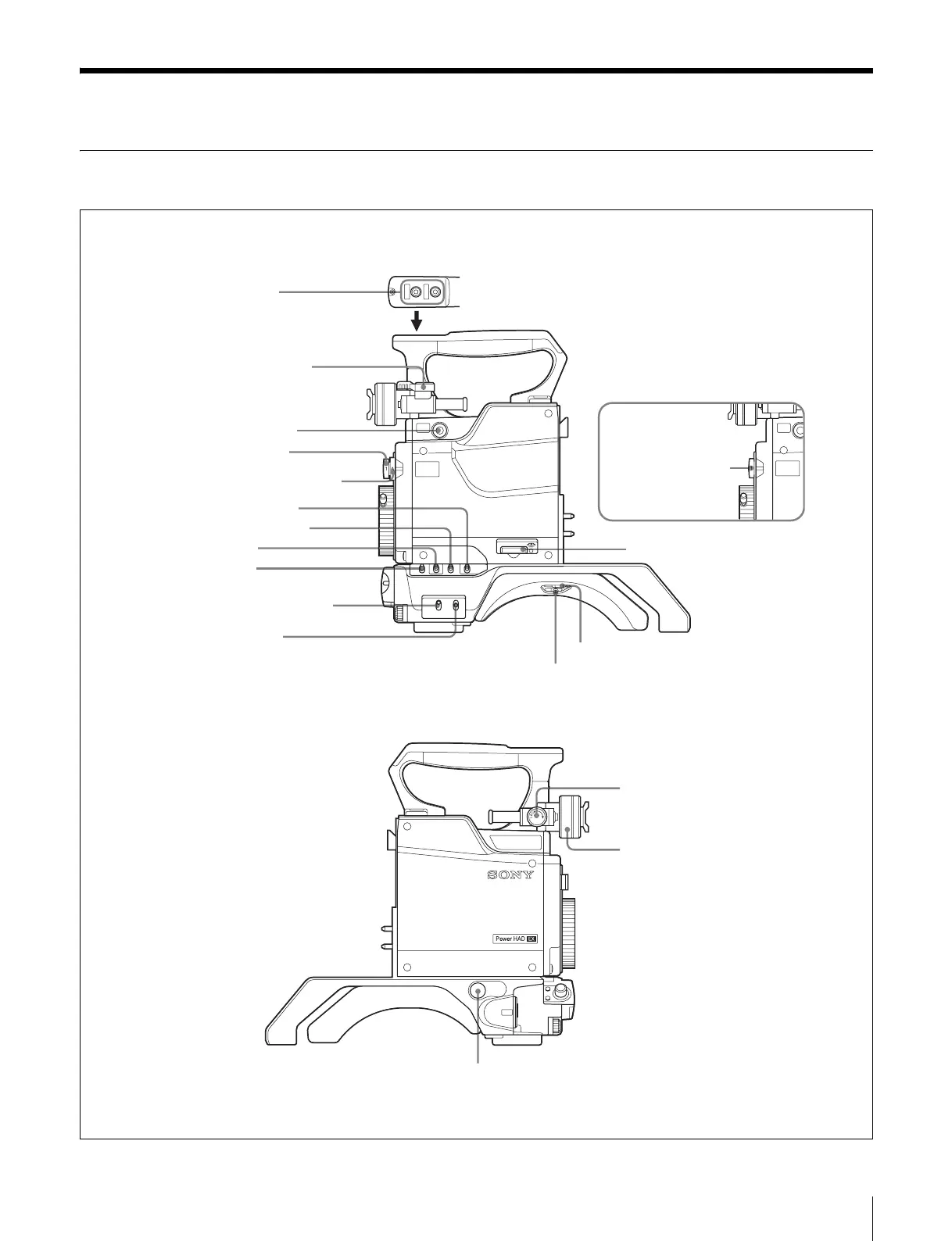

Location and Function of Parts
9
Location and Function of Parts
Side Panels
VTR
GAIN
OUTPUT
WHITE
BAL
STATUS
CANCEL
MENU
GENLOCK
DISPLAY
ON
OFF
MENU
RET1
INCOM
TESTOUT
MIC
m Shoulder pad lock lever
q TEST OUT connector
l Memory Stick slot
o LOCK knob
p Viewfinder lock ring
a Handle buttons
b Viewfinder lock lever
BVP-E30P
d ND filter selector
c Assignable button
d ND filter selector
e CC filter selector (BVP-
E30/E30WS/E30WSP only)
f WHITE BAL switch
k DISPLAY switch
j STATUS/CANCEL switch
h GAIN switch
g OUTPUT/DCC switch
i VTR switch
n CA lock screw
