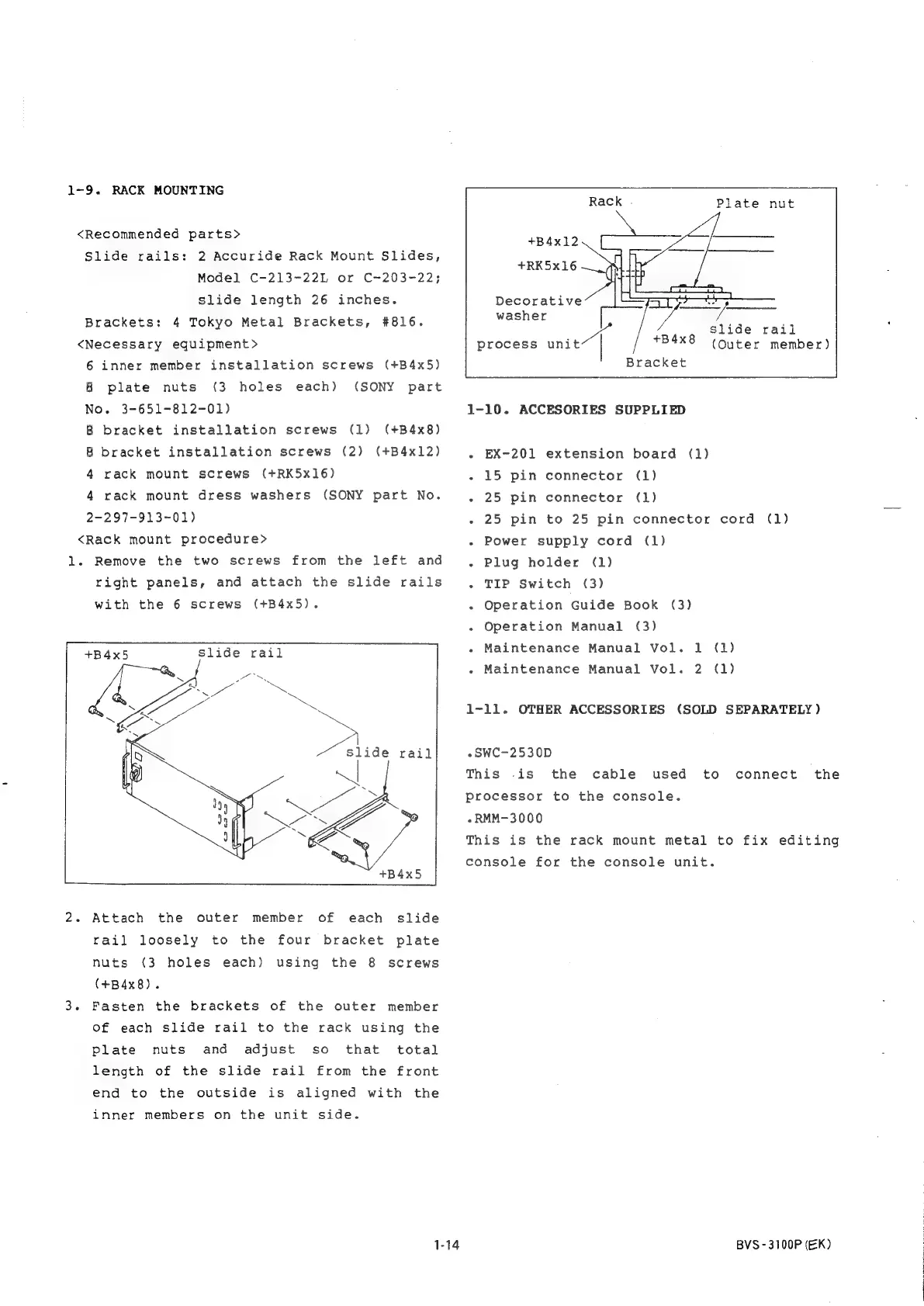

1-9. RACK MOUNTING
<Recommended parts>
Slide rails: 2 Accuride Rack Mount Slides,
Model C-213-22L or C-203-22;
slide length 26 inches.
Brackets: 4 Tokyo Metal Brackets, #816.
<Necessary equipment>
6 inner member installation screws (+B4x5)
8 plate nuts (3 holes each) (SONY part
No. 3-651-812-01)
8 bracket installation screws (1) (+B4x8)
8 bracket installation screws (2) (+B4x12)
4 rack mount screws (+RK5x16)
4 rack mount dress washers (SONY part No.
2-297-913-01)
<Rack mount procedure>
1. Remove the two screws from the left and
right panels, and attach the slide rails
with the 6 screws (+B4x5).
slide rail
2. Attach the outer member of each slide
rail loosely to the four bracket plate
nuts (3 holes each) using the 8 screws
(+B4x8).
3. Fasten the brackets of the outer member
of each slide rail to the rack using the
Plate nuts and adjust so that total
length of the slide rail from the front
end to the outside is aligned with the
inner members on the unit side.
Plate nut
+B4x12
+RK5x16
Decorative ar ETS
washer we
Slide rail
+B4x8 (outer member)
process unit
Bracket
1-10. ACCESORIES SUPPLIED
- EX-201 extension board (1)
- 15 pin connector (1)
- 25 pin connector (1)
- 25 pin to 25 pin connector cord (1)
- Power supply cord (1)
- Plug holder (1)
- TIP Switch (3)
- Operation Guide Book (3)
. Operation Manual (3)
- Maintenance Manual vol. 1 (1)
- Maintenance Manual Vol. 2 (1)
1-11. OTHER ACCESSORIES (SOLD SEPARATELY )
-SWC-2530D
This -is the cable used to connect the
processor to the console.
«RMM-3000
This is the rack mount metal to fix editing
console for the console unit.
BVS -3100P (EK)
