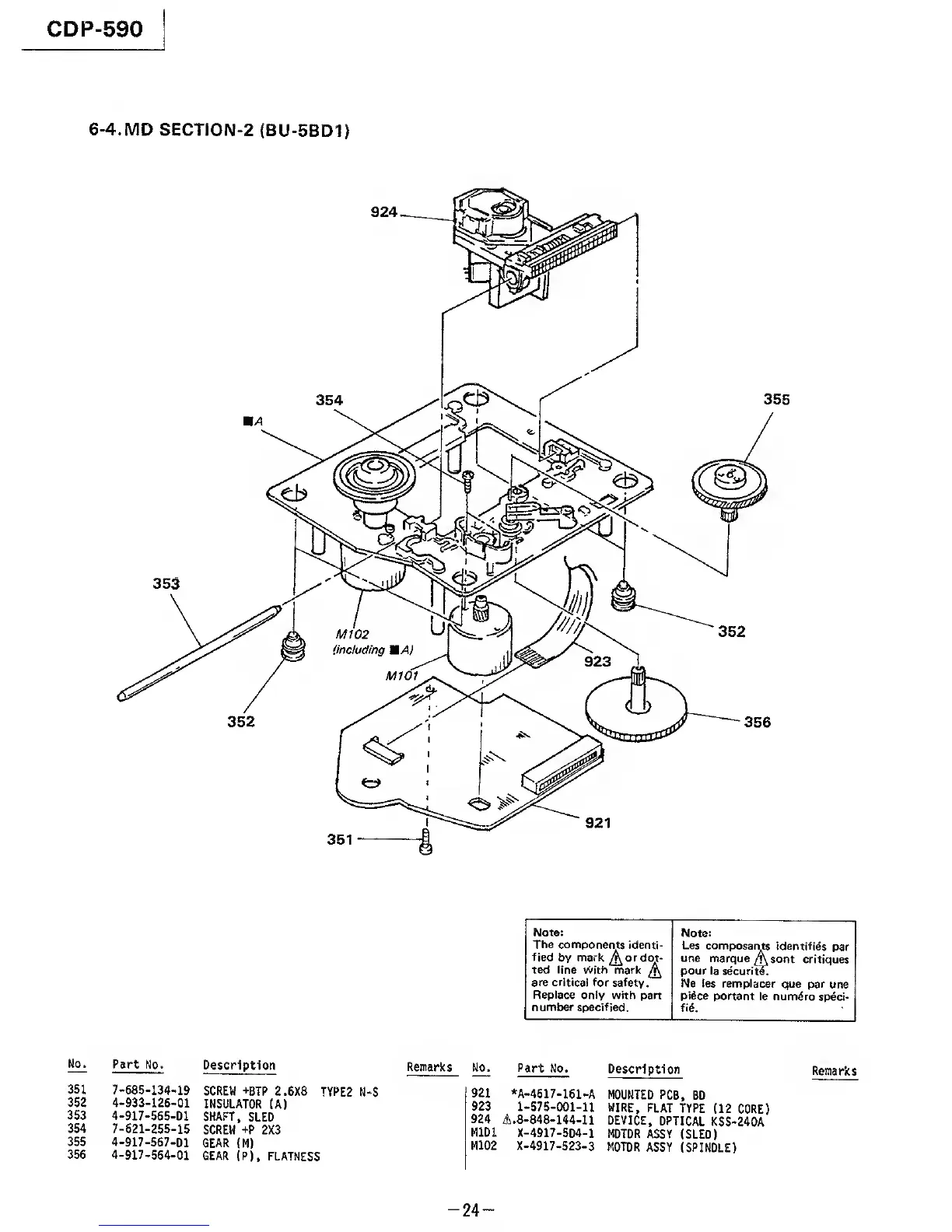

6-4.MD SECTION-2
{BU-5BD1)
Note:
Note:
The components
identi-
Les composantt
identifies
par
tied
by
mark
/^ordm-
une
marque^sont
critiques
ted line
With mark
^
pour la
security,
are critical for safety.
Ne les remplacer
que par
une
Replace
only with part
piece
portant le num^ro
speci-
number specified.
fi4.
are critical for safety.
Replace
only with part
number specified.
No.
Part No.
Descriptio
n
Remarks
351 7-685-134-19
SCREW
+BTP 2.6X8 TYPE2
N-S
352
4-933-126-01
INSULATOR
(A)
353 4-917-565-01
SHAFT,
SLED
354 7-621-255-15
SCREW +P 2X3
355 4-917-567-01
GEAR
(M)
356 4-917-564-01
GEAR (P),
FLATNESS
No. Part
No.
Description
Remarks
921
*A-4617-161-A
MOUNTED
PCB,
BD
923
1-575-001-11
WIRE, FLAT
TYPE
(12
CORE)
924
A.8-848-144-11
DEVICE,
OPTICAL
KSS-240A
MlOl
X-4917-504-1
MOTOR
ASSY
(SLED)
M102 X-4917-523-3
MOTOR
ASSY (SPINDLE)
-24
