Sony CDP-590 - Cabinet Section

SECTION 4
EXPLODED
VIEWS
NOTE:
• The
mechanical parts
with no reference
number
in the
exploded views
are not
supplied.
• The
construction
parts of an
assembled
part are
indicated
with
a
collation
num-
ber
in the remark
column.
•
Items marked
are not stocked
since
they are
seldom
required for routine
service.
Some
delay should
be antici-
pated when ordering
these
items.
•
Due
to standardi2ation,
parts with
part
number
suffix -XX
and -X may
be dif-
ferent from
the
parts specified
in the
components used
on the set.
•
Color Indication
of Appearance
Parts
Example;
(RED)
. . . KNOB. BALANCE
(WHITE)
t
t
Cabinet's Color
Parts'
Color
The
comjjonents identified
by
nwrk
^
or
dotted line with mark
A
ate critical
for
safety.
Replace only with
part number
specified.
Les
composants identifies
par une
marque
A
critiques
pour la
security.
Ne les
remplacer que par
une
pi^ce
portant le numero specife.

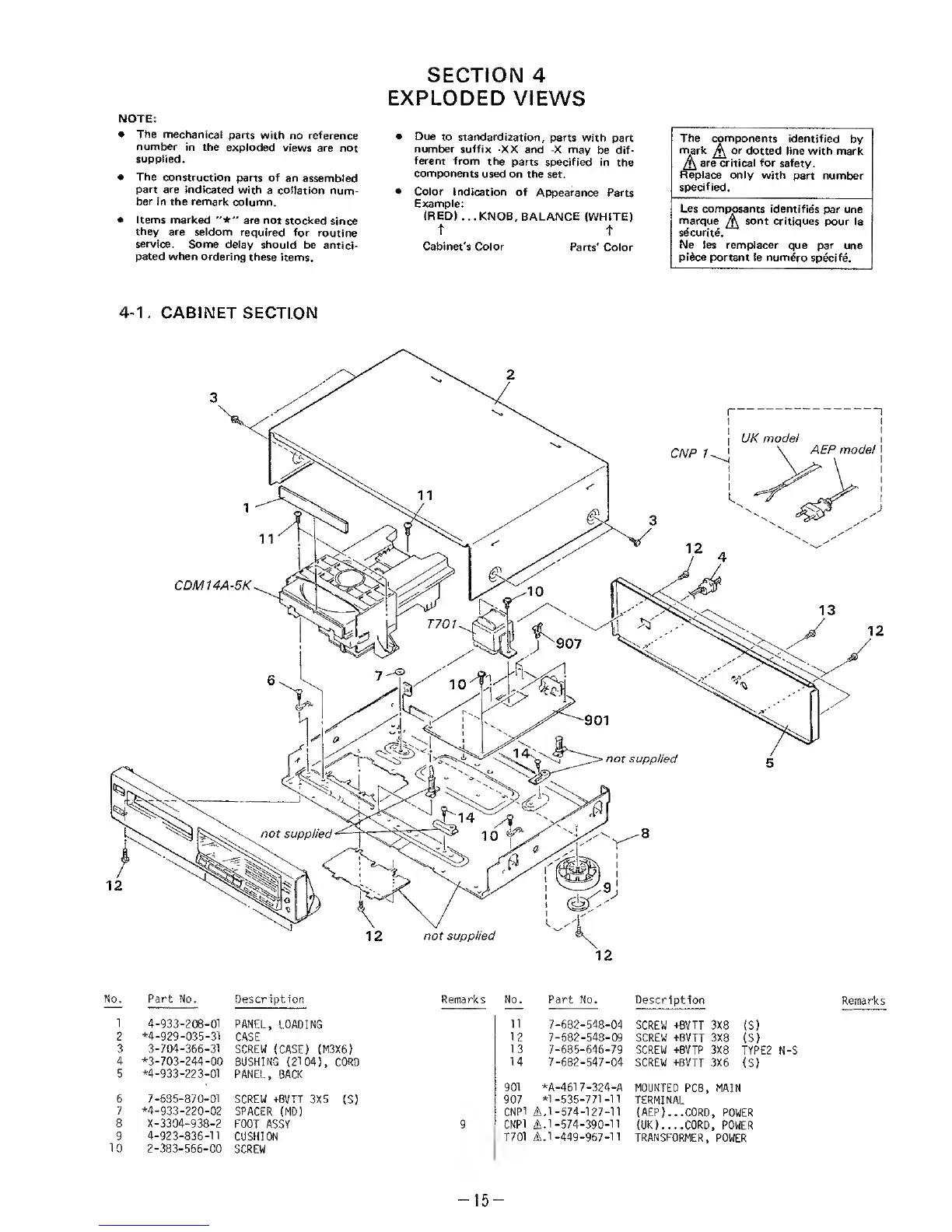

4-1.
CABINET
SECTION
No. Part
No. Description
Remarks
No.
Part No. Description
1 4-933-208-01
PANEL,
LOADING
11 7-682-548-04
SCREW +BVTT
3X8 (S)
2
*4-929-035-31
CASE 12
7-682-548-09
SCREW +BVTT 3X8
(S)
3
3-704-366-31
SCREW (CASE) (M3X6)
13 7-685-646-79
SCREW +BVTP 3X8
TYPE2
4
*3-703-244-00
BUSHING
(2104),
CORO
14 7-682-547-04
SCREW +BVTT 3X6
(S)
5
*4-933-223-01
PANEL, BACK
901
*A-4617-324-A
MOUNTED PCB, MAIN
6
7-635-870-01
SCREW +8VTT 3X5
(S) 907
*1
-535-771
-11
TERMINAL
7
*4-933-220-02
SPACER
(MO)
CNPl
A.
1
-574-127-11
(AEP)...C0RD, POWER
8 X-3304-938-2
FOOT
ASSY 9 CNPl
A.
1-574-390-11
(UK). ...CORD, POWER
9
4-923-836-11
CUSHION
T701
A.l -449-967-11
TRANSFORMER,
POWER
10 2-383-566-00
SCREW
Remarks
-
15
-
