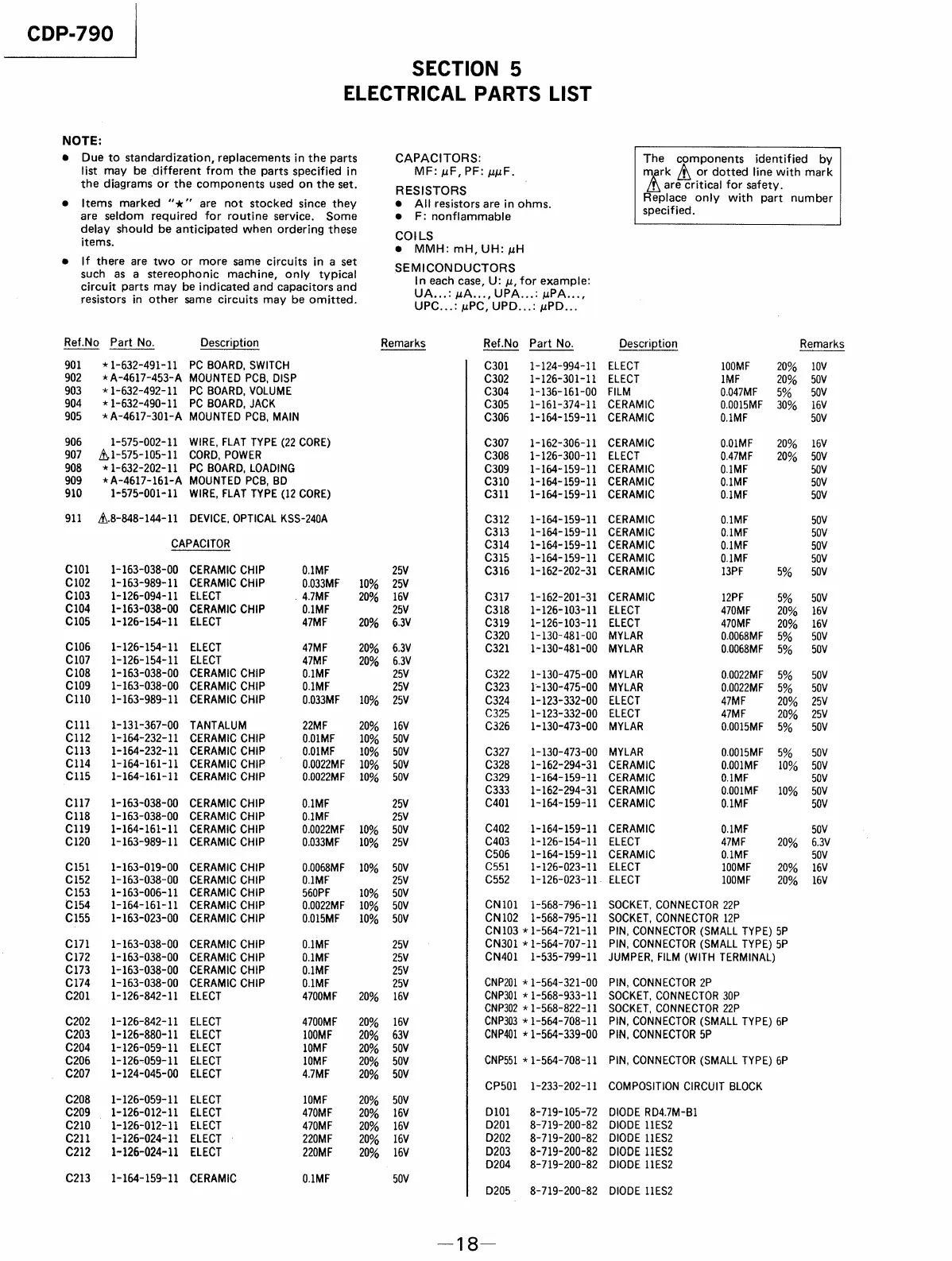

Sony CDP-790 - SECTION 5 ELECTRICAL PARTS LIST

CDP-790
SECTION 5
ELECTRICAL PARTS LIST
NOTE:
@ Due to standardization, replacements in the parts CAPACITORS: The components identified by
list may be different from the parts specified in MF: uF, PF: uwuF. mark or dotted line with mark
the diagrams or the components used on the set. RESISTORS A are critical for safety.
Replace only with part number
specified.
e@ stems marked “*x’’ are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
@ All resistors are in ohms.
@ F: nonflammable
COILS
@ MMH: mH, UH: wH
SEMICONDUCTORS
In each case, U: uw, for example:
UA...: WA..., UPA...: wPA...,
UPC...: uPC, UPD...: uwPD...
@ If there are two or more same circuits in a set
such as a stereophonic machine, only typical
circuit parts may be indicated and capacitors and
resistors in other same circuits may be omitted.
Ref.No Part No. Description Remarks Ref.No Part No. Description Remarks
901 * 1-632-491-11 PC BOARD, SWITCH C301 1-124-994-11 ELECT 100MF 20% 10V
902 * A-4617-453-A MOUNTED PCB, DISP C302 1-126-301-11 ELECT IMF 20% 50V
903 *1-632-492-11 PC BOARD, VOLUME C304 1-136-161-00 FILM 0.047MF 5% 50V
904 *1-632-490-11 PC BOARD, JACK C305 1-161-374-11 CERAMIC 0.00ISMF 30% 16V
905 *A-4617-301-A MOUNTED PCB, MAIN C306 1-164-159-11 CERAMIC 0.1MF 50V
906 1-575-002-11 WIRE, FLAT TYPE (22 CORE) C307 1-162-306-11 CERAMIC 0.01MF 20% 16V
$907. A,1-575-105-11 CORD, POWER C308 1-126-300-11 ELECT 0.47MF 20% 50V
908 *1-632-202-11 PC BOARD, LOADING C309 1-164-159-11 CERAMIC 0.1MF 50V
909 »*A-4617-161-A MOUNTED PCB, BD C310 1-164-159-11 CERAMIC 0.IMF 50V
910 1-575-001-11 WIRE, FLAT TYPE (12 CORE) C311 1-164-159-11 CERAMIC O.IMF 50V
911 A\.8-848-144-11 DEVICE, OPTICAL KSS-240A C312 1-164-159-11 CERAMIC 0.1MF 50V
C313 1-164-159-11 CERAMIC 0.1MF 50V
CAPACITOR C314 1-164-159-11 CERAMIC 0.1MF 50V
C315 =: 1-164-159-11 CERAMIC 0.1MF 50V
C101 1-163-038-00 CERAMIC CHIP O.IMF 25V C316 1-162-202-31 CERAMIC 13PF 5% 50V
C102 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V
C103 1-126-094-11 ELECT . 4.7MF 20% 16V C317 1-162-201-31 CERAMIC 12PF 5% 50V
C104 1-163-038-00 CERAMIC CHIP 0.1MF 25V C318 1-126-103-11 ELECT 470MF 20% 16V
C105 1-126-154-11 ELECT 47MF 20% 6.3V C319 1-126-103-11 ELECT 470MF 20% 16V
C320 1-130-481-00 MYLAR 0.0068MF 5% 50V
C106 1-126-154-11 ELECT 47MF 20% 6.3V C321 1-130-481-00 MYLAR 0.0068MF 5% 50V
C107 1-126-154-11 ELECT 47MF 20% 6.3V
C108 1-163-038-00 CERAMIC CHIP 0.1MF 25V C322 1~-130-475-00 MYLAR 0.0022MF 5% 50V
C109 1-163-038-00 CERAMIC CHIP 0.IMF 25V C323 1-130-475-00 MYLAR 0.0022MF 5% 50V
C110 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V C324 1-123-332-00 ELECT 47MF 20% 25V
C325 1-123-332-00 ELECT 47MF 20% 25V
Cili 1-131-367-00 TANTALUM 22MF 20% 16V C326 1-130-473-00 MYLAR 0.001ISMF 5% 50V
C112 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V
C113 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C327 1-130-473-00 MYLAR 0.0015MF 5% 50V
C114 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V C328 1-162-294-31 CERAMIC 0.001IMF 10% 50V
C115 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V C329 1-164-159-11 CERAMIC 0.1MF 50V
C333 1-162-294-31 CERAMIC 0.001MF 10% 50V
C117 1-163-038-00 CERAMIC CHIP 0.1MF 25V C401 1~164-159-11 CERAMIC 0.1MF 50V
C118 1-163-038-00 CERAMIC CHIP 0.1MF 25V
C119 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V C402 1-164-159-11 CERAMIC 0.1MF 50V
C120 1-163-989-11 CERAMIC CHIP 0.033MF 10% 25V C403 1-126-154-11 ELECT 47MF 20% 6.3V
C506 1-164-159-11 CERAMIC 0.1MF 50V
C151 1-163-019-00 CERAMIC CHIP 0.0068MF 10% 50V C551 1-126-023-11 ELECT 100MF 20% 16V
C152 1-163-038-00 CERAMIC CHIP 0.1MF 25V C552 1-126-023-11. ELECT 100MF 20% 16V
C153 1-163-006-11 CERAMIC CHIP 560PF 10% 50V
C154 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V CN101 1-568-796-11 SOCKET, CONNECTOR 22P
C155 1-163-023-00 CERAMIC CHIP 0.01SMF 10% 50V CN102 1-568-795-11 SOCKET, CONNECTOR 12P
CN103 * 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P
C171 1-163-038-00 CERAMIC CHIP 0.1MF 25V CN301 * 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
C172 1-163-038-00 CERAMIC. CHIP 0.1MF 25V CN401 1-535-799-11 JUMPER, FILM (WITH TERMINAL)
C173 1~163-038-00 CERAMIC CHIP 0.1MF 25V
C174 1-163-038-00 CERAMIC CHIP 0.1MF 25V CNP201 * 1-564-321-00 PIN, CONNECTOR 2P
C201 1-126-842-11 ELECT 4700MF 20% 16V CNP301 * 1-568-933-11 SOCKET, CONNECTOR 30P
CNP302 * 1-568-822-11 SOCKET, CONNECTOR 22P
C202 1-126-842-11 ELECT 4700MF 20% 16V CNP303 * 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P
C203 1-126-880-11 ELECT 100MF 20% 63V CNP401 * 1-564-339-00 PIN, CONNECTOR 5P
C204 1-126-059-11 ELECT 1OMF 20% 50V
C206 1-126-059-11 ELECT 10MF 20% 50V CNP551 * 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P
C207 1-124-045-00 ELECT 4.7MF 20% 50V
CP501 1-233-202-11 COMPOSITION CIRCUIT BLOCK
C208 1-126-059-11 ELECT 10MF 20% 50V
C209: 1-126-012-11 ELECT 470MF 20% 16V D101 8-719-105-72 DIODE RD4.7M-B1
C210 1-126-012-11 ELECT 470MF 20% 16V D201 = 8-719-200-82 DIODE 11ES2
C211 1-126-024-11 ELECT - 220MF 20% 16V D202 = 8-719-200-82 DIODE 11ES2
C212 1-126-024-11 ELECT 220MF 20% 16V D203 8-719-200-82 DIODE 11ES2
D204 8-719-200-82 DIODE 11ES2
C213 1-164-159-11 CERAMIC 0.1MF 50V
8-719-200-82 DIODE 11ES2
D205
