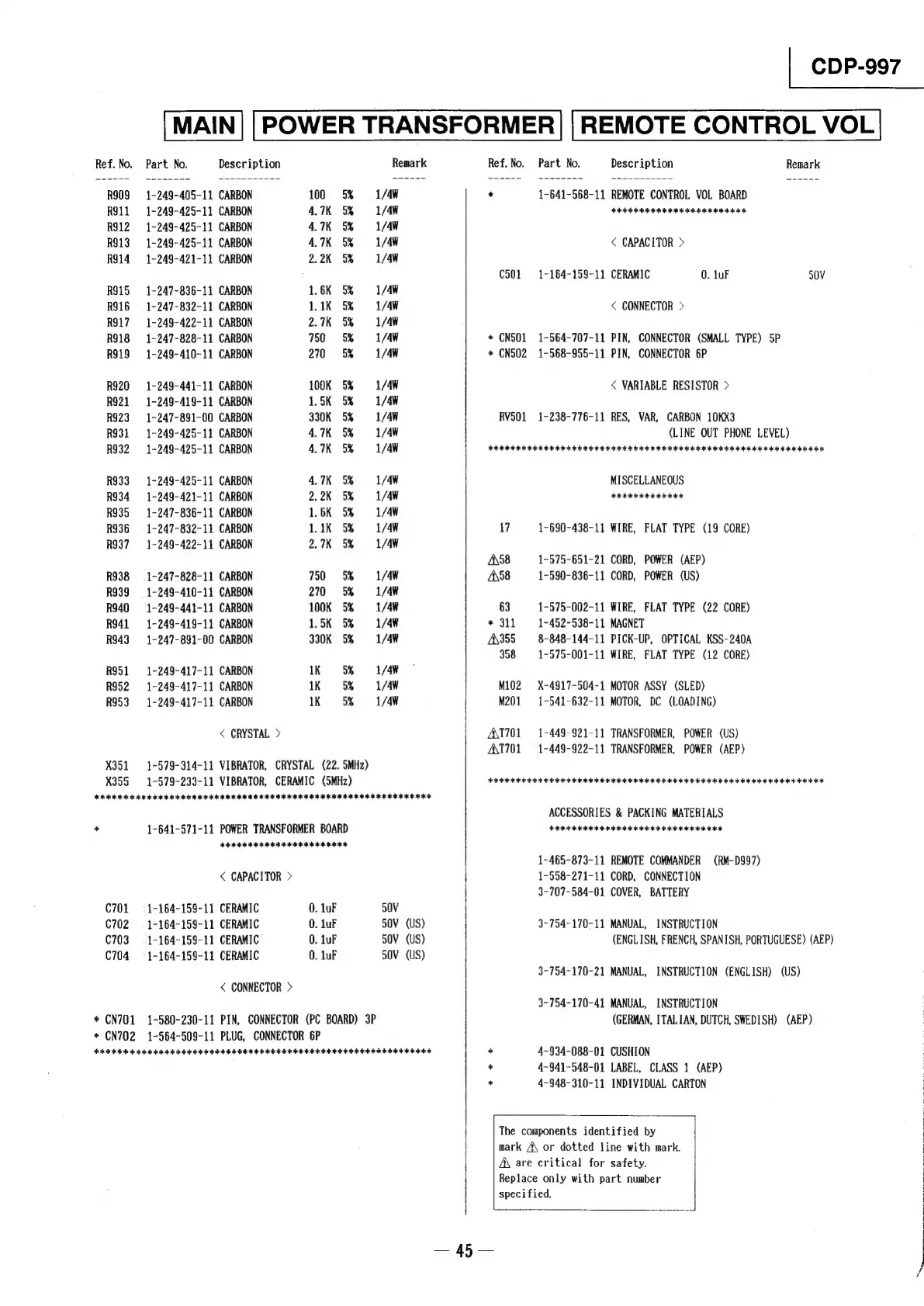

Sony CDP-997 - Accessories and Packing Materials

| CDP-997
POWER TRANSFORMER] | REMOTE CONTROL VOL
Ref. No. Part No. Description Remark
R909 1-249-405-11 CARBON 100 «5% = /4W
R911 1-249-425-11 CARBON 4.7K 5% 1/4W
R912 = 1-249-425-11 CARBON 4.7K 5% 1/48
R913 1-249-425-11 CARBON 4.7K 5% 1/4W
R914 = 1-249-421-11 CARBON 2.2K 5% 1/4W
R915 —1-247-836-11 CARBON 1.6K 5% 1/4W
R916 © 1-247-832-11 CARBON 1.1K 5% 1/4W
R917 = 1-249-422-11 CARBON 2.7K 5% 1/4W
R918 = 1-247-828-11 CARBON 750 5% 1/4W
R919 1-249-410-11 CARBON 270 =5% 1/4W
R920 = 1-249-441-11 CARBON 100K 5% 1/4W
R921 1-249-419-11 CARBON 1.5K 5% 1/48
R923 1-247-891-00 CARBON 330K 5% 1/4W
R931 1-249-425-11 CARBON 4.7K 5% 1/4W
R932 1-249-425-11 CARBON 4.7K 5% 1/4W
R933 = 1-249-425-11 CARBON 4.7K 5% 1/4W
R934 1-249-421-11 CARBON 2.2K 5% 1/4W
R935 1-247-836-11 CARBON 1.6K 5% 1/4W
R936 © 1-247-832-11 CARBON 1.1K 5% 1/4W
R937. 1-249-422-11 CARBON 2.7K 5% 1/4W
R938 = 1-247-828-11 CARBON 750 5% 1/4W
R939 = 1-249-410-11 CARBON 270 5% 8 1/4¥
R940 =: 1-249-441-11 CARBON 100K 5% 1/48
R941 1-249-419-11 CARBON 1.5K 5% 1/4#
R943. 1-247-891-00 CARBON 330K 5% 1/48
R951 = 1-249-417-11 CARBON 1K 5% 1/4W
R952. 1-249-417-11 CARBON 1K 5% 1/4W
R953: 1-249-417-11 CARBON 1K 5% 1/4W
< CRYSTAL >
X351 1-579-314-11 VIBRATOR, CRYSTAL (22. SMHz)
X355 1-579-233-11 VIBRATOR, CERAMIC (5MHz)
FQGIOOIOR IOI IOI OID BOI IOI IOIO IG FO IOI IOI OIE IR I III I AO
* 1-641-571-11 POWER TRANSFORMER BOARD
2 doioR oto do ak
< CAPACITOR >
C701 = 1-164-159-11 CERAMIC 0. luF 50V
C702 = 1-164-159-11 CERAMIC 0. 1uF 50V (US)
C703 =. 1-164-159-11 CERAMIC 0. 1uF 50V (US)
C704 = 1-164-159-11 CERAMIC 0. luF 50V (US)
< CONNECTOR >
* CN701 1-580-230-11 PIN, CONNECTOR (PC BOARD) 3P
* CN702 1-564-509-11 PLUG, CONNECTOR 6P
FEO OR OR ROO III IOI IO IIR RRR IO IIR RE OR
Ref.No. Part No.
* 1-641-568-11 REMOTE CONTROL VOL BOARD
So boii doiok
Description Remark
< CAPACITOR >
C501 = 1-164-159-11 CERAMIC 0. luF SOV
< CONNECTOR >
* CNSO1 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
* (NS02 1-568-955-11 PIN, CONNECTOR 6P
< VARIABLE RESISTOR >
RV501 1-238-776-11 RES, VAR, CARBON 10KX3
(LINE OUT PHONE LEVEL)
SII III I I III OI IOI IO IOI IO OIOIOI OI IOI ICID I IGRI OR OK
MISCELLANEOUS
2 ok kok
17 1-690-438-11 WIRE, FLAT TYPE (19 CORE)
AS8 1-575-651-21 CORD, POWER (AEP)
AS58 1-590-836-11 CORD, POWER (US)
63 1-575-002-11 WIRE, FLAT TYPE (22 CORE)
* 311 1-452-538-11 MAGNET
A\355 ~=—-8-848-144-11 PICK-UP, OPTICAL KSS-240A
358 = 1-575-001-11 WIRE, FLAT TYPE (12 CORE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
M201 1-541-632-11 MOTOR, DC (LOADING)
AXT701—-1-449-921-11 TRANSFORMER, POWER (US)
A\T701 ~~: 1-449-922-11 TRANSFORMER, POWER (AEP)
2A IOI OOO III IOI OOOO IOI OIG OID RIOR IOK
ACCESSORIES & PACKING MATERIALS
II OR RIO OI IOI OR a IOI ok
1-465-873-11 REMOTE COMMANDER (RM-D997)
1-558-271-11 CORD, CONNECTION
3-707-584-01 COVER, BATTERY
3-754-170-11 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, PORTUGUESE) (AEP)
3-754-170-21 MANUAL, INSTRUCTION (ENGLISH) (US)
3-754-170-41 MANUAL, INSTRUCTION
(GERMAN, ITALIAN, DUTCH, SWEDISH) (AEP)
* 4-934-088-01 CUSHION
* 4-941-548-01 LABEL, CLASS 1 (AEP)
* 4-948-310-11 INDIVIDUAL CARTON
The components identified by
mark A\ or dotted tine with mark. |
A\ are critical for safety.
Replace only with part number
specified.
