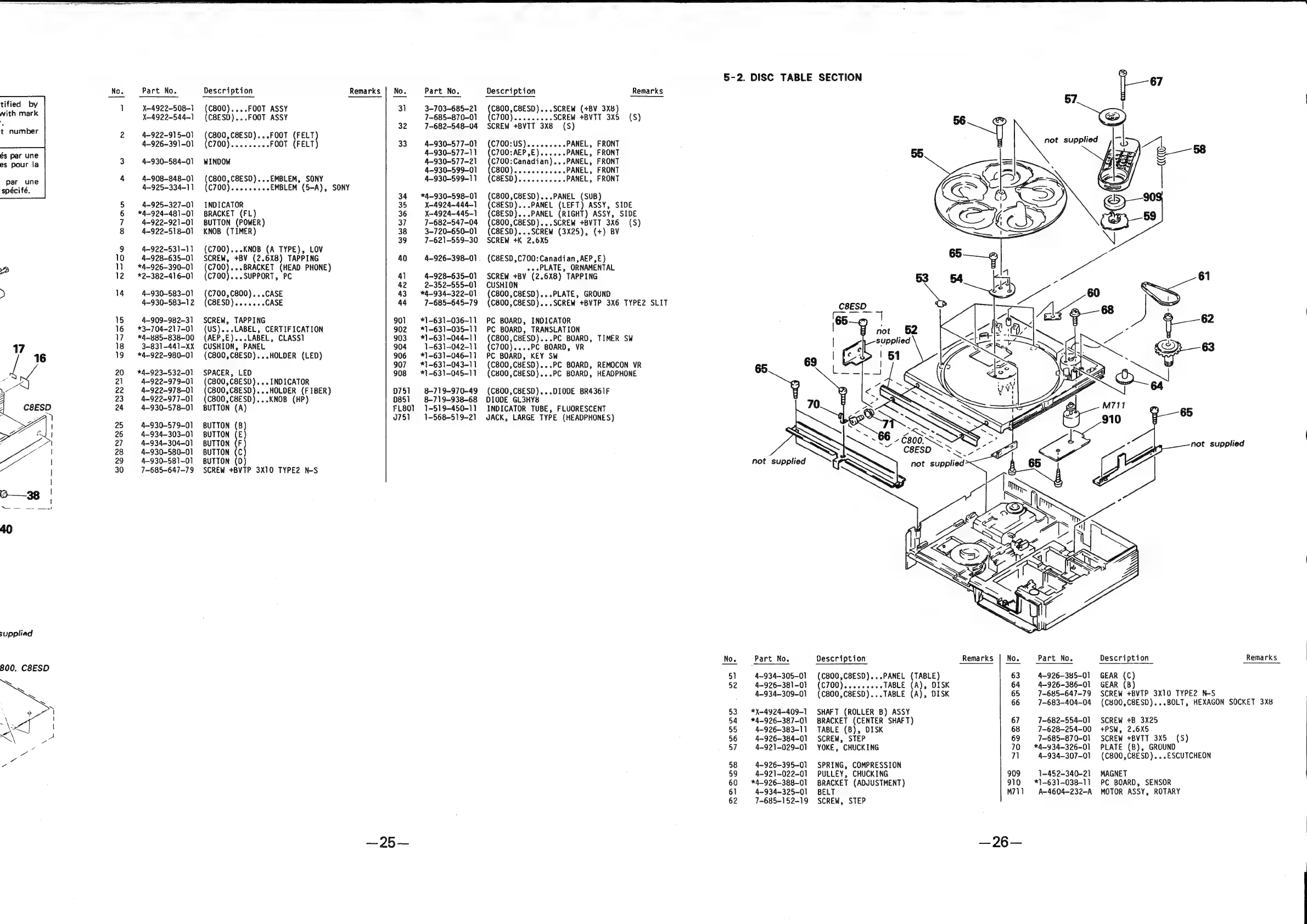

5-2. DISC TABLE SECTION 67
No. Part No.
Description
Remarks | No.
Part No.
Description
Remarks
= 57
poland 1 X-4922-508-1 (C800)....FOOT ASSY 31 3+-703-685-21 (C800,C8ESD)...SCREW (+BV 3X8) |
eee X-4922-544-1 (C8ESD)...FOOT ASSY 7-685-870-01 (C700)....... » SCREW +BVTT 3X5 (S) Cad)
Seca i: eee uneae Wa sce 32 7-682-548-04 SCREW +BVTT 3x8 (S) I
-922-915-01 (C800,C8ESD)...FOOT (FELT : Ne
4-926-391-01 (C700).........FOOT (FELT) 33 4-930-577-01 (C700:US).........PANEL, FRONT not supplied |
pa Une 4-930-577-11 (C700:AEP,E)......PANEL, FRONT ;
es
pour
la
3
4-930-584-01
WINDOW
4-930-577-21
(C700:Canadian)...PANEL,
FRONT
4-930-599-01 (C800).........+..PANEL, FRONT
Bae lune 4~-908-848-01 (eon ce See Le SONY 4-930-599-11 (C8ESD).......... PANEL, FRONT
spécifé 4-925-334-11 (C700).....++.sEMBLEM (5-A), SONY
: 34 *4-930-598-01 (C800,C8ESD)...PANEL (SUB)
5 4-925-327-01 INDICATOR 35 X-4924-444-1 (C8ESD)...PANEL (LEFT) ASSY, SIDE
6 *4-924-481-01 BRACKET (FL) 36 X-4924-445-1 (C8ESD)...PANEL (RIGHT) ASSY, SIDE
7 4-922-921-01 BUTTON (POWER) 37 7-682-547-04 (C800,C8ESD)...SCREW +BVTT 3X6 (S)
8 4-922-518-01 KNOB (TIMER) 38 3+-720-650-01 (C8ESD)...SCREW (3X25), (+) BV
39 7-621-559-30 SCREW +K 2.6X5
9 4-922-531-11 (C700)...KNOB (A TYPE), LOV
10 4-928-635-01 SCREW, +BV (2.6X8) TAPPING 40 4-926-398-01. (C8ESD,C700:Canadian,AEP,£)
ey 11 *4-926-390-01 (C700)...BRACKET (HEAD PHONE) .» PLATE, ORNAMENTAL
12 *2-382-416-01 (C700)...SUPPORT, PC 41 4-928-635-01 SCREW +BV (2.6X8) TAPPING
42 2-352-555-01 CUSHION
) 14 4-930-583-01 (C700,C800)...CASE 43 *4-934-322-01 (C800,C8ESD)...PLATE, GROUND
4-930-583-12 (C8ESD).......CASE 44 7-685-645-79 (C800,C8ESD)...SCREW +BVTP 3X6 TYPEZ SLIT
15 4-909-982-31 SCREW, TAPPING 901 *1-631-036-11 PC BOARD, INDICATOR
16 *3-704-217-01 (US)...LABEL, CERTIFICATION 902 *1-631-035-11 PC BOARD, TRANSLATION
17 *4-885-838-00 (AEP,E)...LABEL, CLASS] 903 *1-631-044-11 (C800,C8ESD)...PC BOARD, TIMER SW
17 18 3-831-441-XX CUSHION, PANEL 904 1-631-042-11 (C700)....PC BOARD, VR
16 19 *4-922-980-01 (C800,C8ESD)...HOLDER (LED) 906 *1-631-046-11 PC BOARD, KEY SW
907 *1-631-043-11 (C800,CBESD)...PC BOARD, REMOCON VR
20 *4-923-532-01 SPACER, LED 908 *1-631-045-11 (C800,C8ESD)...PC BOARD, HEADPHONE
ee: 21 4-922-979-01 (C800,C8ESD)... INDICATOR
17 22 4-922-978-01 (C800,C8ESD)...HOLDER (FIBER) D751 8-719-970-49 (C800,C8ESD)...DIODE BR4361F
Z 23 4-922-977-01 (C800,C8ESD)...KNOB (HP) D851 8-719-938-68 DIODE GL3HY8
| C8ESD 24 4-930-578-01 BUTTON (A) FL801 1-519-450-11 INDICATOR TUBE, FLUORESCENT
: ) 0751 1-568-519-21 JACK, LARGE TYPE (HEADPHONES)
Sage i 25. 4-930-579-01 BUTTON (B)
Are 26 4-934-303-01 BUTTON (E) (
g “| 27. 4-934-304-01 BUTTON (F)
cs 28 4-930-580-01 BUTTON (C)
ye
29
4-930-581-01
BUTTON
(D)
not
supplied
30 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
O—38
40
|
supplied
No. Part No. Description Remarks | No. Part No. Description Remarks
800, C8ESD =n,
51 4-934-305-01 (C800,C8ESD)...PANEL (TABLE) 63 4~926-345-01 GEAR (C)
52 4-926-381-01 (C700).........TABLE (A), DISK 64 4-926-386-01 GEAR (B)
4-934-309-01 (C800,C8ESD)...TABLE (A), DISK 65 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
66 7-683-404-04 (C800,C8ESD)...BOLT, HEXAGON SOCKET 3X8
53 *X=-4924-409-1 SHAFT (ROLLER B) ASSY
54 *4-926-387-01 BRACKET (CENTER SHAFT) 67 7-682-554-01 SCREW +B 3X25
55 4—926-383-11 TABLE (B), DISK 68 7-628-254-00 +PSW, 2.6X5
56 4-926-384-01 SCREW, STEP 69 7-685-870-01 SCREW +BVTT 3X5 (S)
- 57 4-921-029-01 YOKE, CHUCKING 70 *4-934-326-01 PLATE (B), GROUND
Be.
71
4-934-307-01
(C800,C8ESD)...ESCUTCHEON
- 58 4-926-395-01 SPRING, COMPRESSION ,
59 4-921-022-01 PULLEY, CHUCKING 909 1-452-340-21 MAGNET
60 *4-926-388-01 BRACKET (ADJUSTMENT) 910 *1-631-038-11 PC BOARD, SENSOR
61 4-934-325-01 BELT M711 A-4604-232-A MOTOR ASSY, ROTARY
62 7-685-152-19 SCREW, STEP
