Sony CDP-CX225 - 3-4. Mechanism Deck Assembly

— 10 —

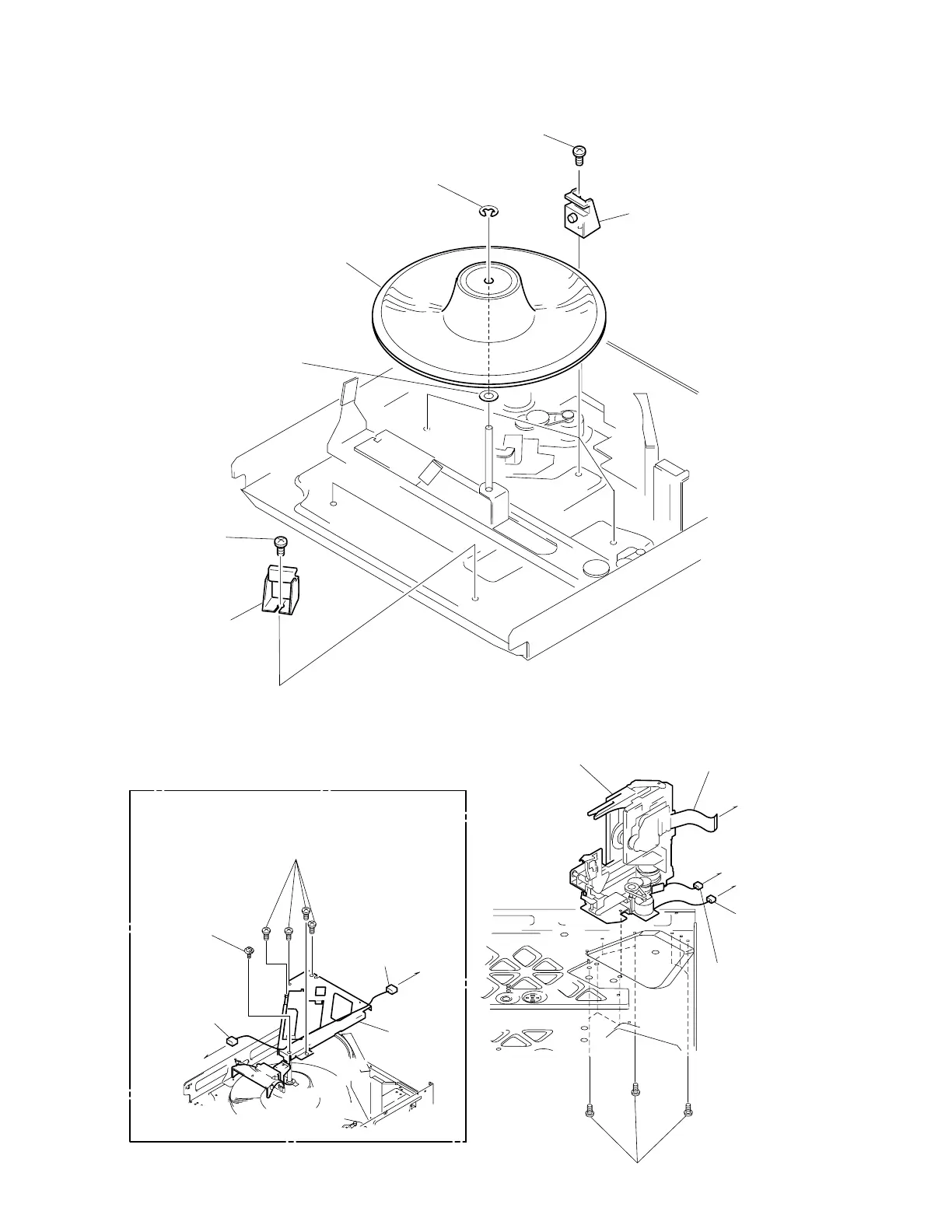

3-3. TABLE ASSEMBLY
1 Stop ring (E type)
2 Two screws
(BVTT3x6)
7 Washer
6 Table assembly
3 Two holder assemblies
4 Three screws (BVTT3x6)
5 Three holder assemblies
3-4. MECHANISM DECK ASSEMBLY
1 Four screws (BVTT3x6)
3 Connector
(CN303)
5 Guide
assembly
Jack
board
4 Connector
(CN308)
2 Screw
(BVTT3x6)
Illumination
board
6 Flat type wire
(23core) (CN303)
9 Nine screws (BVTT3x8)
!º Mechanism deck
Main board
7 Connector
(CN304)
Main board
Jack board
8 Connector (CN504)
