Sony CDP-CX225 - Page 2

– 2 –

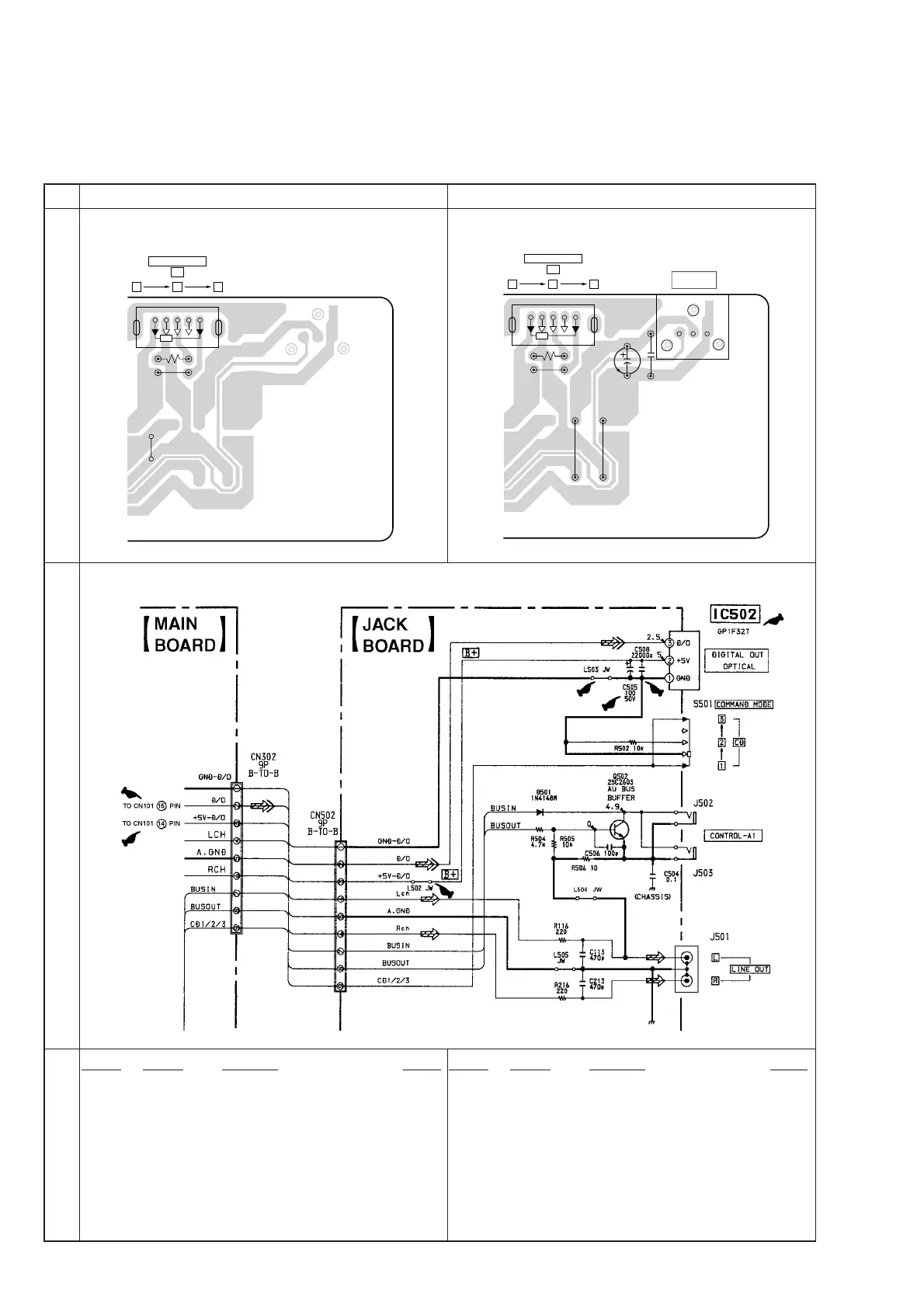

DIFFERENCE TABLE
[JACK BOARD]
! : Different portion
Page CDP-CX200 CDP-CX225
41
R502
JW504
JW505
1 2 3
S501
COMMAND MODE
CD
Location : A–B, 14–15
46
Location : A–E, 28–34
58
Ref. No. Part No. Description Remark
*** JACK BOARD ***
< CAPACITOR >
not used
not used
< IC >
not used
Ref. No. Part No. Description Remark
*** JACK BOARD ***
< CAPACITOR >
C505 1-126-052-11 ELECT 100uF 20% 50V
C508 1-161-494-00 CERAMIC 0.022uF 30% 25V
< IC >
IC502 8-749-921-12 IC GP1F32T (OPTICAL DIGITAL OUT)
R502
JW504
1 2 3
S501
COMMAND MODE
CD
IC502
DIGITAL OUT
OPTICAL
C508
L502 JW
L503 JW
^
$
$
#
#
C508
