Sony CDP-EX77 - Front Panel Section Disassembly

– 10 –

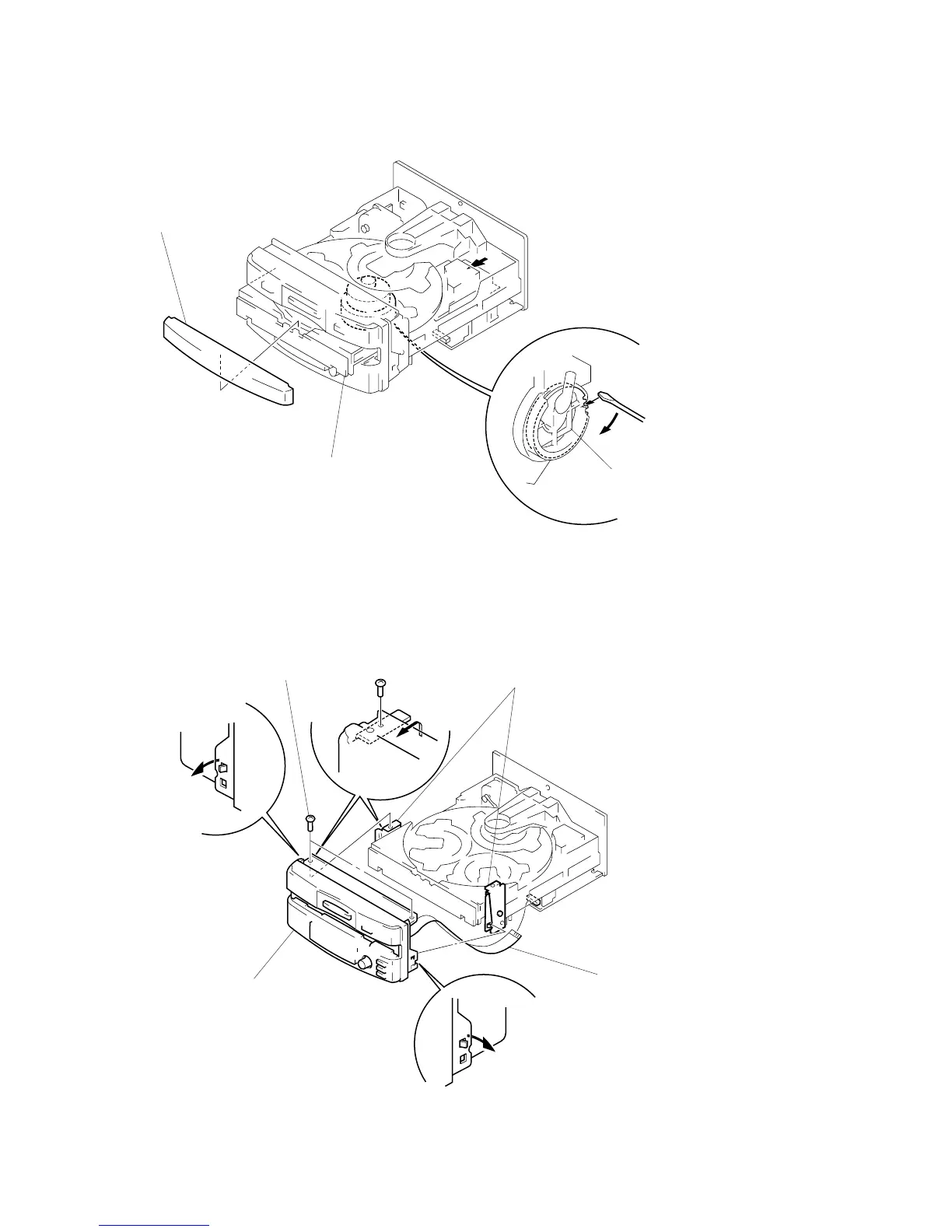

LOADING PANEL
3 loading panel
2 Pull the tray (slide).
1 Rotate the BU cam ass’y
to direction of the arrow
A .
BU cam ass’y
A
FRONT PANEL SECTION
1 flat wire (29 core)
(CN305)
2 two screws
(BV3
× 10)
3 two bosses
4 claw
4 claw
5 front panel
section
