Sony CDP-EX77 - Disassembly Procedure; Case, Chassis, Loading Panel Disassembly

– 9 –
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
CASE, CHASSIS
(Page 9)
LOADING PANEL
(Page 10)
FRONT PANEL SECTION
(Page 10)
MAIN BOARD,
CD MECHANISM DECK
(Page 11)
BASE UNIT
(Page 11)
BD BOARD
(Page 13)
OPTICAL PICK-UP,
SLED MOTOR
(Page 13)
TRAY SECTION
(Page 12)

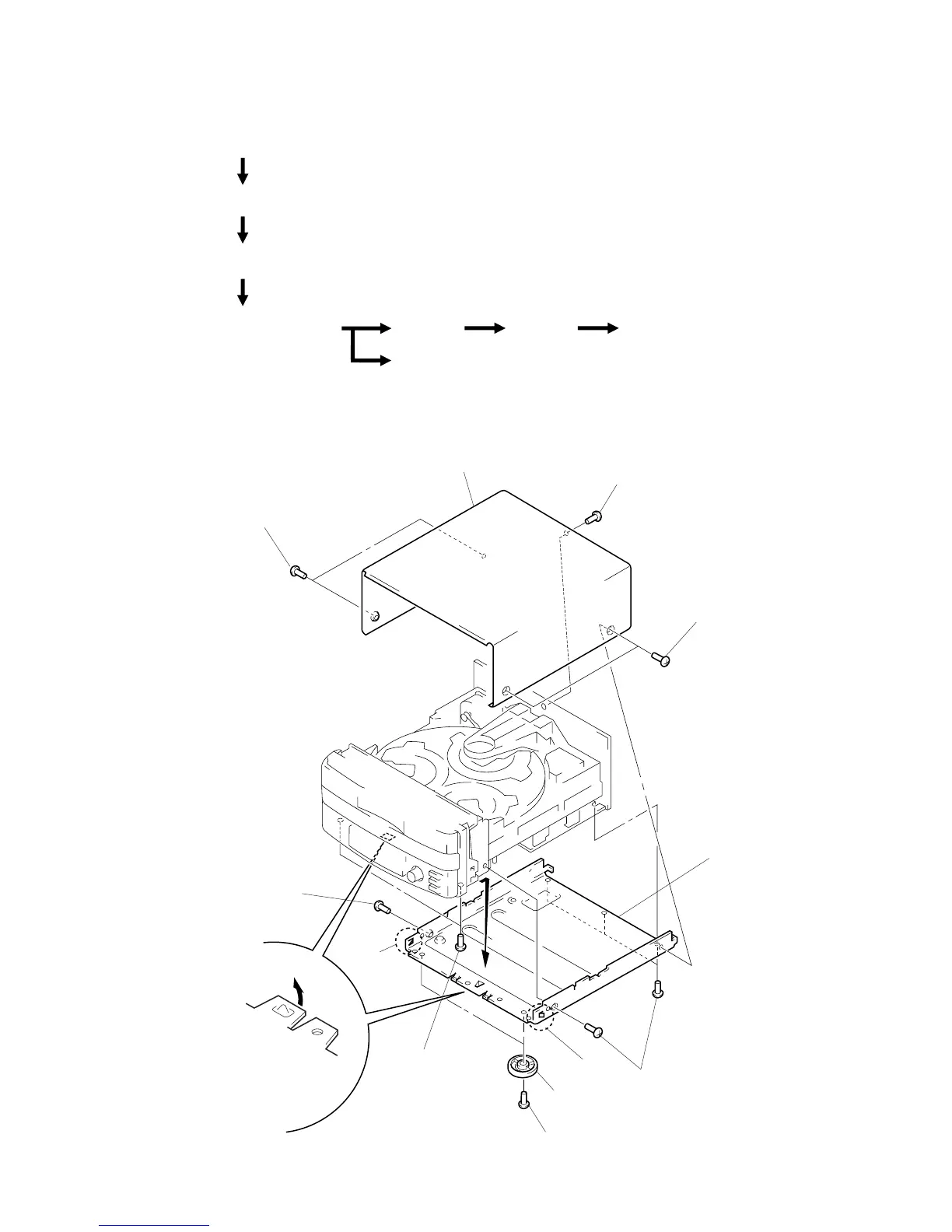

CASE, CHASSIS
Note: Follow the disassembly procedure in the numerical order given.
1 screw
(BVTT3
× 8)
2 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 case
4 two screws
(BV3
× 10)
5 two legs (F)
7 claw
6 four screws
(BV3
× 10)
6 screw
(BV3
× 10)
7 claw
6 screw
(BV3
× 10)
8 chassis
7 claw
