– 36 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list are given in the last of
the electrical parts list.
SECTION 6
EXPLODED VIEWS

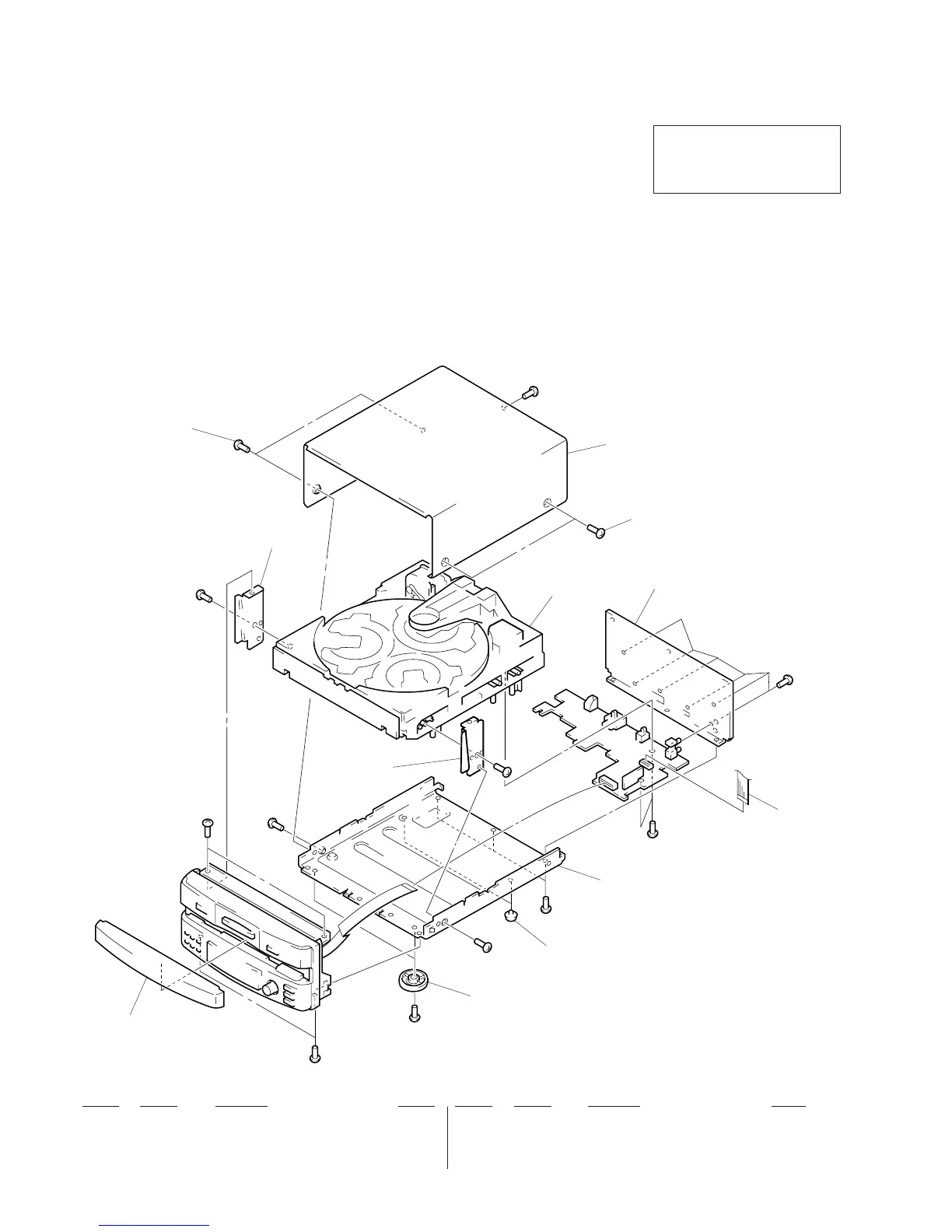

(1) CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-985-912-01 PANEL, LOADING
2 3-363-099-01 SCREW (CASE 3 TP2)
3 4-977-698-11 CASE
* 4 4-977-697-41 PANEL, BACK
* 5 A-4699-658-A MAIN BOARD, COMPLETE
6 4-965-822-01 FOOT
7 4-977-699-11 LEG (F)
8 1-777-862-11 WIRE (FLAT TYPE) (19 CORE)
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
3
2
4
2
1
7
6
8
#3
#2
not supplied
#2
#2
#2
#2
not supplied
#2
not supplied
CDM38A-5BD19
#2
#2
#2
#1
To Next Page
