Sony CDP-EX77 - BD Board, Optical Pick-up, Sled Motor Disassembly

– 13 –

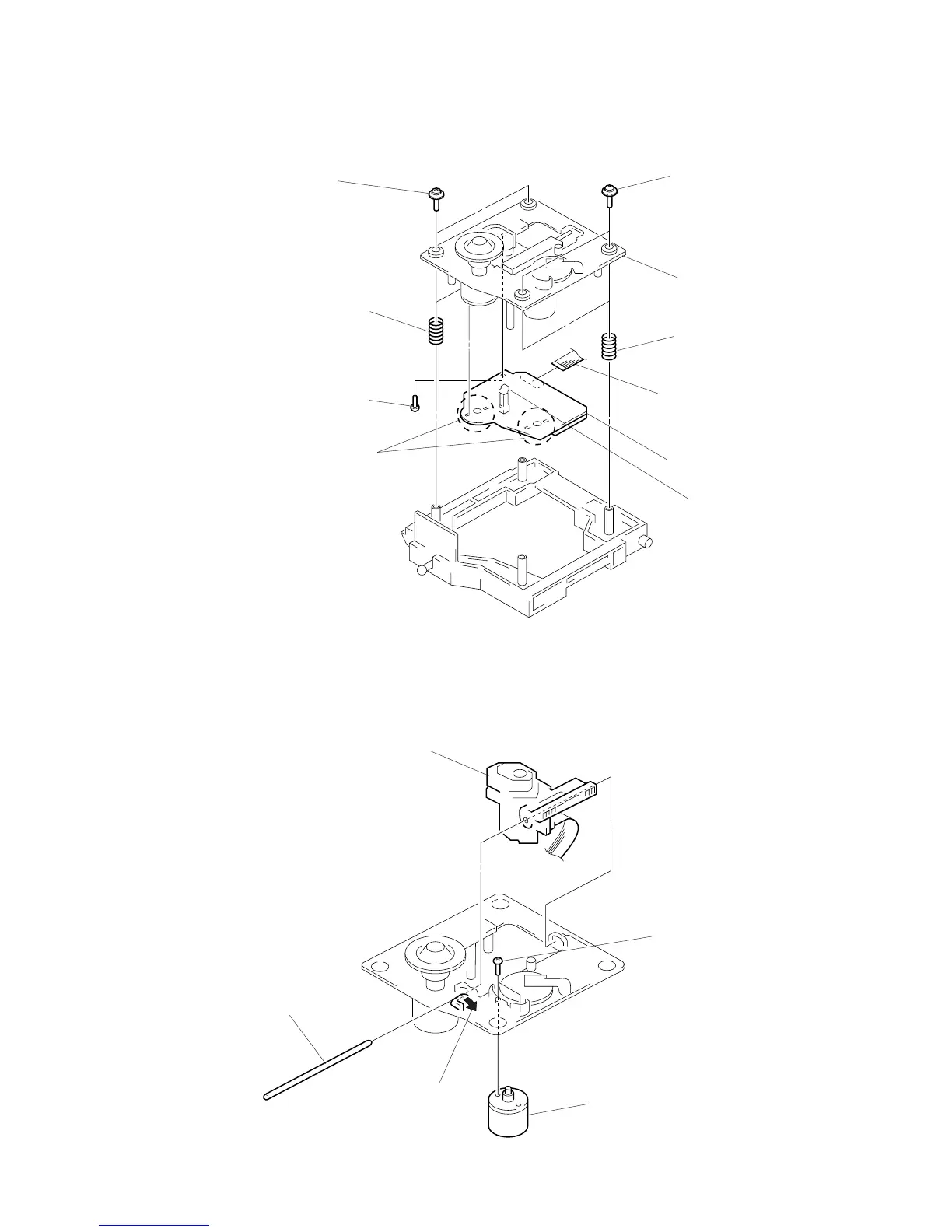

BD BOARD
OPTICAL PICK-UP, SLED MOTOR
4 flat wire
(CN101)
5 screw
(BVTP 2.6
× 8)
6 Removal
the four solders.
7 BD board
1 two screws
(PTPWH M2.6
× 6)
1 two screws
(PTPWH M2.6
× 6)
2 optical pick-up
section
3 two springs
limit switch
3 two springs
1 claw
2 sled shaft
3 optical pick-up
4 two screws
(P 2
× 3)
5 sled motor
