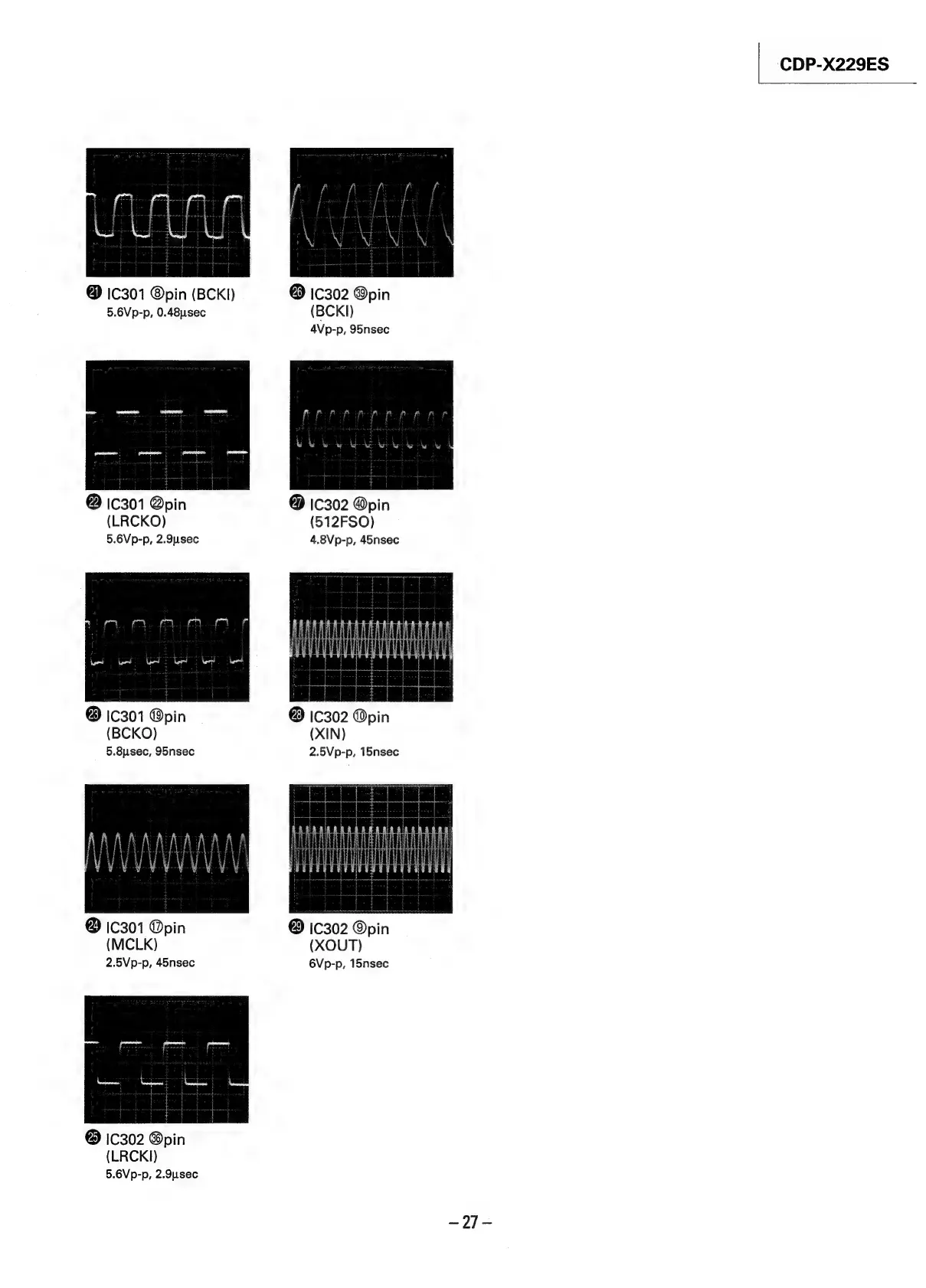

@ 1C301 @pin (BCKI) @® 1C302 @pin
5.6Vp-p, 0.48.sec (BCKI)
4Vp-p, 95nsec
eA dubetenietoree
® 1C301 @pin @ 10302 @pin
(LRCKO) (512FSO)
5.6Vp-p, 2.91.sec 4.8Vp-p, 45nsec
® 1C301 Opin @ 1C302 Opin
(BCKQ) (XIN)
5.8usec, 95nsec 2.5Vp-p, 15nsec
@ 1C301 Mpin ® C302 Opin
(MCLK) (XOUT)
2.5Vp-p, 45nsec 6Vp-p, 15nsec
® C302 ®pin
(LRCKI)
5.6Vp-p, 2.9usec
