Sony CDP-X229ES - Exploded Views and Parts Lists

CDP-X229ES |
NOTE:
* -XX, -X mean standardized parts, so they
may have some differences from the original
one.
* Color Indication of Appearance Parts
Example:
KNOB,BALANCE(WHITE)...(RED)
‘i T
Parts color Cabinet's color

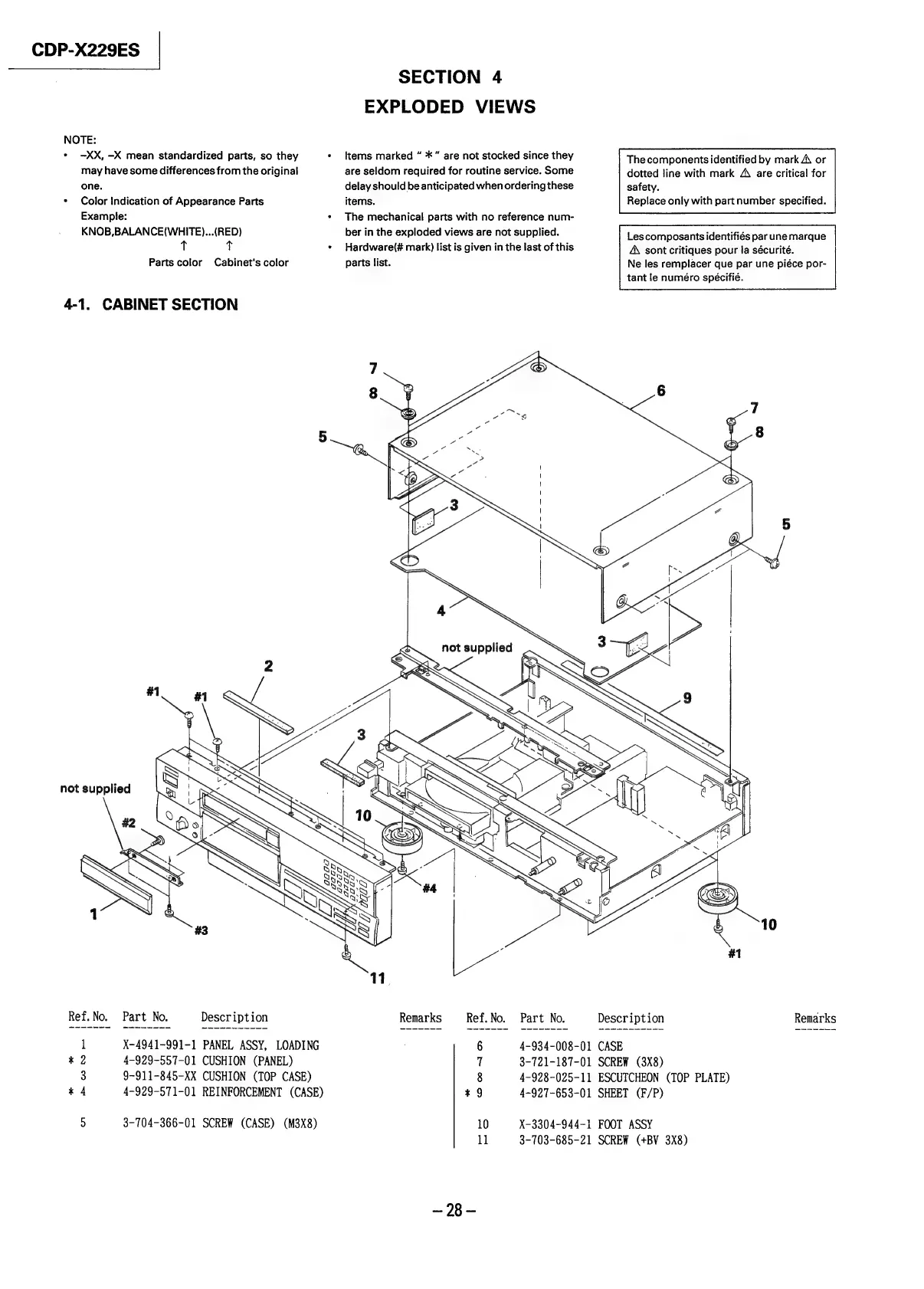

4-1. CABINET SECTION
SECTION 4
EXPLODED VIEWS
Items marked “ *" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The mechanical parts with no reference num-
ber in the exploded views are not supplied.
Hardware(# mark) list is given in the last of this
parts list.
The components identified by mark A or
dotted line with mark A\ are critical for
safety.
Replace only with part number specified.
Lescomposants identifiés par une marque
A\ sont critiques pour Ja sécurité.
Ne les remplacer que par une piéce por-
tant le numéro spécifié.
Part No.
Description
1 X-4941-991-1 PANEL ASSY, LOADING
2 4-929-557-01 CUSHION (PANEL)
3 9-911-845-XX CUSHION (TOP CASE)
4 4-929-571-01 REINFORCEMENT (CASE)
bf) 3-704-366-01 SCREW (CASE) (M3X8)
Ref. No.
Part No.
Remarks
4-934-008-01 CASE
Description
Remarks
4-928-025-11 ESCUTCHEON (TOP PLATE)
6
7 3-721-187-01 SCREW (3X8)
8
9
4-927-653-01 SHEET (F/P)
10 X-3304-944-1 FOOT ASSY
11 3-703-685-21 SCREW (+BV 3X8)
~ 28 —
