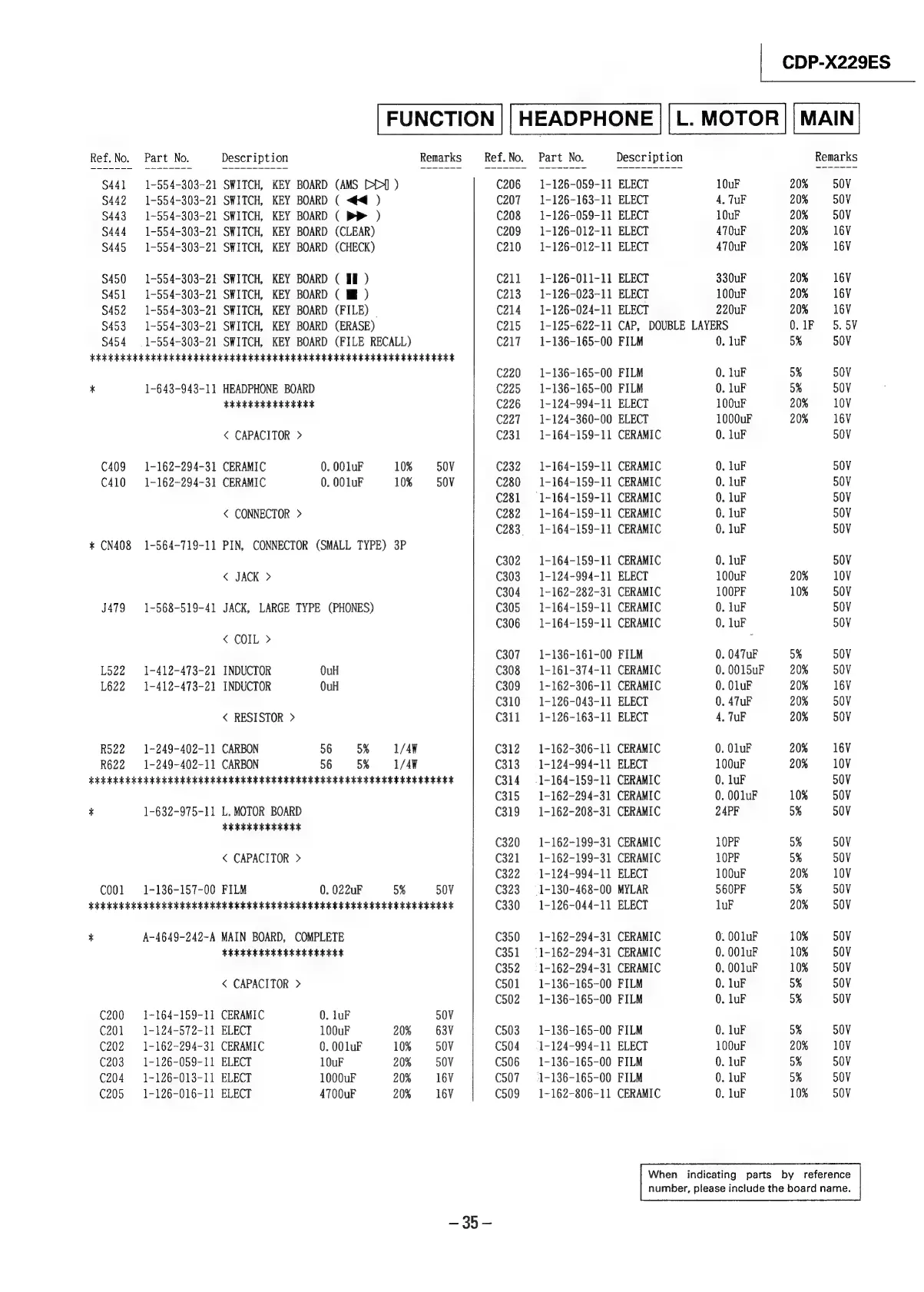

Sony CDP-X229ES - Page 25

| CDP-X229ES
Ref.No. Part No. Description Remarks Ref.No. Part No. Description Remarks
S441 1-554-303-21 SWITCH, KEY BOARD (AMS [>>] ) C206 = 1-126-059-11 ELECT 10uF 20% 50V
S442 1-554-303-21 SWITCH, KEY BOARD ( << ) C207 ~=1-126-163-11 ELECT 4, TuF 20% 50V
$443 1-554-303-21 SWITCH, KEY BOARD ( D> ) C208 1-126-059-11 ELECT 10uF 20% 50V
S444 1-554-303-21 SWITCH, KEY BOARD (CLEAR) C209 = 1-126-012-11 ELECT 470uF 20% 16V
S445 1-554-303-21 SWITCH, KEY BOARD (CHECK) C210 =1-126-012-11 ELECT 470uF 20% 16V
$450 1-554-303-21 SWITCH, KEY BOARD ( Hf ) C211 1-126-011-11 ELECT 330uF 20% 16V
S451 1-554-303-21 SWITCH, KEY BOARD ( Hf ) C213. = 1-126-023-11 ELECT 100uF 20% 16V
$452 1-554-303-21 SWITCH, KEY BOARD (FILE) — C214 = 1-126-024-11 ELECT 220uF 20% 16V
S453 1-554-303-21 SWITCH, KEY BOARD (ERASE) C215 1-125-622-11 CAP, DOUBLE LAYERS O.1F 5.5V
$454 = 1-554-303-21 SWITCH, KEY BOARD (FILE RECALL) C217 ~=—-1-136-165-00 FILM 0. luF 5% 50V
peteetetttetsstttseesstesstttessttsttttettetsetsstssess sets
C220 ~=1-136-165-00 FILM 0. luF 5% 50V
* 1-643-943-11 HEADPHONE BOARD C225 1-136-165-00 FILM 0. luF 5% 50V
KEKEREKAREKERES C226 =©1-124-994-11 ELECT 100uF 20% 10V
C227. ~=—1-124-360-00 ELECT 1000uF 20% 16V
< CAPACITOR > C231 = 1-164-159-11 CERAMIC 0. luF 50V
C409 1-162-294-31 CERAMIC 0. 00luF 10% 50V C232 = 1-164-159-11 CERAMIC 0. luF 50V
C410 =1-162-294-31 CERAMIC 0. 001luF 10% 50V C280 1-164-159-11 CERAMIC 0. luF 50V
C281 = 1-164-159-11 CERAMIC 0. luF 50V
< CONNECTOR > C282 1-164-159-11 CERAMIC 0. luF 50V
C283. 1-164-159-11 CERAMIC 0. luF 50V
* CN408 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P
C302 =1-164-159-11 CERAMIC Q. luF 50V
< JACK > C303 1-124-994-11 ELECT 100uF 20% 10V
C304 1-162-282-31 CERAMIC 100PF 10% 50V
J479 = 1-568-519-41 JACK, LARGE TYPE (PHONES) C305 1-164-159-11 CERAMIC 0. luF 50V
C306 = =1-164-159-11 CERAMIC 0. luF 50V
< COIL > .
C307 ~=1-136-161-00 FILM 0. 047uF 5% 50V
L522 1-412-473-21 INDUCTOR QuH C308 1-161-374-11 CERAMIC 0. 0015uF 20% 50V
L622 1-412-473-21 INDUCTOR QuH C309 1-162-306-11 CERAMIC 0. OluF 20% 16V
C310 = =1-126-043-11 ELECT 0. 47uF 20% 50V
< RESISTOR > C311 =1-126-163-11 ELECT 4, TuF 20% 50V
R522 1-249-402-11 CARBON 56 5% 1/44 C312 1-162-306-11 CERAMIC 0. OluF 20% 16V
R622 1-249-402-11 CARBON 56 BY, 1/4¥ C313 = 1-124-994-11 ELECT 100uF 20% 10V
peeettttettetcettsttstestsststseetsets secs ssstss sts sss esses 3 C314 = 1-164-159-11 CERAMIC 0. luF 50V
C315 = 1-162-294-31 CERAMIC 0. 00luF 10% 50V
k 1-632-975-11 L.MOTOR BOARD C319 =1-162-208-31 CERAMIC 24PF 5% 50V
KKRREKKREEKRE
C320 =1-162-199-31 CERAMIC 10PF 5% 50V
< CAPACITOR > C321 = =1~162-199-31 CERAMIC 10PF 5% 50V
C322. = 1-124-994-11 ELECT 100uF 20% 10V
C001 1-136-157-00 FILM 0. 022uF 5% 50V C323 =: 1-130-468-00 MYLAR 560PF 5% 50V
pesetteetesestettssetssstits ress ttetts eters sets sss sess eters 3 C330 = 1-126-044-11 ELECT luF 20% 50V
x A-4649-242-A MAIN BOARD, COMPLETE C350 = 1-162-294-31 CERAMIC 0. 001uF 10% 50V
KXKEKKAKKARKEKERE EEE C351 = 1-162-294-31 CERAMIC 0. 001luF 10% 50V
C352 = 1-162-294-31 CERAMIC 0. 00luF 10% 50V
< CAPACITOR > C501 1-136-165-00 FILM 0. luF 5% 50V
C502 1-136-165-00 FILM 0. luF 5% 50V
C200 1-164-159-11 CERAMIC Q. luF 50V
C201 1-124-572-11 ELECT 100uF 20% 63V C503 =1-136-165-00 FILM 0. luF 5% 50V
C202 1-162-294-31 CERAMIC 0. 001uF 10% 50V C504 =: 1-124-994-11 ELECT 100uF 20% 10V
C203 1-126-059-11 ELECT 10uF 20% 50V C506 =1-136-165-00 FILM 0. luF 5% 50V
C204 1-126-013-11 ELECT 1000uF 20% 16V C507 =: 1-136-165-00 FILM 0. luF 5% 50V
C205 1-126-016-11 ELECT 4700uF 20% 16V C509 1-162-806-11 CERAMIC 0. luF 10% 50V
When indicating parts by reference
number, please include the board name.
— 35 -
