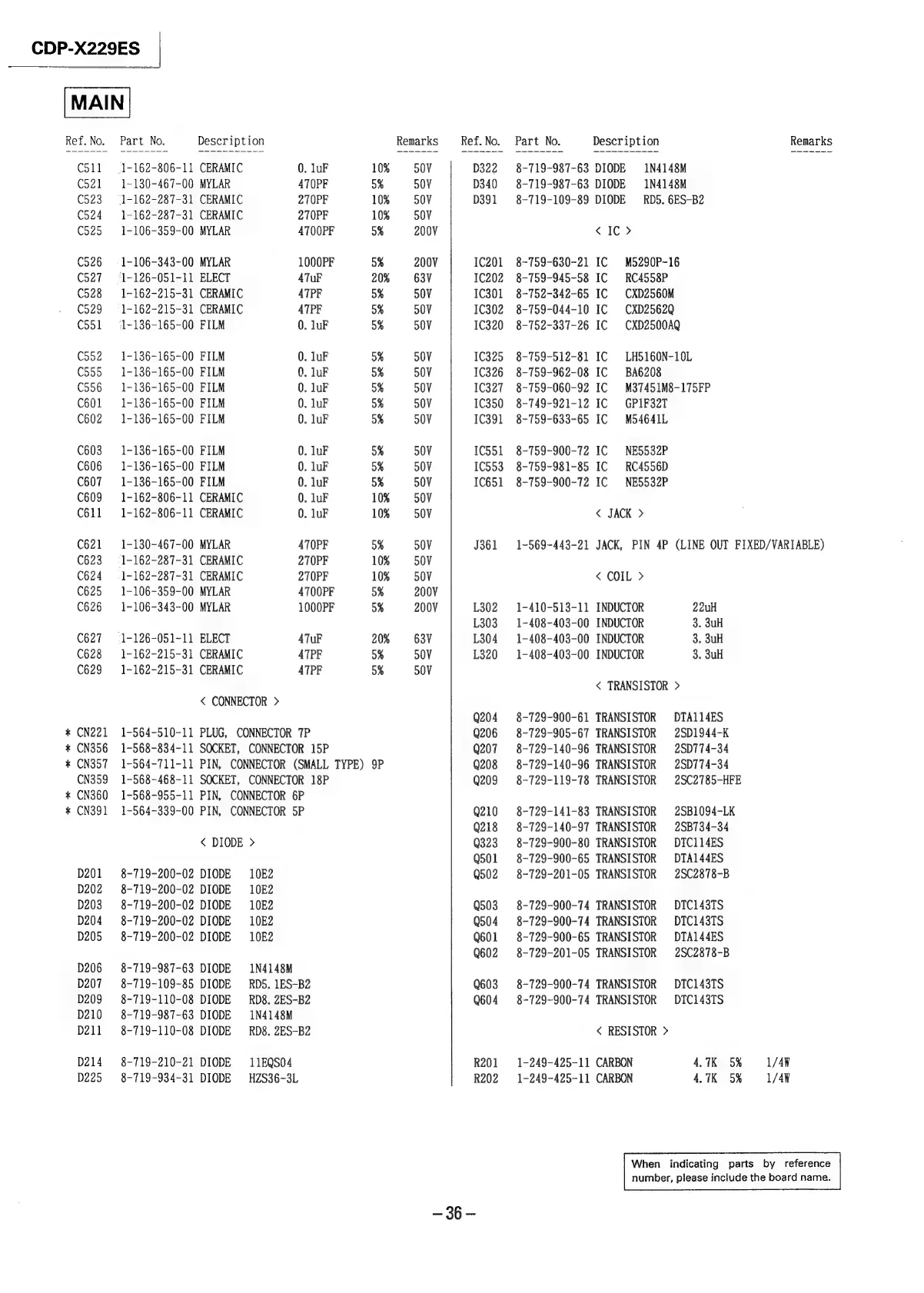

Sony CDP-X229ES - Page 26

CDP-X229ES |
Ref.No. Part No. Description Remarks Ref.No. Part No. Description Remarks
C511. =: 1-162-806-11 CERAMIC 0. luF 10% 50V D322 ~=8-719-987-63 DIODE 1N4148M
C521 = 1-130-467-00 MYLAR A4TOPF 5% 50V D340 8-719-987~63 DIODE 1N4148M
C523 =: 1-162-287-31 CERAMIC 270PF 10% 50V D391 8-719-109-89 DIODE RD5. 6ES-B2
C524 = 1-162-287-31 CERAMIC 270PF 10% 50V
C525 1-106-359-00 MYLAR 4700PF 5% 200V < IC >
C526 = 1-106-343-00 MYLAR 1000PF 5% 200V 1C201 8-759-630-21 IC M5290P-16
C527 =: 1-126-051-11 ELECT 47uF 20% 63V 1(202 8-759-945-58 IC RC4558P
C528 1-162-215-31 CERAMIC ATPF 5% 50V I1C301 8-752-342-65 IC CXD2560M
C529 = 1-162-215~31 CERAMIC ATPF 5% 50V 1C302 8-759-044-10 IC CXD2562Q
C551 =: 1-136-165-00 FILM 0. luF 5% 50V 1€320 8-752-337-26 IC CXD2500AQ
C552 =1-136-165-00 FILM 0. luF 5% 50V 1€325 8-759-512-81 IC LH5160N-10L
C555 = 1-136-165-00 FILM 0. luF 5% 50V 1C326 8-759-962-08 IC BA6208
C556 = 1-136-165-00 FILM 0. luF 5% 50V 1C327 8-759-060-92 IC M37451M8-175FP
C601 1-136-165-00 FILM 0. luF 5% 50V 1C350 8-749-921-12 IC GPIF32T
C602 = 1-136-165-00 FILM 0. luF 5% 50V 1C391 8-759-633-65 IC M54641L
C603 = 1-136-165~00 FILM 0. luF 5% 50V 1C551 8-759-900-72 IC NE5532P
C606 = 1-136-165-00 FILM 0. luF 5% 50V 1(553 8-759-981-85 IC RC4556D
C607 1-136-165-00 FILM 0. luF 5% 50V 1C651 8-759-900-72 IC NE5532P
C609 1-162-806-11 CERAMIC 0. luF 10% 50V
C611 1-162-806-11 CERAMIC 0. luF 10% 50V < JACK >
C621 1-130-467-00 MYLAR ATOPF 5% 50V J361 1-569-443-21 JACK, PIN 4P (LINE OUT FIXED/VARIABLE)
C623 =. 1-162-287-31 CERAMIC 270PF 10% 50V
C624 = 1-162-287-31 CERAMIC 270PF 10% 50V < COIL >
C625 1-106-359-00 MYLAR 4700PF 5% 200V
C626 ~=1-106-343-00 MYLAR 1000PF 5% 200V L302 1-410-513-11 INDUCTOR 22uH
L303 1-408-403-00 INDUCTOR 3. 3uH
C627. ~=—- 1-126-051~11 ELECT ATuF 20% 63V L304 1-408-403-00 INDUCTOR 3. 3uH
C628 1-162-215-31 CERAMIC 47PF 5% 50V L320 1-408-403-00 INDUCTOR 3. 3uH
C629 = 1-162-215-31 CERAMIC 47PF 5% 50V
< TRANSISTOR >
< CONNECTOR >
Q204 8-729-900-61 TRANSISTOR DTA114ES
* CN221 1-564-510-11 PLUG, CONNECTOR 7P Q206 8-729-905-67 TRANSISTOR 2SD1944-K
* CN356 1-568-834-11 SOCKET, CONNECTOR 15P Q207 8-729-140-96 TRANSISTOR 2SD774-34
* CN357 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P Q208 8-729-140-96 TRANSISTOR 2SD774-34
CN359 1-568-468-11 SOCKET, CONNECTOR 18P Q209 8-729-119-78 TRANSISTOR 2SC2785-HFE
* CN360 1-568-955-11 PIN, CONNECTOR 6P
* CN391 1-564-339-00 PIN, CONNECTOR 5P Q210 8-729-141-83 TRANSISTOR 2SB1094-LK
Q218 8-729-140-97 TRANSISTOR 2SB734-34
< DIODE > Q323 8-729-900-80 TRANSISTOR DTC114ES
Q501 8-729-900-65 TRANSISTOR DTA144ES
D201 8-719-200-02 DIODE 10E2 Q502 8-729-201-05 TRANSISTOR 2SC2878-B
D202 8-719-200-02 DIODE 10E2
D203 8-719-200-02 DIODE 10E2 Q503 8-729-900-74 TRANSISTOR DTC143TS
D204 8-719-200-02 DIODE 10E2 Q504 8-729-900-74 TRANSISTOR DTC143TS
D205 8-719-200-02 DIODE 10E2 Q601 8-729-900-65 TRANSISTOR DTA144ES
Q602 8-729-201-05 TRANSISTOR 2SC2878-B
D206 8-719-987-63 DIODE 1N4148M
D207 + 8-719-109-85 DIODE RDS. 1ES-B2 Q603 8-729-900-74 TRANSISTOR DTC143TS
D209 8-719-110-08 DIODE RD8. 2ES-B2 Q604 8-729-900-74 TRANSISTOR DTC143TS
D210 8-719-987-63 DIODE 1N4148M
D211 8-719-110-08 DIODE RD8. 2ES-B2 < RESISTOR >
D214 8-719-210-21 DIODE 11EQS04 R201 1-249-425-11 CARBON 4,7K 5% 1/4¥
D225 8-719-934-31 DIODE HZS36-3L R202 1-249-425-11 CARBON 4.7K 5% 1/44
When indicating parts by reference
number, please include the board name.
96s
