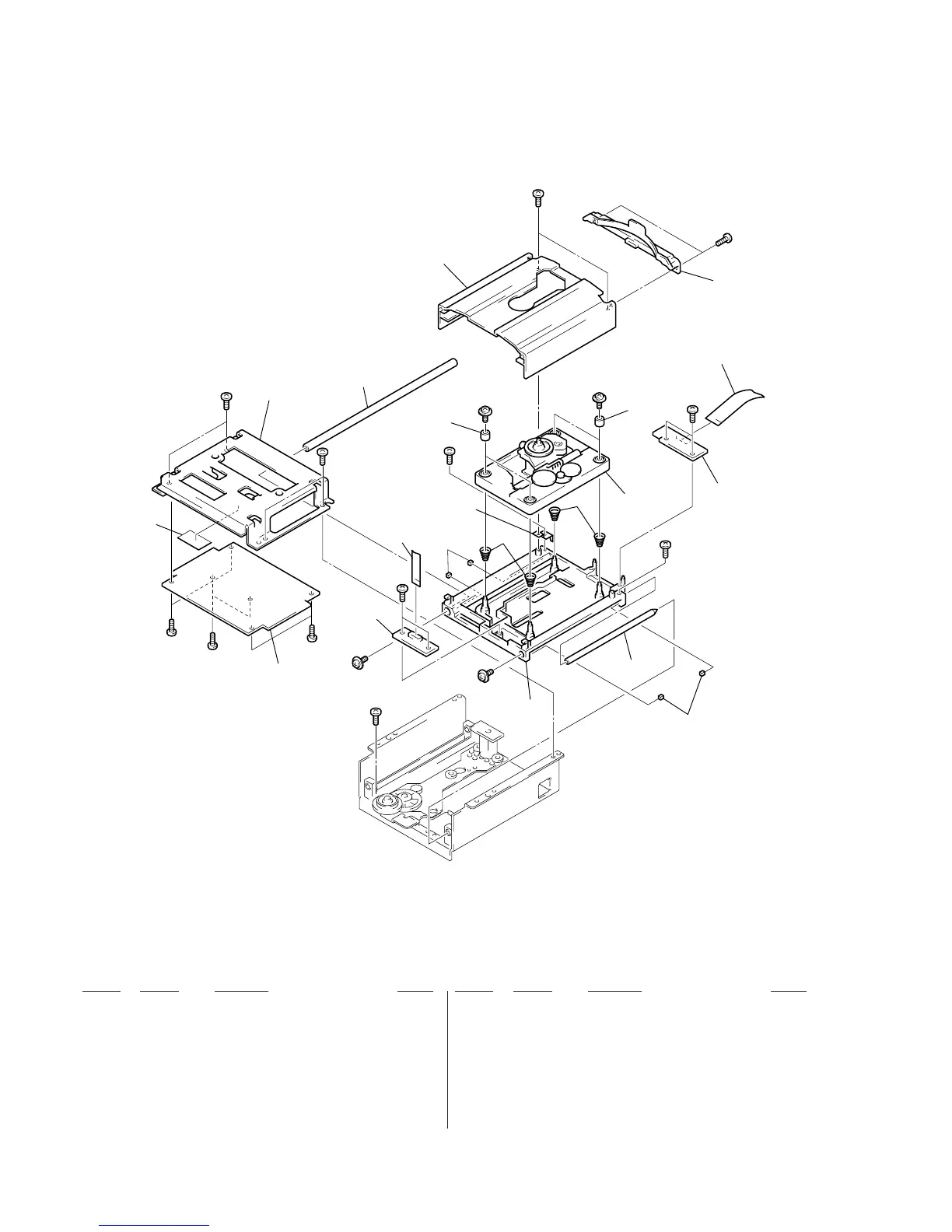

Sony CDP-XA555ES - Mechanism Deck Assembly - Part 1; Mechanism Deck Section 1 Exploded View

52
705
704
707
706
708
708
709
710
701
712
713
713
711
702
714
not supplied
not supplied
#19
#19
#11
#19
#19
#19
#9
#16
#16
#6
#6
#13
#6
#15
BU-12C
#10
#15
703
707
(5) MECHANISM DECK SECTION-1
(CDM32EB-12C) (BLACK)
(CDM32EN-12C) (GOLD)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
701 A-4724-901-A SERVO BOARD, COMPLETE
* 702 4-968-903-01 SHAFT (MAIN)
703 4-968-907-11 PANEL (DRAWER)
704 4-971-000-21 COVER (CD) (BLACK)
704 4-971-000-31 COVER (CD) (GOLD)
705 1-769-110-11 WIRE (FLAT TYPE) (26 CORE)
* 706 1-654-005-11 FLEX RELAY BOARD
707 4-927-634-01 HOLDER (SP)
708 4-948-375-01 SPRING (F), COIL
709 1-769-109-11 WIRE (FLAT TYPE) (12 CORE)
710 1-653-906-11 FL RELAY BOARD
* 711 4-968-904-01 SHAFT (SUB)
* 712 4-968-906-01 HOLDER, BU
713 4-925-315-31 DAMPER
714 4-222-658-01 SHEET, MAGNET
