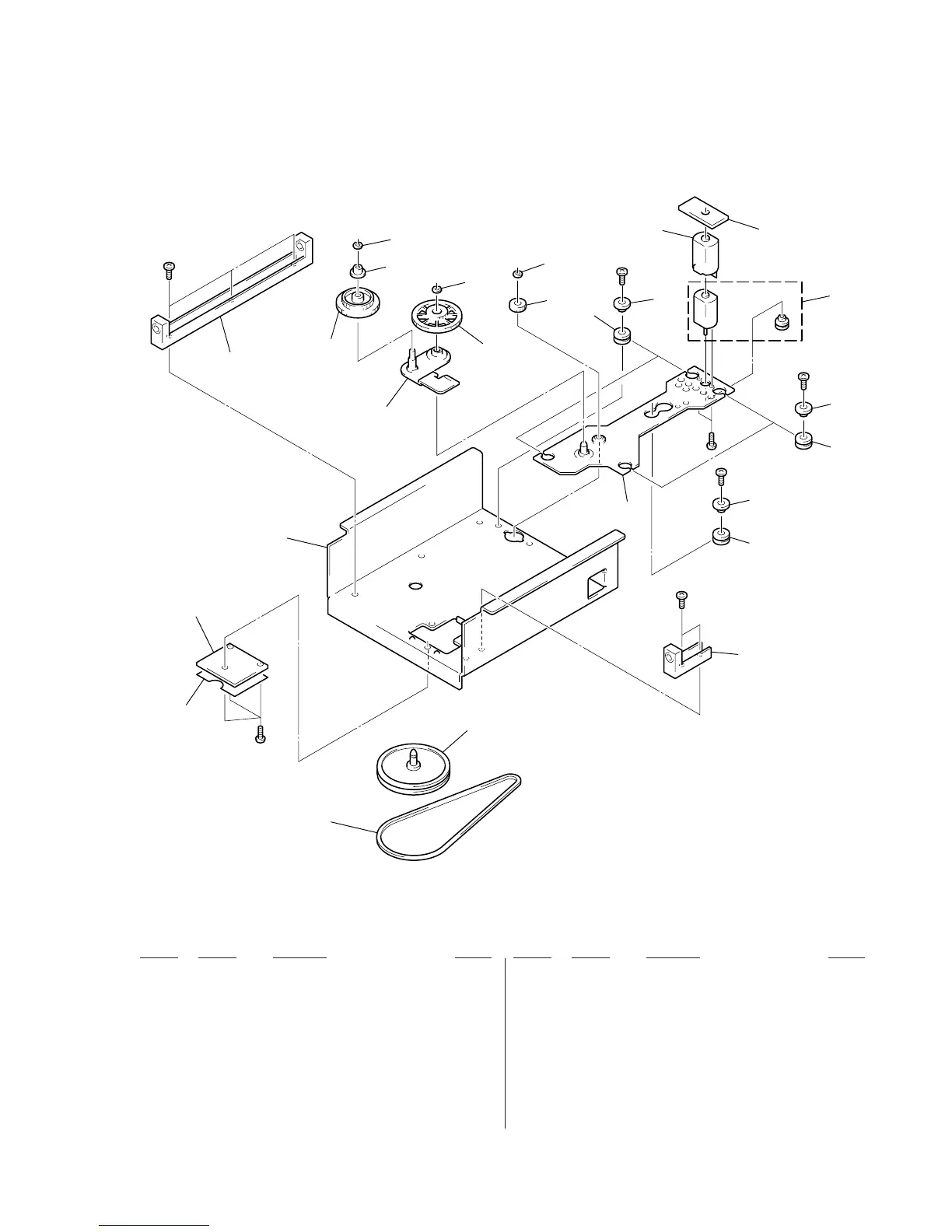

Sony CDP-XA555ES - Mechanism Deck Assembly - Part 2; Mechanism Deck Section 2 Exploded View

53
not supplied
M271
#15
#15
#15
#15
#12
#15
#19
770
762
763
761
760
759
760
766
759
755
754
769
752
756
757
768
760
758
753
751
767
759
764
(6) MECHANISM DECK SECTION-2
(CDM32EB-12C) (BLACK)
(CDM32EN-12C) (GOLD)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 751 4-968-901-01 BEARING (MAIN)
752 3-325-697-31 WASHER
753 4-968-900-01 GEAR (LAST)
754 3-363-191-01 WASHER (BA)
755 4-973-849-01 WASHER
756 4-968-899-01 GEAR (MIDLE)
757 4-968-898-01 GEAR (FIRST)
758 X-4945-207-1 BRACKET (LAST) ASSY
* 759 4-928-026-01 COLLAR (B)
* 760 4-888-798-11 BUSHING, RUBBER
* 761 4-968-902-01 BEARING (SUB)
762 1-653-905-11 LOADING SW BOARD
763 X-4945-209-1 PULLEY (FIRST) ASSY
764 4-968-905-01 BELT (CDM)
766 1-653-907-11 LOADING MOTOR BOARD
767 X-4945-205-1 SHAFT ASSY
768 4-971-894-01 DAMPER (MOTOR)
* 769 4-970-999-01 ROLLER (J RACK)
* 770 4-972-921-01 COVER (SW)
M271 X-4945-565-1 MOTOR ASSY
