Sony CDX-4250 - Front Panel Exploded View; Front Panel Section

– 41 –

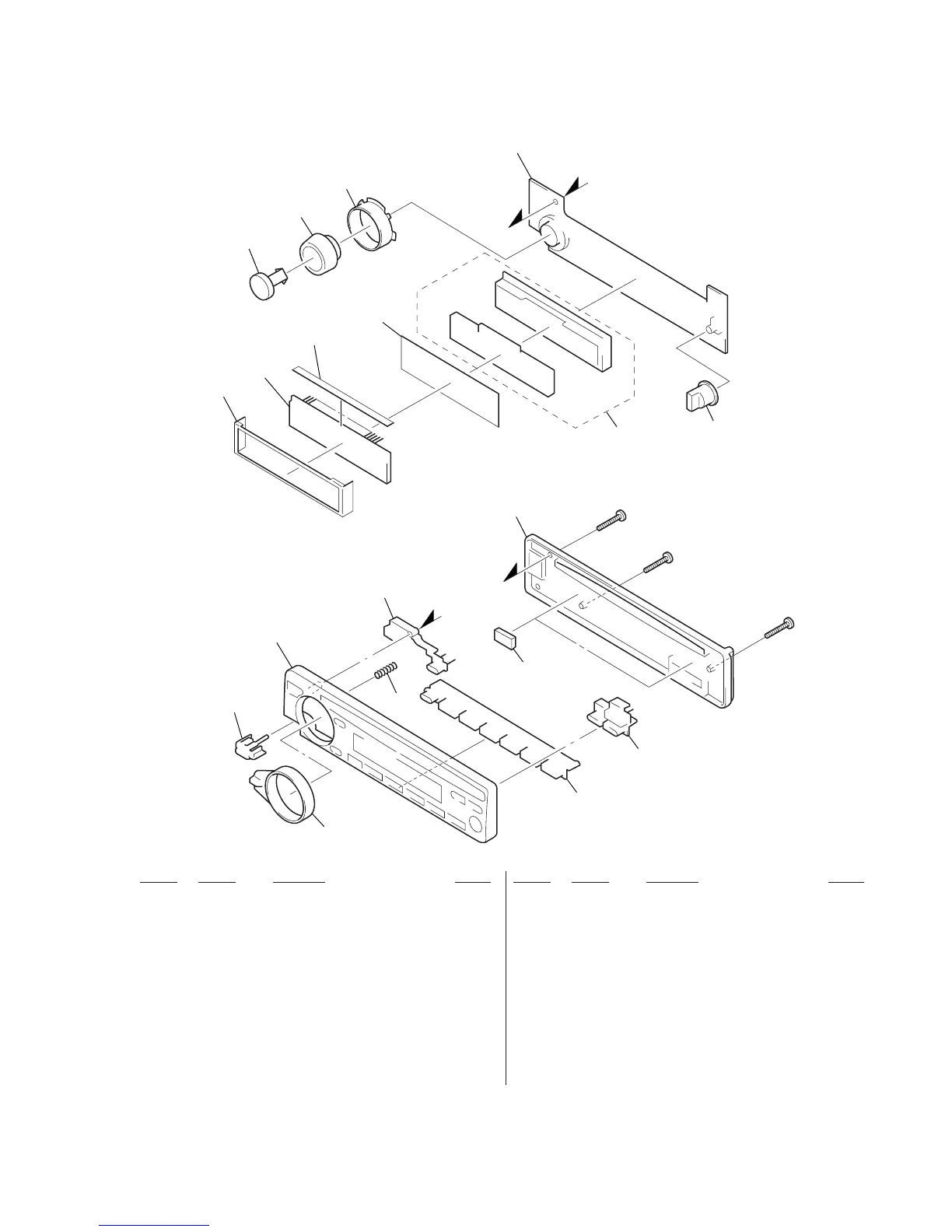

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
60 3-019-543-01 KNOB (D-BASS)
* 61 X-3376-745-1 HOLDER ASSY, LCD
* 62 3-019-557-01 PLATE (LCD), GROUND
63 3-019-558-01 SHEET (D) (LCD)
* 64 3-019-561-01 SHEET, LCD COLOR
65 3-030-847-01 PANEL, FRONT BACK
66 X-3376-778-1 PANEL (S) ASSY, FRONT (CDX-4250)
66 X-3377-100-1 PANEL (S) ASSY, FRONT (CDX-4500)
* 67 3-023-946-01 SHEET (H), BACK
LCD551 1-803-439-21 DISPLAY PANEL, LIQUID CRYSTAL
51 3-019-549-02 BUTTON (RELEASE)(CDX-4250)
51 3-019-549-22 BUTTON (RELEASE)(CDX-4500)
52 3-019-544-03 KNOB (SEEK/AMS)(CDX-4250)
52 3-019-544-23 KNOB (SEEK/AMS)(CDX-4500)
53 3-375-373-01 SPRING (RELEASE)
54 3-019-550-01 BUTTON (MODE/SOUND)
55 3-019-552-01 BUTTON (1-6)
56 3-030-873-11 BUTTON (CD EJECT)
57 3-025-315-02 BUTTON (SOURCE)
58 3-019-547-01 KNOB (VOL)
59 3-019-548-01 RING
57
58
59
62
63
64
61
60
65
54
66
53
51
52
56
#4
#4
#
4
LCD551
D
C
D
C
67
55
not supplied
(DISPLAY board)
