Sony CDX-540RF - Page 38

38

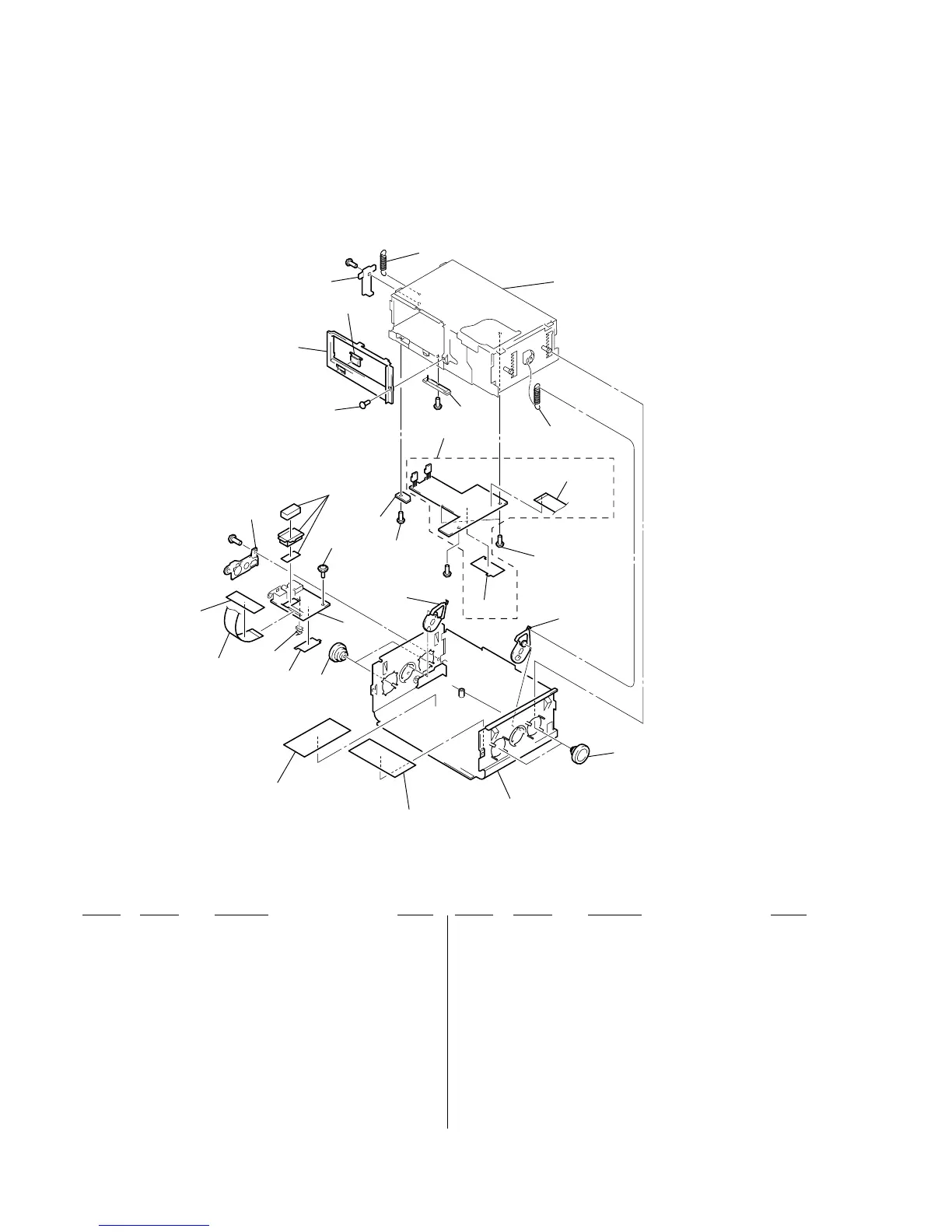

(2) GENERAL SECTION-2
66
66
62
65
63
64
#3
#3
RV202
69
57
58
56
53
59
71
60
60
#1
not
supplied
not supplied
not
supplied
54
52
51
51
55
not supplied
61
67
68
#3
MG-251A-137
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-047-852-01 DAMPER (T)
* 52 X-3378-122-1 CASE (LOWER.T) ASSY (540RF)
52 X-3378-123-1 CASE (LOWER.T) ASSY (545RF/545XRF)
* 53 A-3326-027-A FM BOARD, COMPLETE
* 54 3-046-989-01 PLATE (FM), SHIELD
55 3-225-783-01 SPRING (GROUND)
56 1-676-735-11 FM FLEXIBLE BOARD
57 3-042-999-11 COVER (FM CONNECTOR .T)
58 3-913-406-11 SCREW (GROUND)
59 X-3375-357-1 ARM (FLT) ASSY
60 3-935-636-11 SCREW (FP)
* 61 1-676-722-11 SW BOARD
62 3-042-244-11 SCREW (T)
63 3-041-218-21 ESCUTCHEON (T)
64 3-022-007-01 BUTTON (EJT) (Z)
* 65 3-022-012-01 HEAT SINK (T)
66 3-038-166-01 SPRING (FL), TENSION COIL
* 67 A-3283-115-A MAIN BOARD, COMPLETE
68 1-676-339-11 MAIN FLEXIBLE BOARD
* 69 3-046-988-01 PLATE (MAIN), SHIELD
71 X-3375-360-1 ARM (FRT) ASSY
RV202 1-227-137-11 RES, VAR, SLIDE 10K
(ELEVATOR HEIGHT SENSOR)
