SECTION 4
MECHANISM DECK ASSEMBLY
Note: Follow the assembly procedure in the numerical order given.

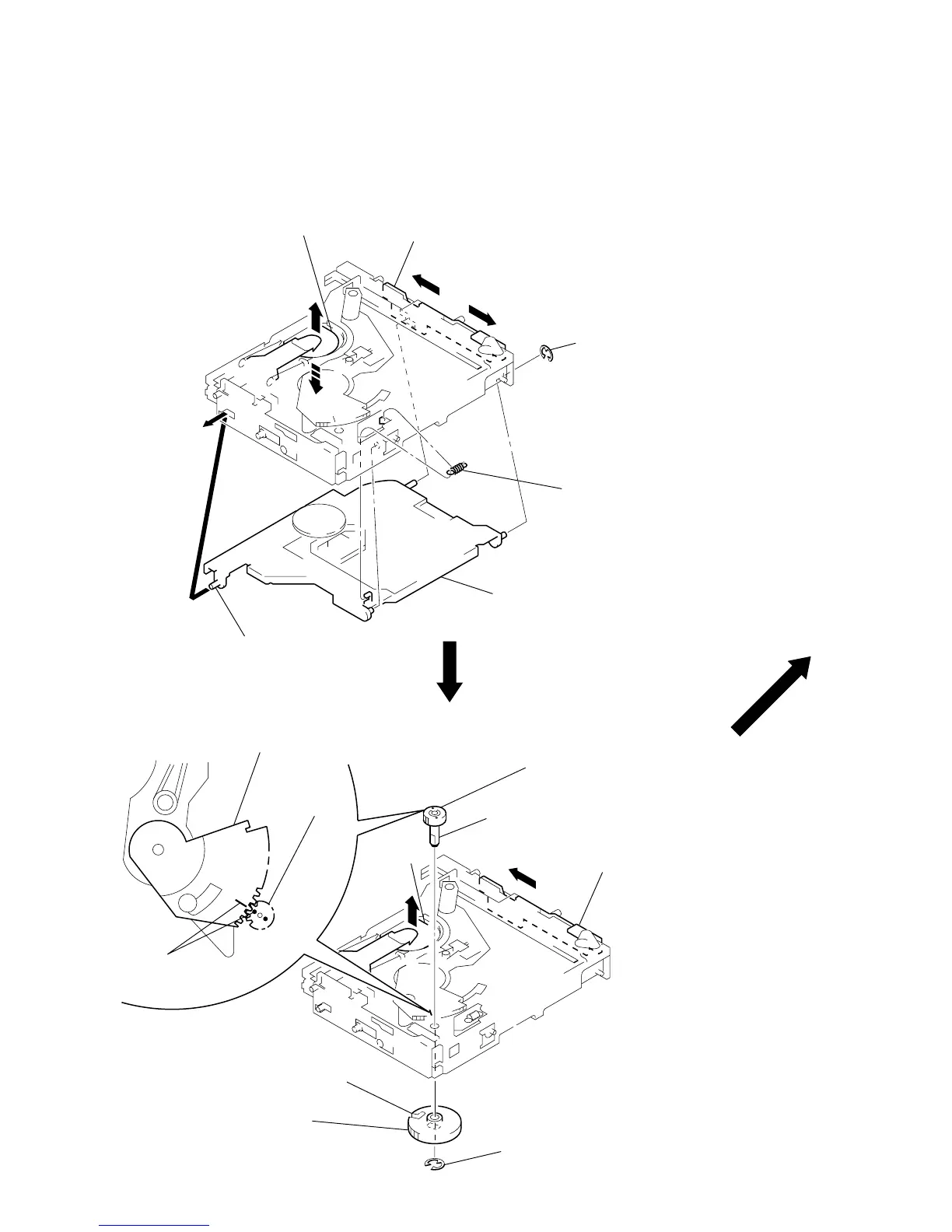

OPTICAL PICK-UP COMPLETE ASSY
GEAR (LOMINI)/(LOAD CAM) ASSY
chuck plate
1
Move the lever (LOCK 3A) in the direction of arrow
A
,
and return it a little in the direction of arrow
B
from the position where the chuck plate is moved
down to the lower limit.
A
B
3
stop ring 2.0 (E type
4
tension spring (DH)
2
optical pick-up complete assy
Note: Insert the shaft (A) first.
shaft (A)
gear (LOAD 2)
gear (LOMINI)
marking
Fig. A
chuck plate
2
Attach the gear (LOMINI) at the position
shown in Fig. A.
shaft (rotary prevention C)
1
Move the lever (LOCK 3A)
fully in the direction of arrow
B
to move the chuck plate up.
B
4
stop ring 1.5 (E type)
3
Attach the gear (LOAD CAM) assy
with its facing inside.
slit
To Next Page
