Sony CDX-540RF - Page 15

15

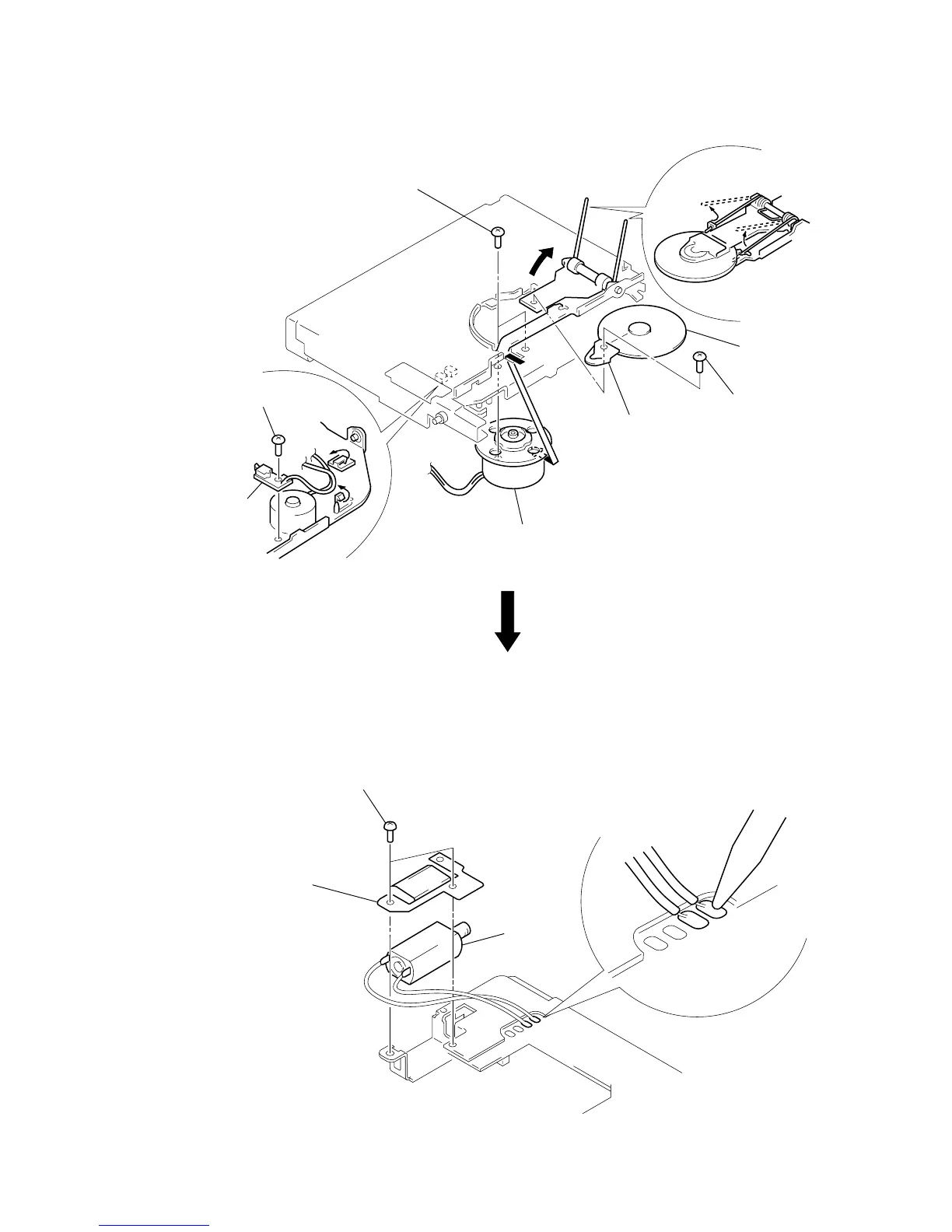

LSW BOARD, SPINDLE MOTOR (S) SUB ASSY (M102)
ELJ MOTOR ASSY (CHUCKING) (M103)
8 two precision screws
(P1.7
× 2.2)
7
3
spring (chucking)
6 retainer (disc
)
4 precision scre
w
(P2 × 2.2)
5 bracket (CP)
9 Remove the spindle motor (S) sub assy (M102)
in the direction of the arrow.
2 LSW board
1 precision screw
(P2
× 2.5)
2 two screws
(PTT2 × 4)
3 retainer (CHM)
4 ELJ motor
assy
(chucking)
(M103)
1 Remove two solders of
the chucking motor leads (M103).
