Sony CDX-540RF - Page 14

14

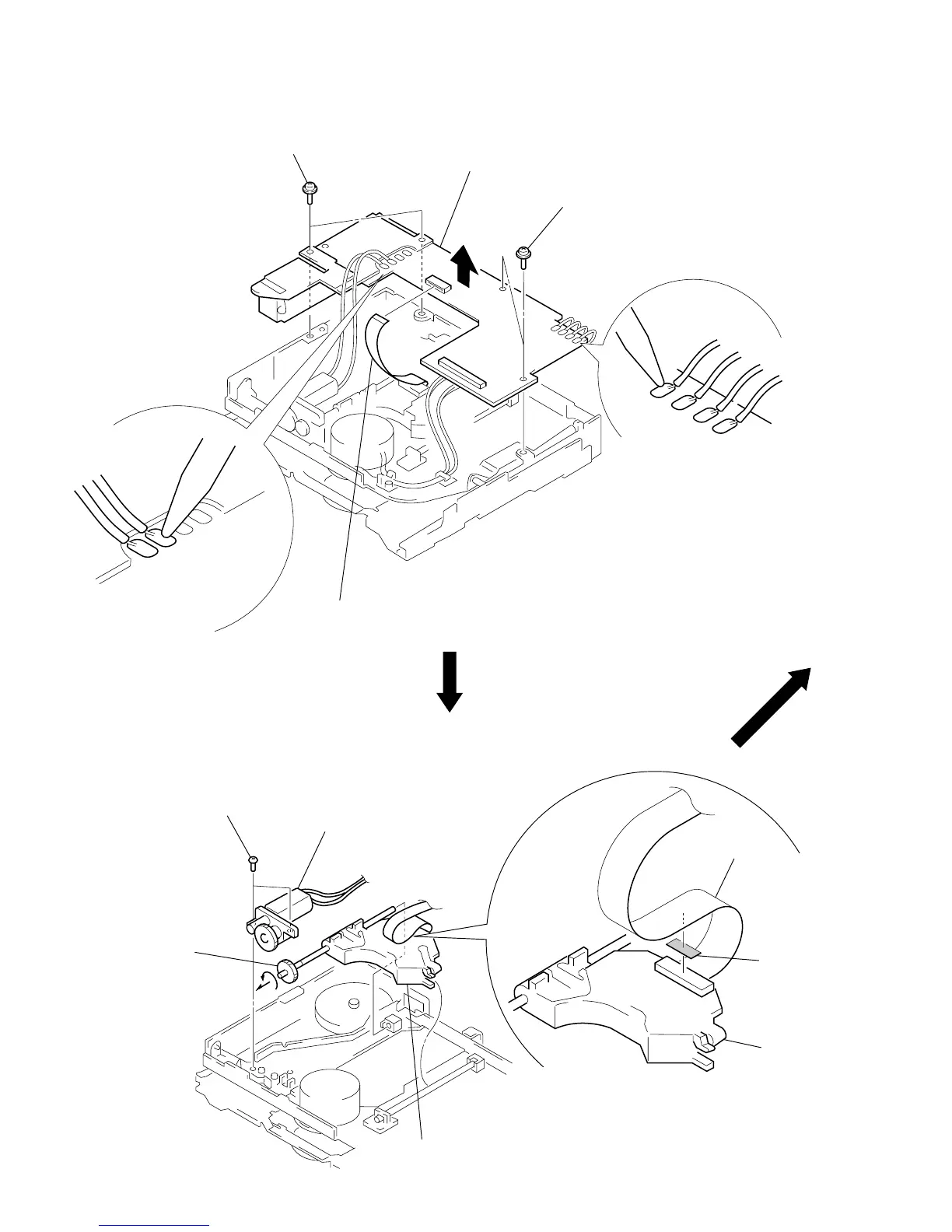

RF BOARD
SLED MOTOR ASSY (251) (M101), OPTICAL PICK-UP (KSS-720A)
3 two screws
(PS2
× 4)
3 two screws
(PS2
× 4)
2 Remove four solders
of the LSW board leads
and spindle motor leads (M102).
2 Remove two solders
of the sled motor leads
(M101).
1 OP flexible board (CN102).
4 RF board
1 two precision screws
(P2
× 3)
4 Turn shaft (feed) assy
in the direction
of the arrow,
then remove it.
2 sled motor assy (251)
(M101)
OP flexible board
adhesive
sheet
3 optical pick-up
(KSS-720A)
optical
pick-up
Note: After connecting OP flexible board,
fix it with adhesive sheet
to optical pick-up.
