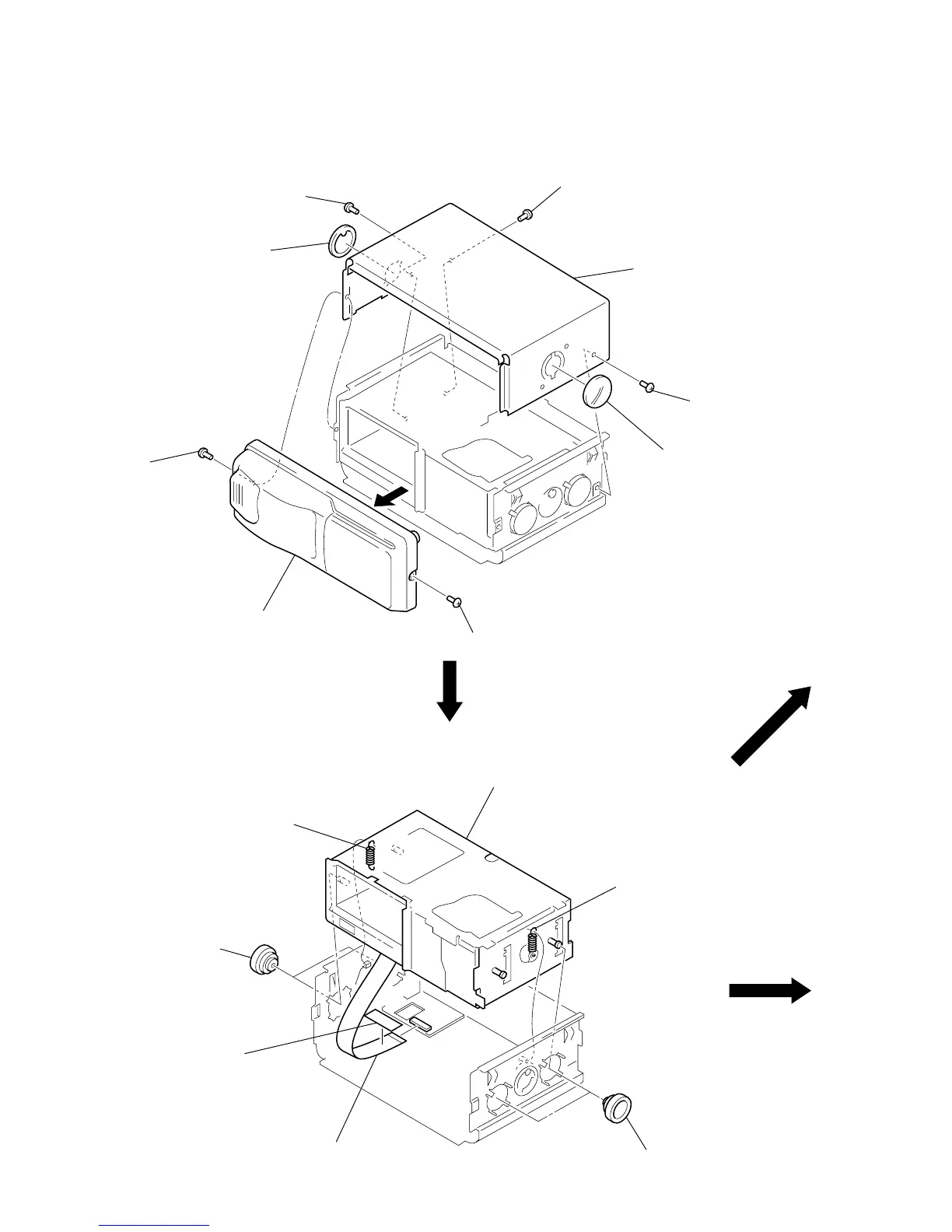

CASE (UPPER T), FRONT PANEL ASSY
MECHANISM DECK (MG-251A-137)
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
3 screw
(PTT2.6
× 6)
4 lever (FLT)
3 screw (PTT2.6 × 6)
3 screw (PTT2.6 × 6
)
1 screw (PTT2.6 × 6)
1 screw
(PTT2.6
× 6)
2 front panel assy
4 lever (FLT)
5 case (upper T)
1 two dampers (T)
1 two dampers (T)
3 FM flexible board
(CN701)
filament tape
2 tension coil spring (FL)
4 mechanism deck
(MG-251A-137)
2 tension coil spring (FL)
