Sony CDX-GT222 - 2 General; Location of Controls; Connections

5
CDX-GT121/GT220/GT222
SECTION 2
GENERAL
• LOCATION OF CONTROL
• CONNECTIONS
This section is extracted
from instruction manual.
6

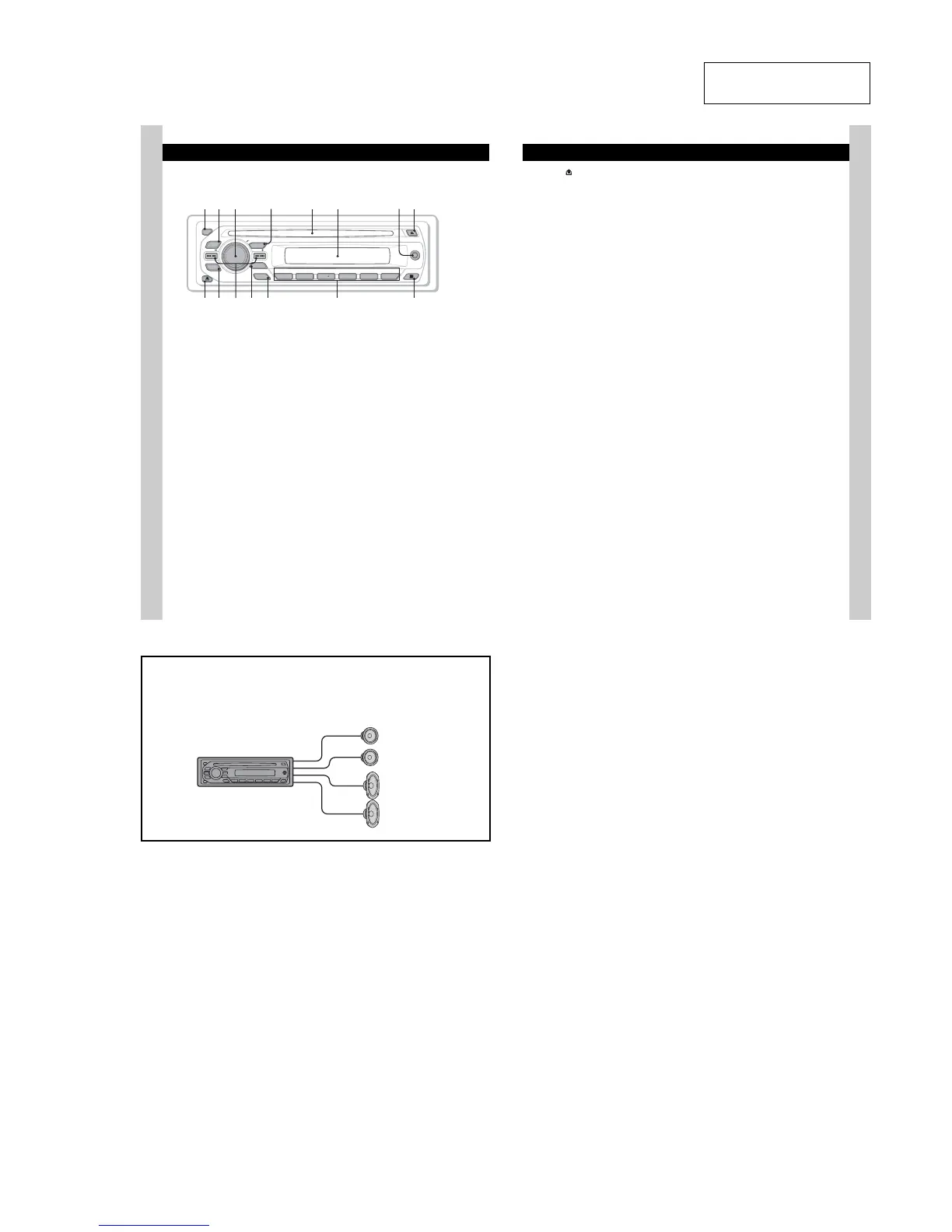

Location of controls and basic operations
Main unit
This section contains instructions on the location
of controls and basic operations.
For details, see the respective pages.
A OFF button
To power off; stop the source.
B EQ3 (equalizer) button page 10
To select an equalizer type (XPLOD,
VOCAL, EDGE, CRUISE, SPACE,
GRAVITY, CUSTOM or OFF).
C Volume control dial/select button
page 10
To adjust volume (rotate); select setup items
(press and rotate).
D SOURCE button
To power on; change the source (Radio/CD/
AUX).
E Disc slot
Insert the disc (label side up), playback
starts.
F Display window
G AUX input jack page 11
To connect a portable audio device.
H Z (eject) button
To eject the disc.
SEEK
SEEK
PAUSEREP SHUF
EQ3
DSPL
OFF
AF/TA
PTY
PUSH SELECT
1623 54
MODE
SOURCE
AUX
1
q
a
q
s
q
;
9
2
q
d
q
g
q
f
4 5 8673
7
I (front panel release) button page 4
J DSPL (display)/SCRL (scroll) button
(CDX-GT225C/GT222/GT220) page 8
To change display items (press); scroll the
display item (press and hold).
DSPL (display) button (CDX-GT121)
page 8
To change display items.
K SEEK –/+ buttons
CD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); reverse/fast-
forward a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
L MODE button page 8
To select the radio band (FM/MW/LW).
M AF (Alternative Frequencies)/
TA (Traffic Announcement)/
PTY (Program Type) button page 10
To set AF and TA (press); select PTY (press
and hold) in RDS.
N Number buttons
CD:
(1)/(2): ALBM –/+ (during MP3/WMA
playback) (CDX-GT225C/GT222/GT220)
To skip albums (press); skip albums
continuously (press and hold).
(3): REP page 8
(4): SHUF page 8
(6): PAU SE
To pause playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
O Receptor for the card remote
commander (CDX-GT225C/GT222/
GT220 only)
Connection example
Anschlussbeispiel
Exemple de raccordement
Esempio di collegamento
Voorbeeldaansluitingen
