CDX-GT35UW

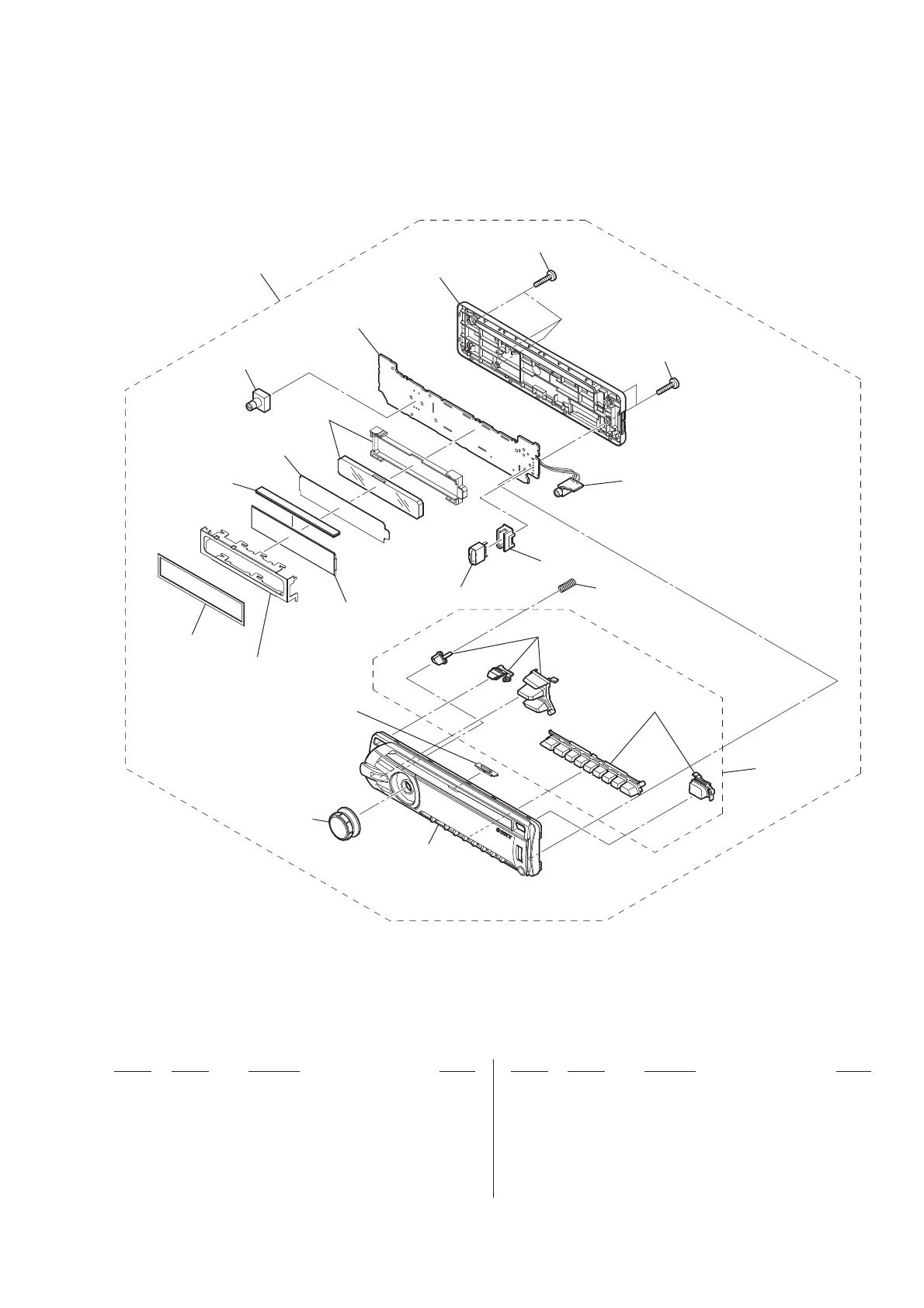

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-2342-501-1 BUTTON ASSY (S)
52 X-2548-955-1 PANEL (SV) ASSY, FRONT
53 X-2319-728-1 KNOB (VOL) (SV) ASSY
54 2-639-881-01 SPRING (RELEASE)
55 1-780-659-21 CONNECTOR (RUBBER)
56 4-157-873-02 ILLUMINATOR (LCD)
57 3-876-858-02 PANEL, BACK
58 3-250-543-21 SCREW (+B P-TITE M2)
59 A-1785-184-A PANEL COMPLETE ASSY, FRONT
CN902 1-820-858-21 CONNECTOR, USB (SOCKET) 4P (USB)
LCD901 1-802-991-11 DISPLAY PANEL, LIQUID CRYSTAL
RE901 1-479-902-32 ENCODER, ROTARY
(PUSH ENTER/SELECT,VOLUME)
LCD901
CN902
RE901
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(KEY board)
51
52
53
54
55
56
57
58
58
59
not supplied
(JACK board)
not supplied
